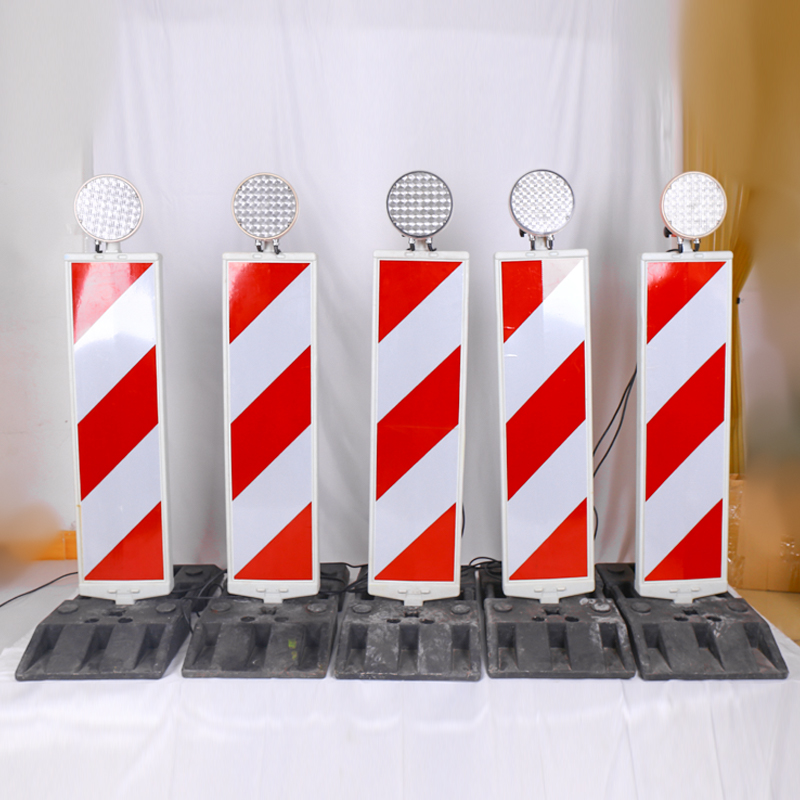

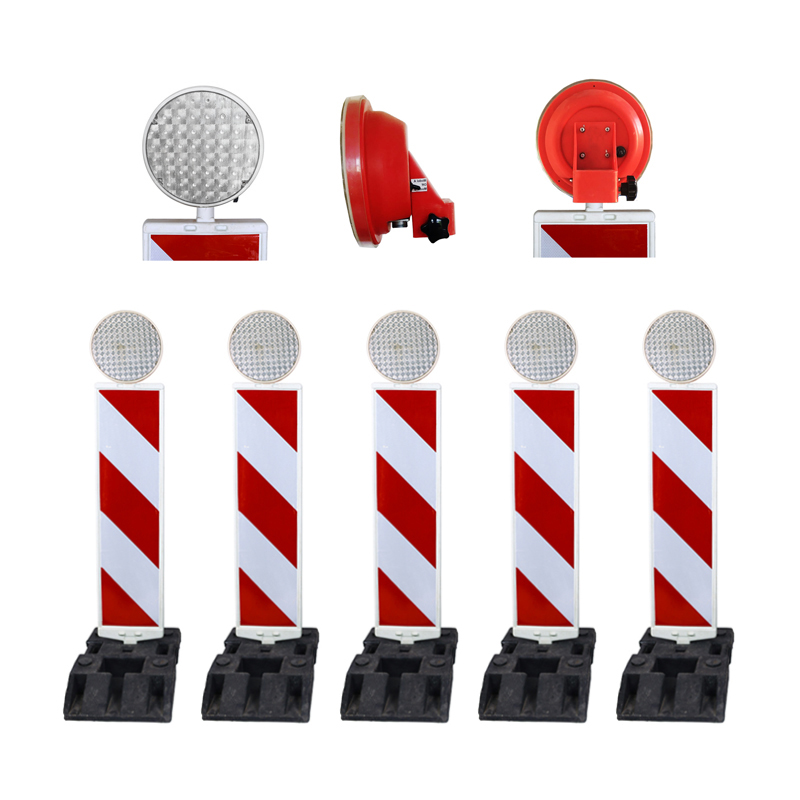

Model No: LB-26500

200mm diversion group guide light (5-light group)

The LB-26500 diversion group guide light system ensures optimal lane guidance and traffic diversion with synchronized LED flashing. Comprising 1 Master light powered by a stable 12V input and 4 Slave lights, it operates in simultaneous or sequential flashing modes, and 12h or 24h operation. Designed for roadwork zones, construction sites, and detour management, the LB-26500 enhances visibility and safety in all conditions.

Quantity :

Contact Now

LB-26500 200mm diversion group guide light (5-light group)

The LB-26500 diversion group guide light system ensures optimal lane guidance and traffic diversion with synchronized LED flashing. Comprising 1 Master light powered by a stable 12V input and 4 Slave lights, it operates in simultaneous or sequential flashing modes, and 12h or 24h operation. Designed for roadwork zones, construction sites, and detour management, the LB-26500 enhances visibility and safety in all conditions.

LB-26500 200mm diversion group guide light (5-light group)-Specifications

Name: 200mm diversion group guide light (5-light group)
Model NO.: LB-26500
Brand name: lubaosolar
LED Qty: 52pcs
Size: Light shell 200mm, connecting wire 5m, power wire 5m
Input voltage: 12V
Color: LED-yellow, body-red, light shell-transparent
Working mode: Simultaneously flashing, sequential flashing
Working hours: 12h/24h, Automatic brightness sensor
Can be used in conjunction with reflective traffic panel
Click to see how to operate our diversion group guide light

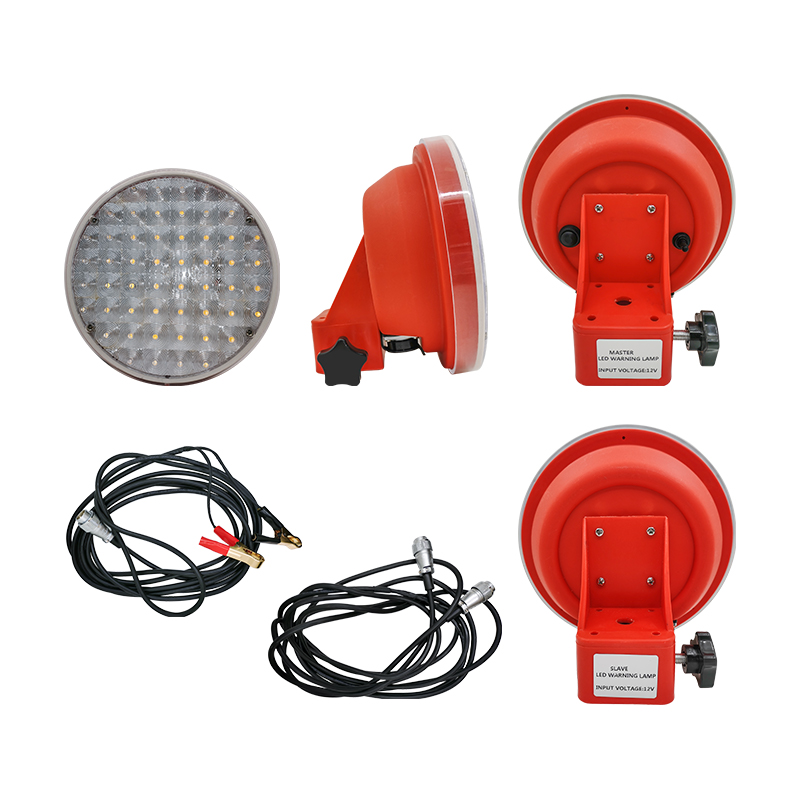

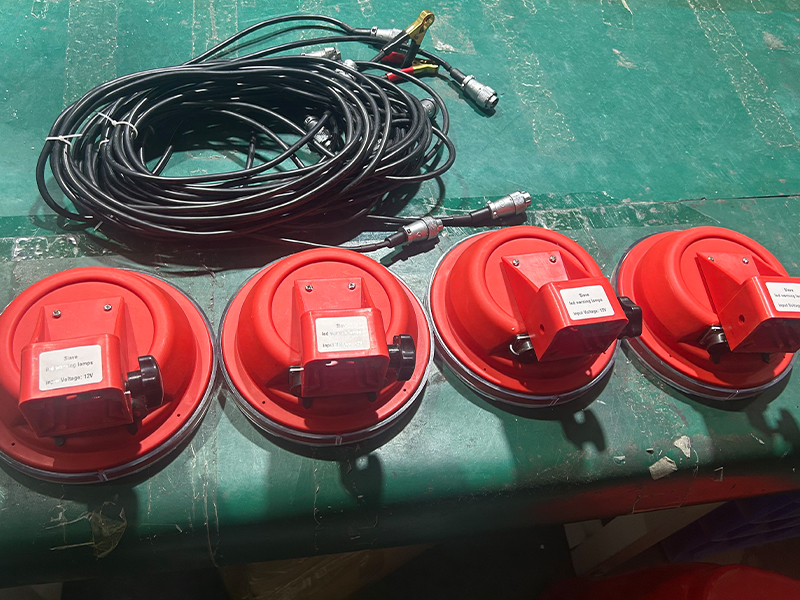

LB-26500 200mm diversion group guide light (5-light group)-Inclusion

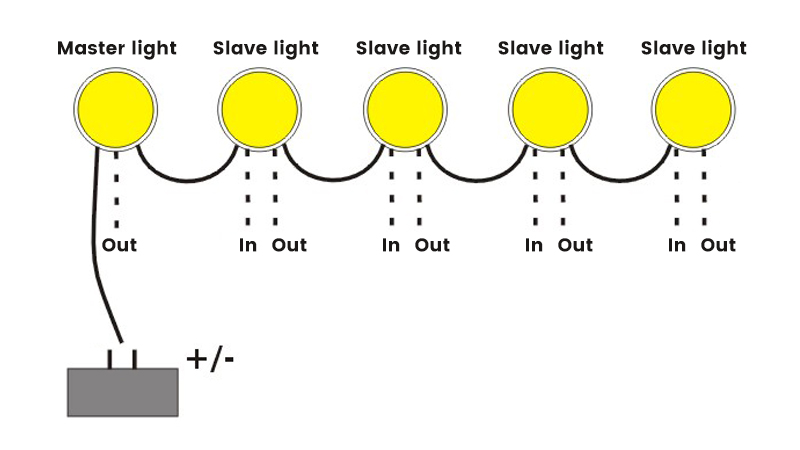

LB-26500 200mm diversion group guide light (5-light group)-Connection method

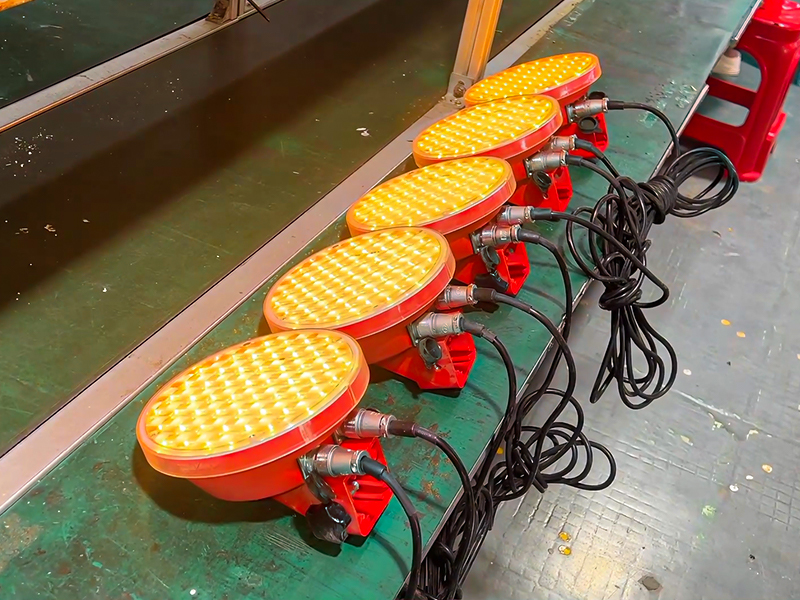

LB-26500 200mm diversion group guide light (5-light group)-Factory Production

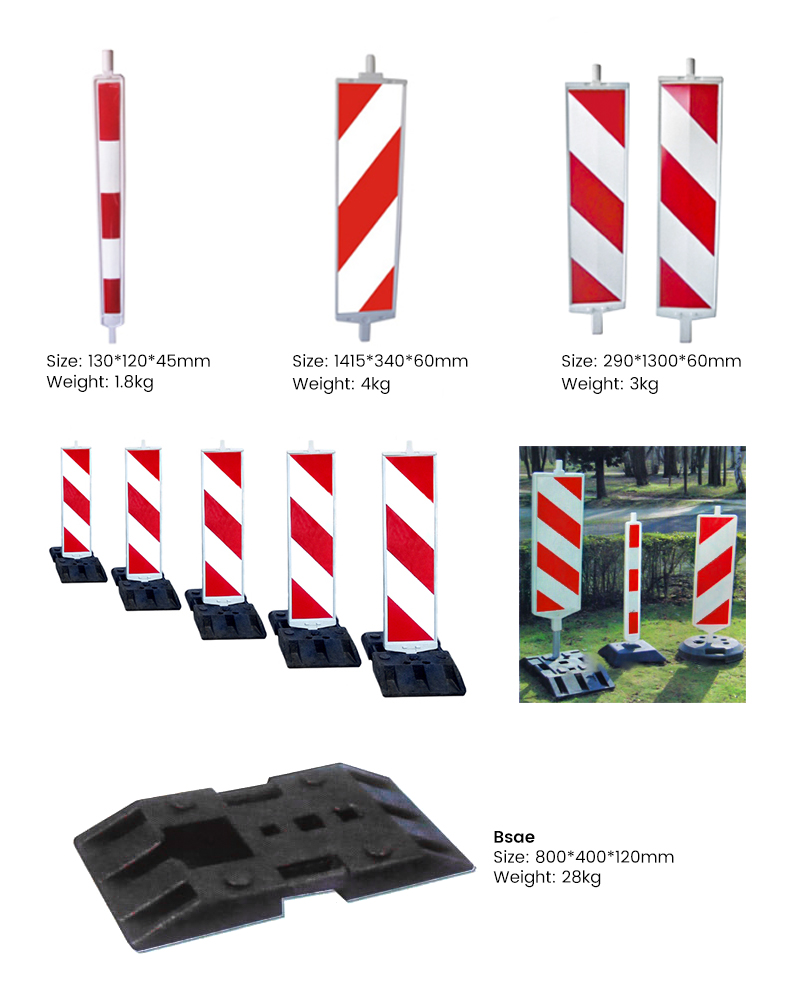

LB-26500 200mm diversion group guide light (5-light group)-Recommended combinations

Can be used in conjunction with reflective traffic panel

Size of reflective traffic panel:

Notes:

Manual measurement of size and weight may result in errors.
Manufactured from UV-stabilized HDPE through blow molding, with rounded edges and a protective rim.
Can be stacked in any way.

LB-26500 200mm diversion group guide light (5-light group)-Notes

This diversion group guide light system (sequential flashing) is used to warn vehicles about lane changes or deviations. A series of lights, mounted on appropriate supports, sequentially illuminates to indicate the deviation and the direction to follow.
The power supply is 12V, and the connection between lights is a standard 5 meters cable (customizable). Each light can be positioned anywhere within the system.
This diversion group guide light system operates under the Master-Slave principle, allowing a maximum of 5 lights to be connected for the desired lighting pattern.

LB-26500 200mm diversion group guide light (5-light group)-Description

The lights are equipped with connectors for the input/output cables of the synchronous/alternate signal. Each connection cable is 5 meters long and has male and female connectors at each end. The synchronization signal is transmitted via cable from the"out"connector of the previous light to the"in"connector of the next one (synchronized flashing to follow the master light's pattern).
