LB-AWS Aerial marker balls Overhead wire markers

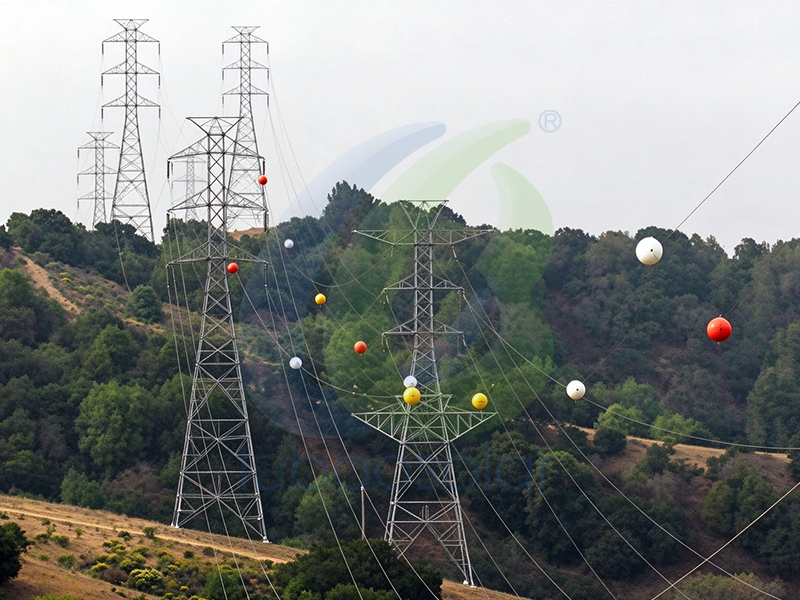

According to the International Civil Aviation Organization (ICAO) Annex 14 International Standards and Recommended Practices — Aerodromes, and relevant national regulations, overhead power lines — especially ultra‑high voltage (500 kV) transmission cables and cross‑river cables — should be equipped with conspicuously shaped aviation marker balls (aviation warning spheres) to provide warning indications.

LB-AWS Aerial marker balls Overhead wire markers-Specifications

• Name: Aerial marker balls Overhead wire markers
• Model NO.: LB-AWS
• Brand name: lubaosolar

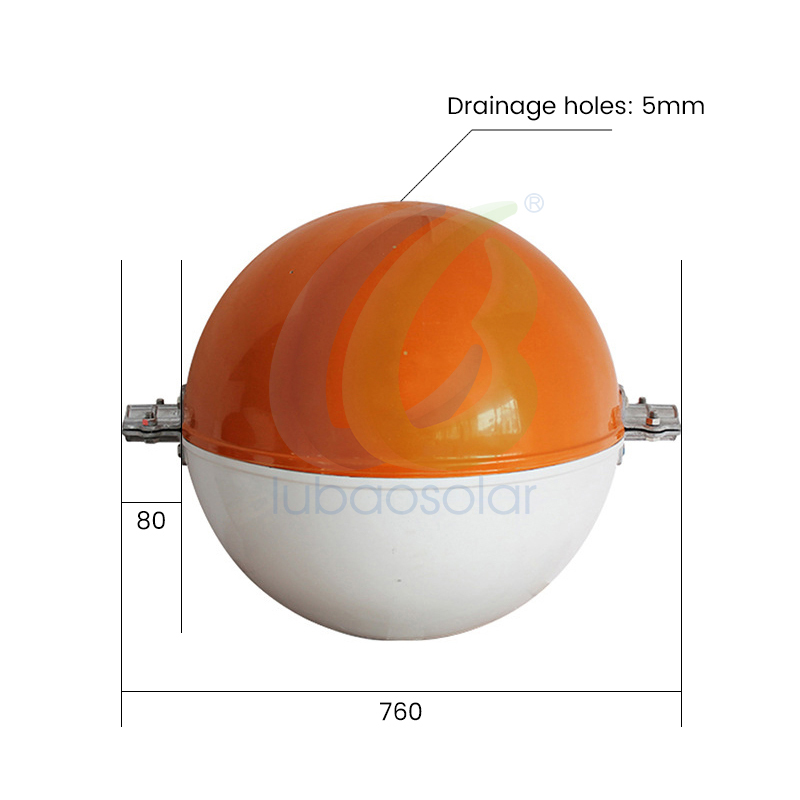

• Size: Φ600mm or Φ760mm
• Weight: 6 kg

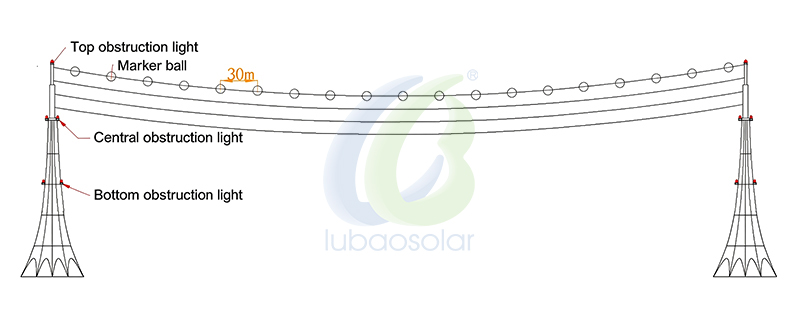

• Aviation marker balls (aviation warning spheres) are installed on the steel cables of the lightning protection ground wire on overhead towers. The spacing between each marker ball shall not exceed 30 meters and shall be evenly distributed.

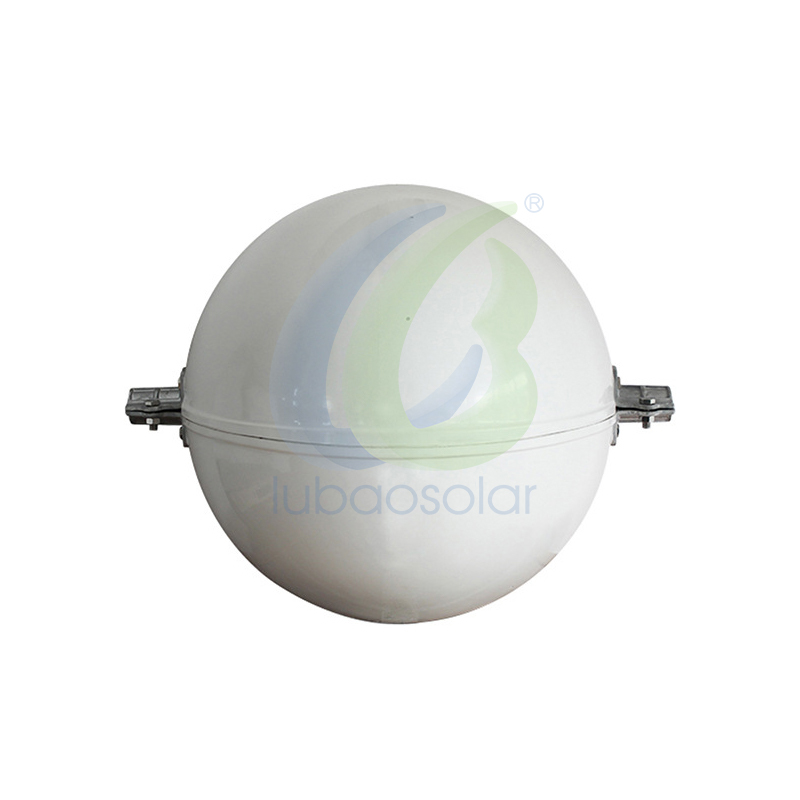

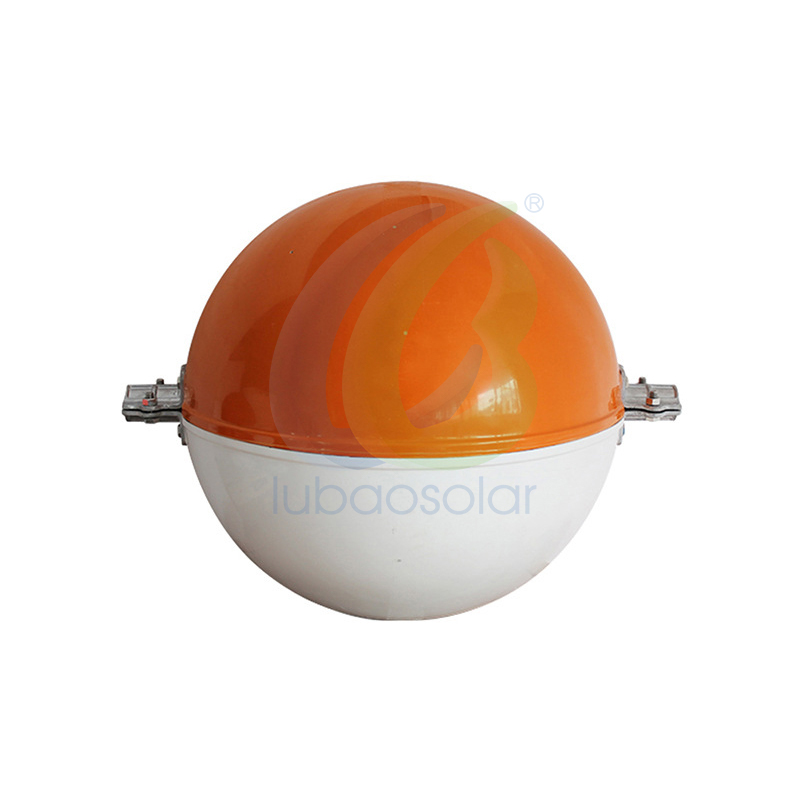

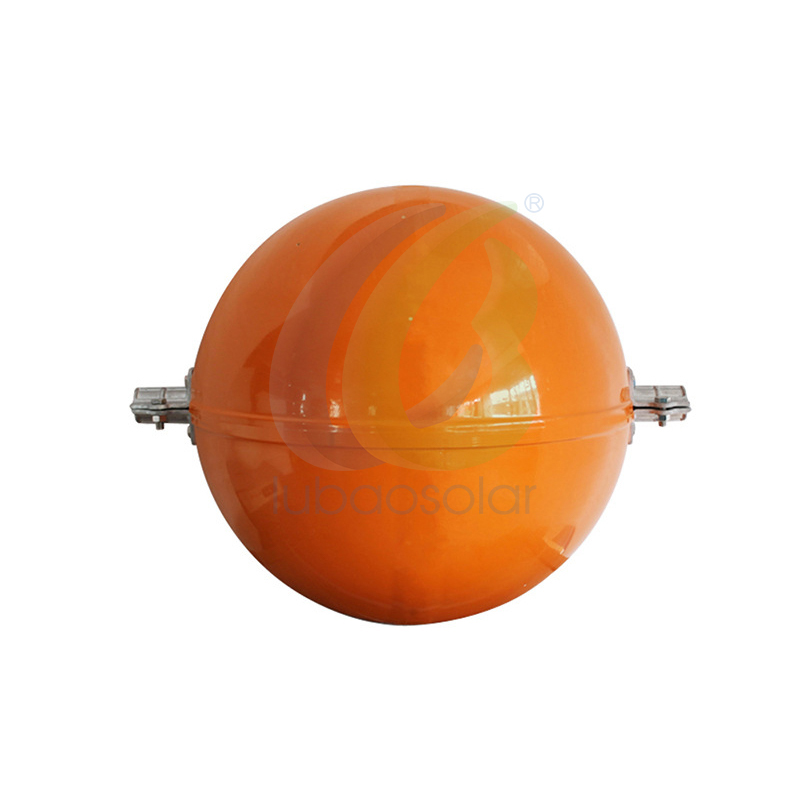

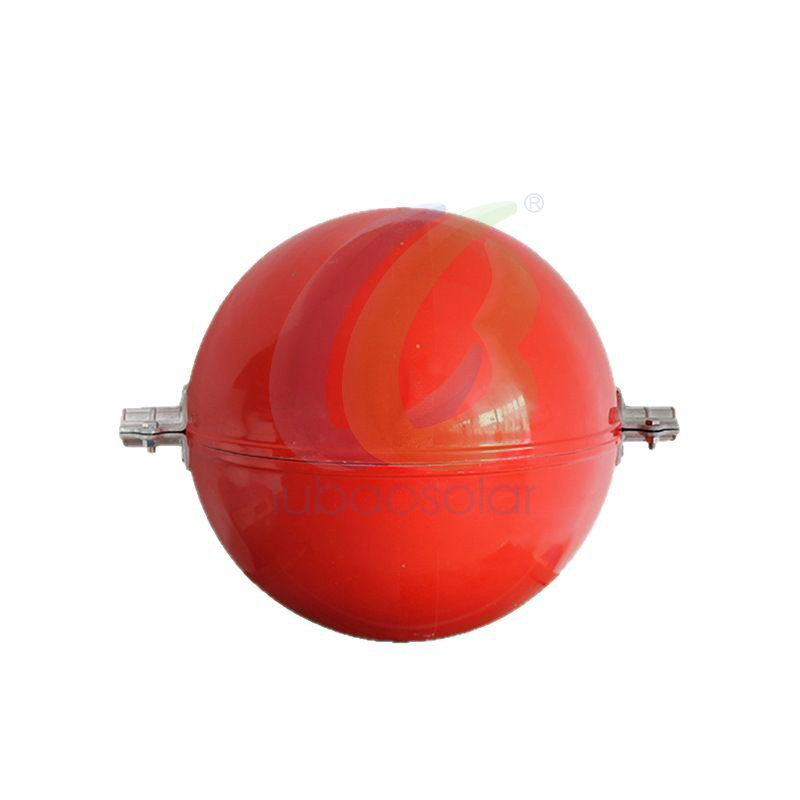

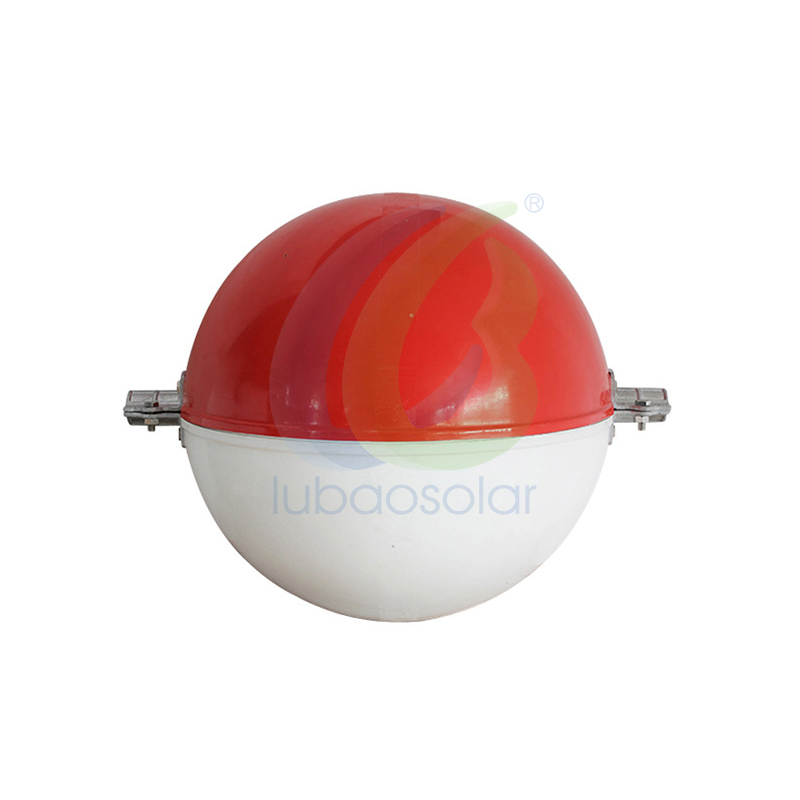

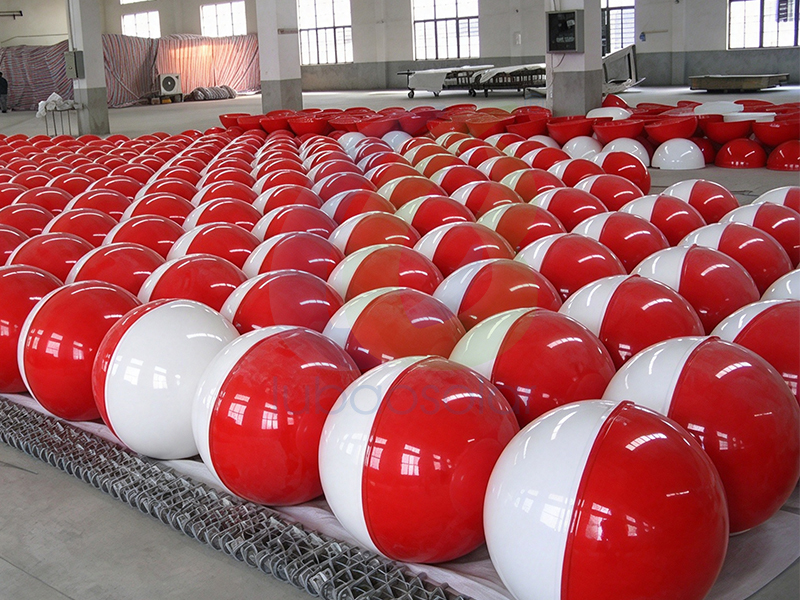

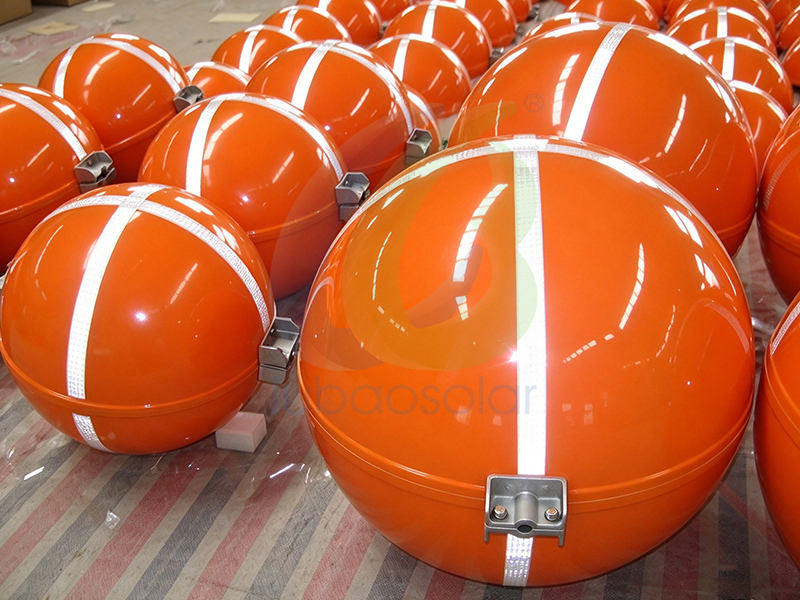

• Aviation marker balls are available in white, all‑orange, all‑red, orange‑white, and red‑white.
• They should be installed in alternating colors.
• For installations involving multiple wires or cables, the marker balls should be positioned at a height not lower than the highest overhead line being marked.
• Reinforcement material: Glass fiber reinforced polyester resin.
• Glass fiber characteristics: Tensile strength ≥128 MPa, flexural strength ≥230 MPa, temperature resistance: 40°C to 90°C
• Clamp: Alloy cast aluminum fitting (for cable diameters Φ16–Φ19, including armor rods), or custom‑made according to dimensions.
• Fasteners: Stainless steel fasteners M10 × 35 and M10 × 40, full set.
• Armor rods: Alloy aluminum wire.
• Packing quantity: 3 sets/carton
• Inner packaging: Double‑wall corrugated carton (outer dimensions) 610 × 610 × 900 mm
• Outer packaging: Plywood wooden case (outer dimensions) 630 × 630 × 920 mm
• Dimensions are manually measured; slight tolerances may apply.
• Packing specifications may be adjusted according to order quantity.

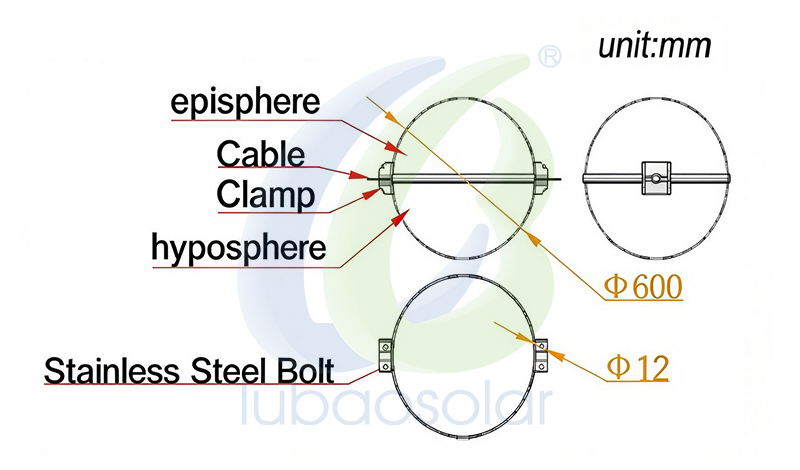

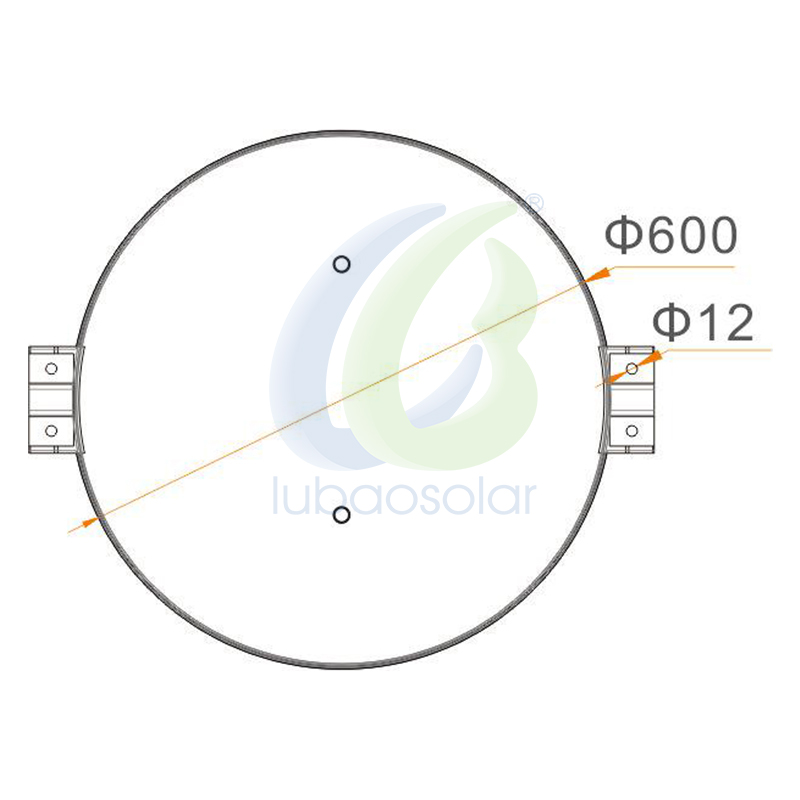

LB-AWS Aerial marker balls Overhead wire markers-Size

---

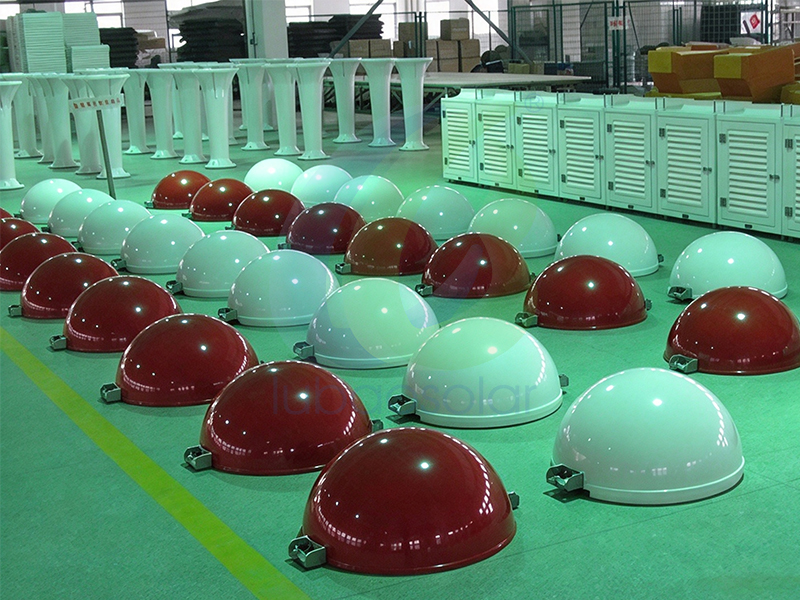

LB-AWS Aerial marker balls Overhead wire markers-Factory Production

---



LB-AWS Aerial marker balls Overhead wire markers-Installation

---

1. First, install the armor rods on the cable at the marker ball installation position. The required length is approximately 1000–1200 mm, with both ends extending 200–300 Hang the plastic clamp on the lower hemisphere onto the cable and secure it in place.
2. Attach the upper hemisphere onto the lower hemisphere (align according to the steel die marks on the clamp). Rotate until it is fully seated.
3. Finally, insert the M12 × 35 stainless steel bolts, then fit the flat washer and spring washer (secondary) in sequence, and tighten the nuts.
