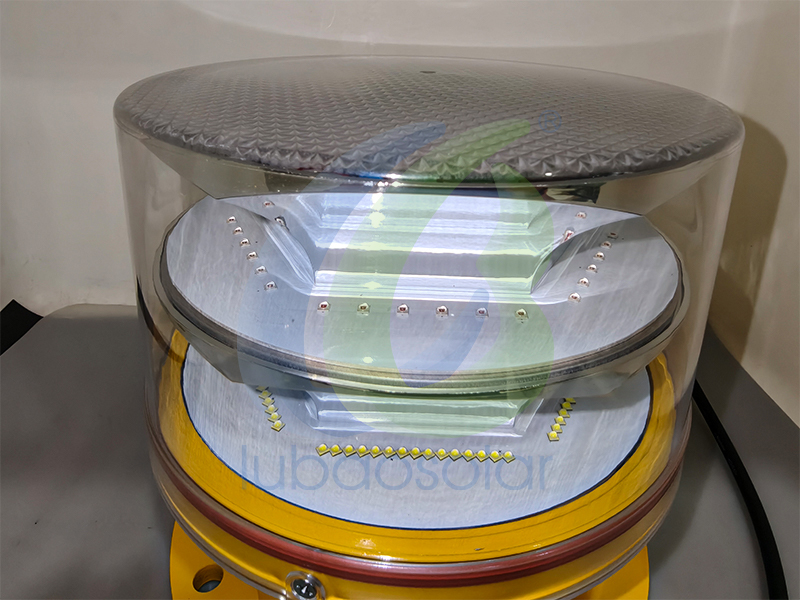

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light

The LB-MI-A3/B3 (L) is a Medium intensity red white aviation obstruction light aviation warning light used to mark obstacles that pose a hazard to aircraft. It emits red flashes at night and white flashes during the day. The self-designed reflector converges the light beam, allowing it to achieve standard light intensity with lower power consumption. This product complies with all relevant standards of ICAO and FAA.

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Specifications

• Name: Medium intensity red white aviation obstruction light aviation warning light
• Model NO.: LB-MI-AB/B3(L)
• Brand name: lubaosolar
• Beam Angle: Horizontal 360°, Vertical 3°
• Available Colors: White (Daytime), Red (Night)
• Intensity(cd): ≥20000cd(Night), ≥2000cd(Daytime)
• Operation Mode: Dusk-to-dawn Automatically as standard, 24hours operation
• Operating Voltage: DC(48VDC) or AC(110-240VAC) or others
• Flash Characteristics: 20-60 flashes per minute (factory setting: 20fpm)
• Average Power: 2W (20fpm, red mode) +7W (20fpm, white mode)
• Material: Body-UV protected Polycarbonate, base-Powder-coated Die-casting aluminum
• Wind Speed: 80m/s
• Waterproof: IP66
• Compliance: ICAO Annex 14 Volume 1, Ninth edition, 2022, table 6-1&table 6-3: Photo Photometric, Medium Intensity TypeA, Medium Intensity Type, FAA L-865&L-864
• Options Available: GPS sync flashing, Infrared LED compatible for NVG (Night Vision Goggles), Dry contact alarm output, RS485 communication, Bird deterrent spike

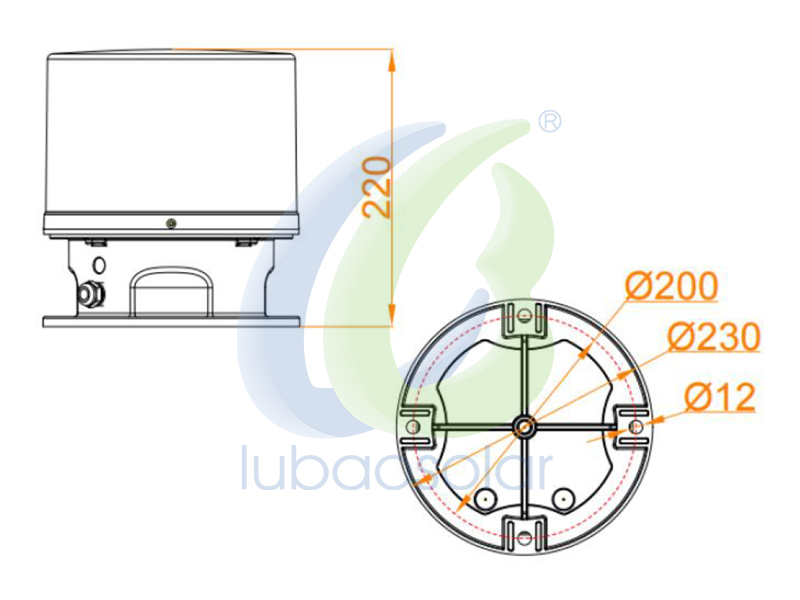

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Size

---

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Working Mode

---

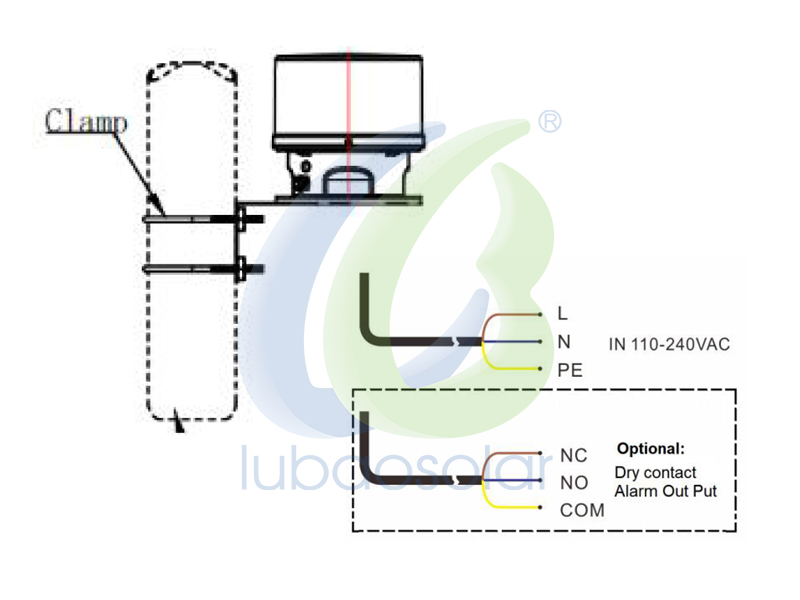

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Installation

---

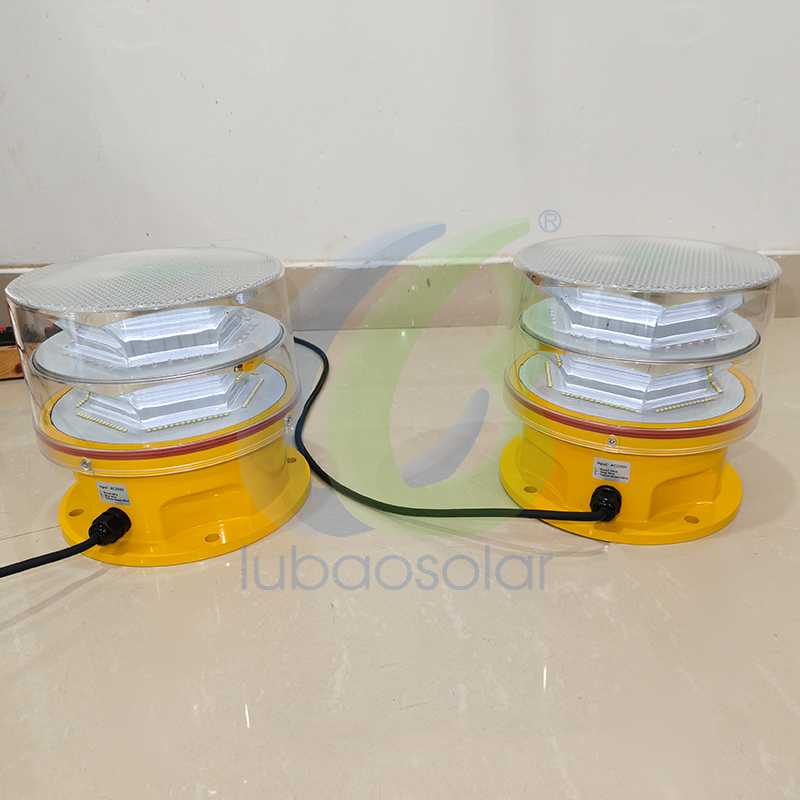

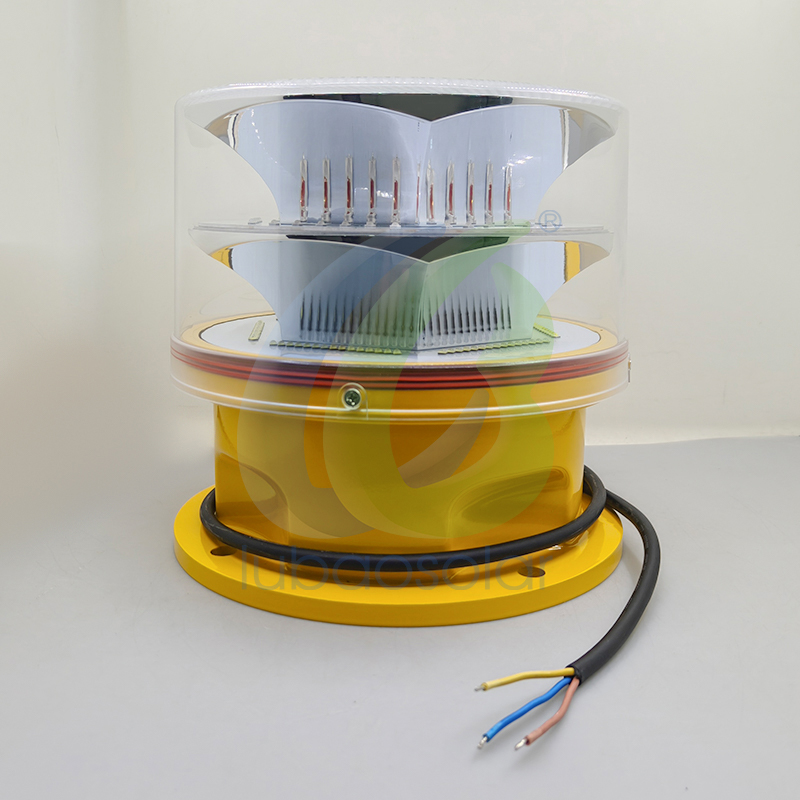

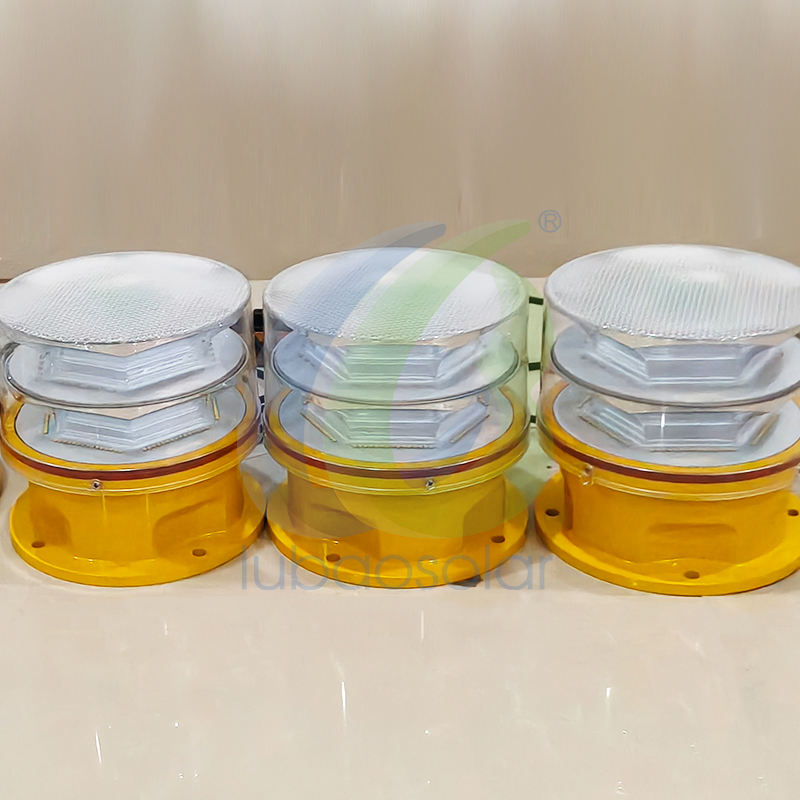

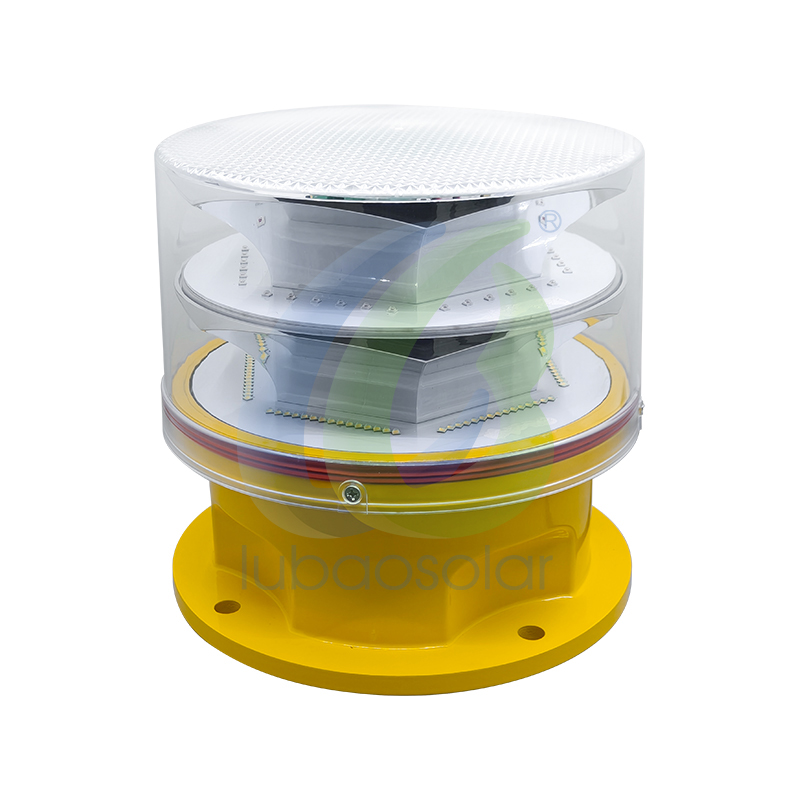

LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Product Photograph

---





LB-MI-AB/B3(L) Medium intensity red white aviation obstruction light aviation warning light-Advantage

---

High-Intensity LED Light Source for Reduced Power and Maintenance

The high-intensity LED light source saves power and reduces maintenance compared to incandescent or halogen lamps.

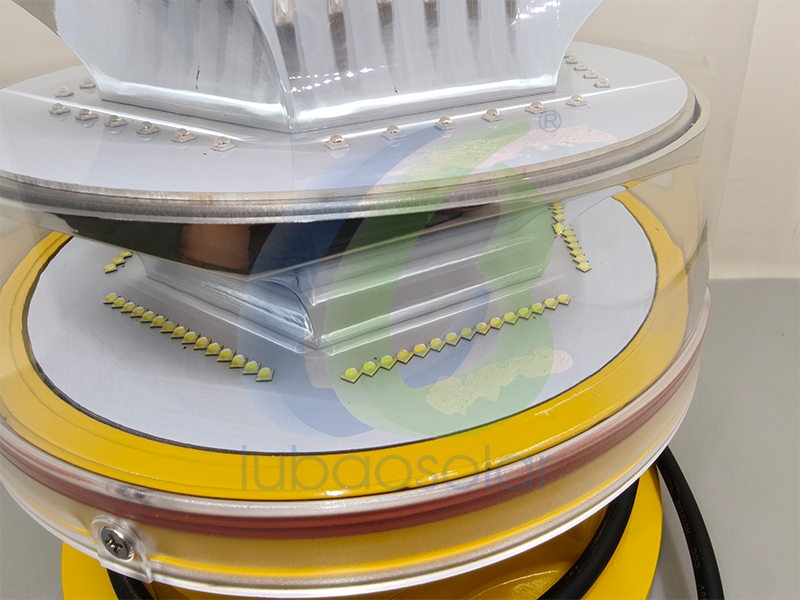

Unique Reflector Design for Efficient Light Convergence

The unique design features a UV-protected polycarbonate reflector that converges light, allowing it to achieve standard light intensity with lower power consumption.
