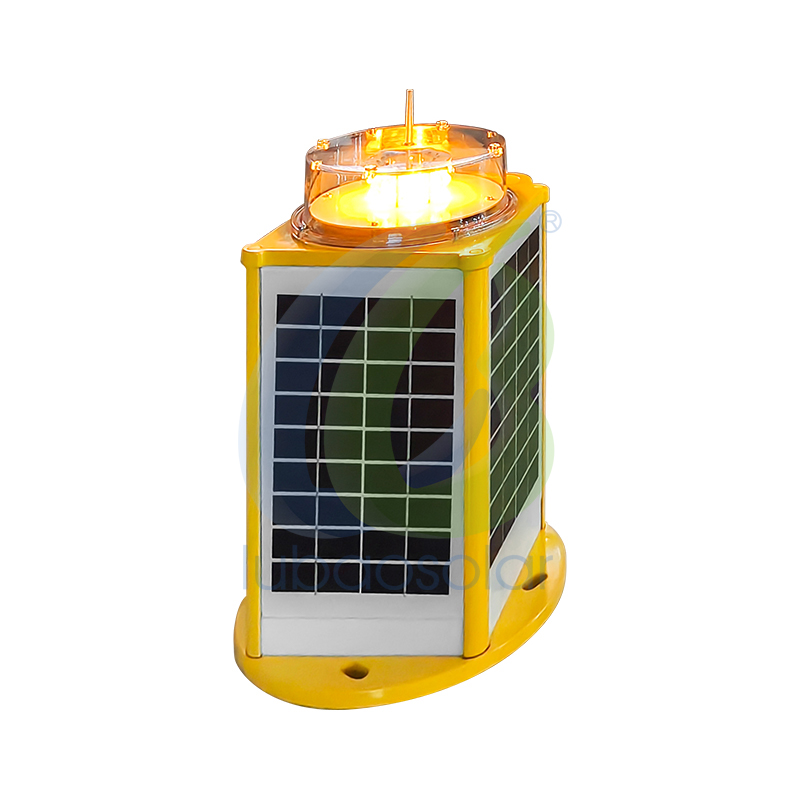

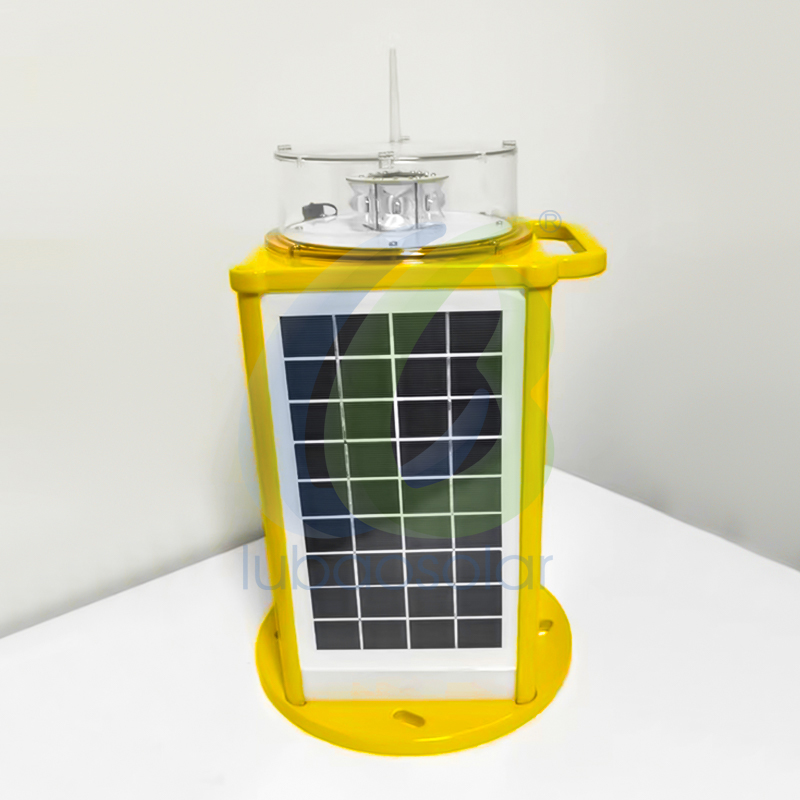

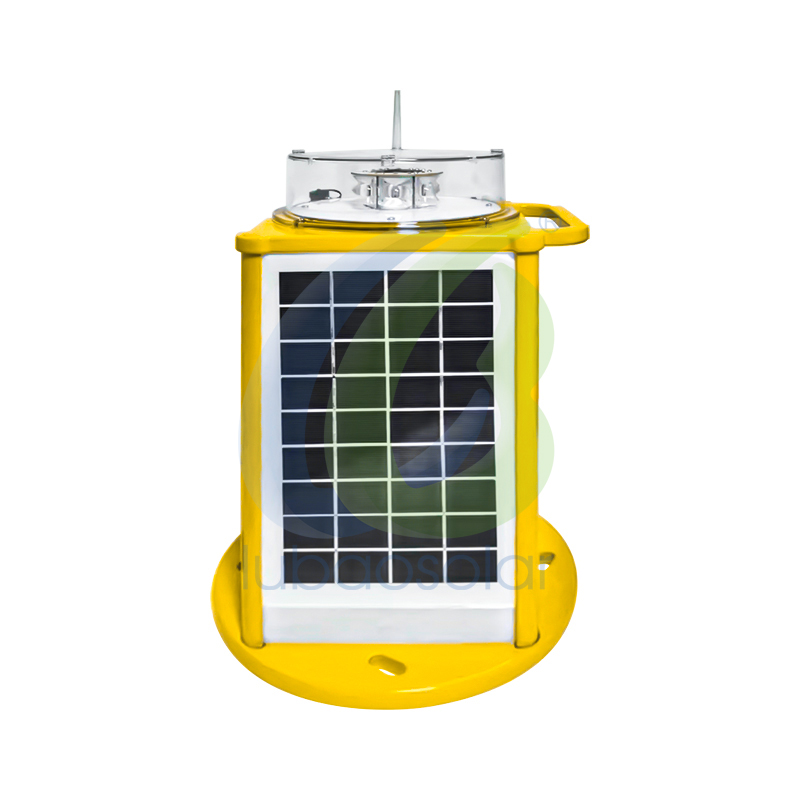

LB-ML-S7 Aircraft warning light for buildings solar marine lantern

Our Aircraft Warning Light for Buildings Solar Marine Lantern ensures safety, visibility, and reliability in any environment. With four high-efficiency monocrystalline solar panels, it captures sunlight from all angles for continuous power. Built with UV-resistant, shockproof PC housing and a powder-coated die-cast aluminum base, it withstands harsh conditions. Easy to install, low-maintenance, and highly durable, it delivers long-lasting protection, energy savings, and dependable performance.

LB-ML-S7 Aircraft warning light for buildings solar marine lantern-Specifications



• Name: Aircraft warning light for buildings solar marine lantern
• Model NO.: LB-ML-S7
• Brand name: lubaosolar
• Visible range: 6-8NM available (nm, AT@0.74)
• Beam angle: Horizontal output 360°, Vertical devergence ≥10° or 5°
• Flash characteristics: FL3S (0.2, 2.8) (others are optional)
• Operation mode: Dusk-to-dawn Automatically (Built-in photocell)
• LED life experience (hours): >100,000
• Operating voltage: 7.4Vdc or 12Vdc
• Circuit protection: Integrated
• Solar module type: Mono crystalline silicon
• Output (watts): 5W*4
• Charging regulation: Microprocessor controlled
• Battery type: Lithium ion battery(NiMH, VRLA is optional)
• Battery capacity (Ah): 12AH as standard (Others are customized)
• Nominal voltage (V): 7.4V or 11.1V
• Battery service life: Average 5 years
• Automony (Day):  ≥15 days (Duty cycle=20%, Longer is customized)
• Material: Lens-UV protected polycarbonate, base-Powder-coated Die-casting aluminum
• Dimension (mm): Dia.250*Dia.250*H 370
• Weight (kg): 5.5kg
• Humidity: 0~100%
• Wind speed: 240km/h
• Waterproof: IP68
• Temperature (℃): -20℃~80℃
• Compliance: IALA-Signal colors compliant to lALA E-200-1

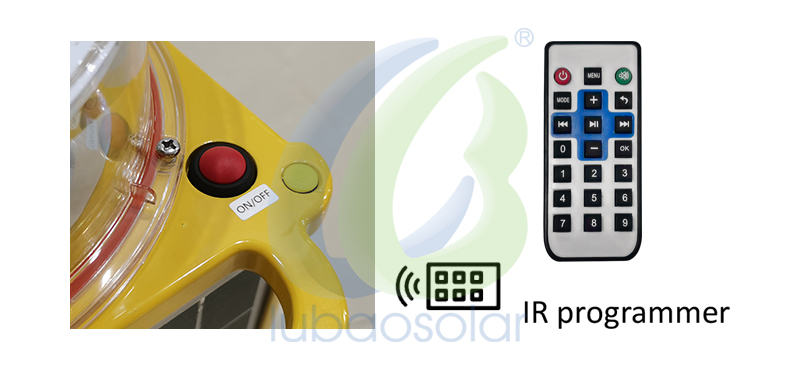

• Options Available: GSM Cellphone Monitoring, RS232 communication port, GPS Sync flashing, Charging port & External battery charger, 366 lALA fash characteristics adjustable, Infrared Programmer for flashing rate setting

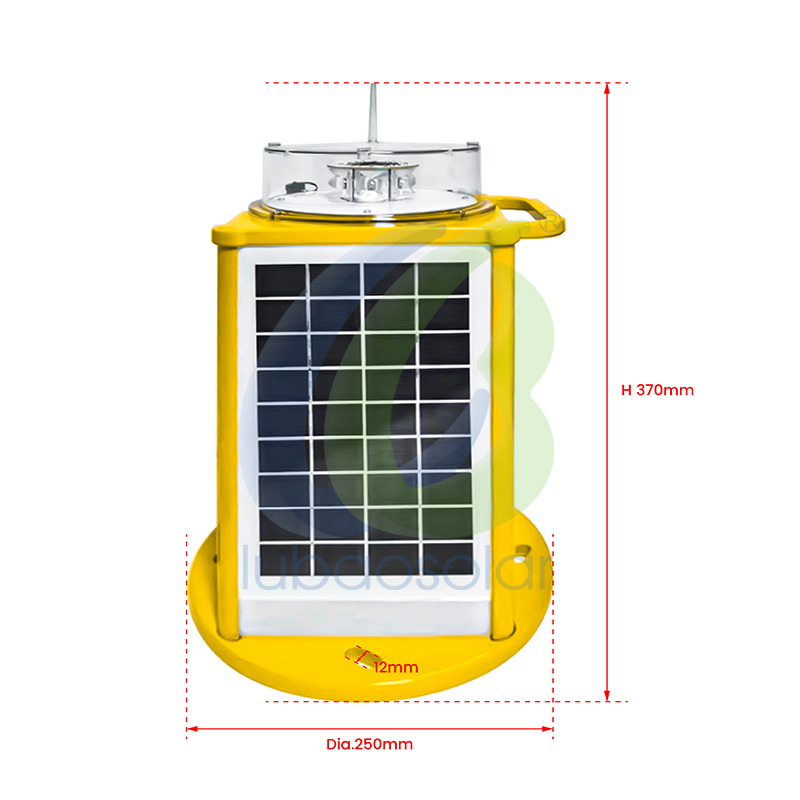

LB-ML-S7 Aircraft warning light for buildings solar marine lantern-Size



LB-ML-S7 Aircraft warning light for buildings solar marine lantern-Precautions

• Designed to be maintenance-free, the self-contained light requires minimal attention; however, the following maintenance and servicing information is provided to help ensure the longevity of your product.
• Cleaning Solar Panels – Occasional cleaning of the solar panels may be required. Using a cloth and warm soapy water, wipe off any foreign matter, then rinse the panels with fresh water.
• Battery Check – Batteries should be inspected once a year to ensure that the charger, battery, and ancillary electronics are functioning correctly. Using a voltmeter, check that the battery voltage is at least 10V, and ensure all terminals are free of foreign matter.
• Storage – If the light is to be placed in storage for an extended period (longer than 6 months), please follow the steps below: 1.The battery must be stored in a fully charged condition. 2.All batteries will discharge over time, and the rate of discharge depends on temperature. 3.If the light is stored in temperatures above 40°C, the battery will discharge more quickly. 4.Check the battery every 3 months and recharge if necessary.
• Recharging the Battery – Place the unit in the sun for 2–3 days, or place it in front of a halogen lamp for 2–3 days. (Do not place the halogen lamp too close to the solar panel, as the panel may overheat.) and check the battery voltage regularly to ensure the unit is charging correctly.

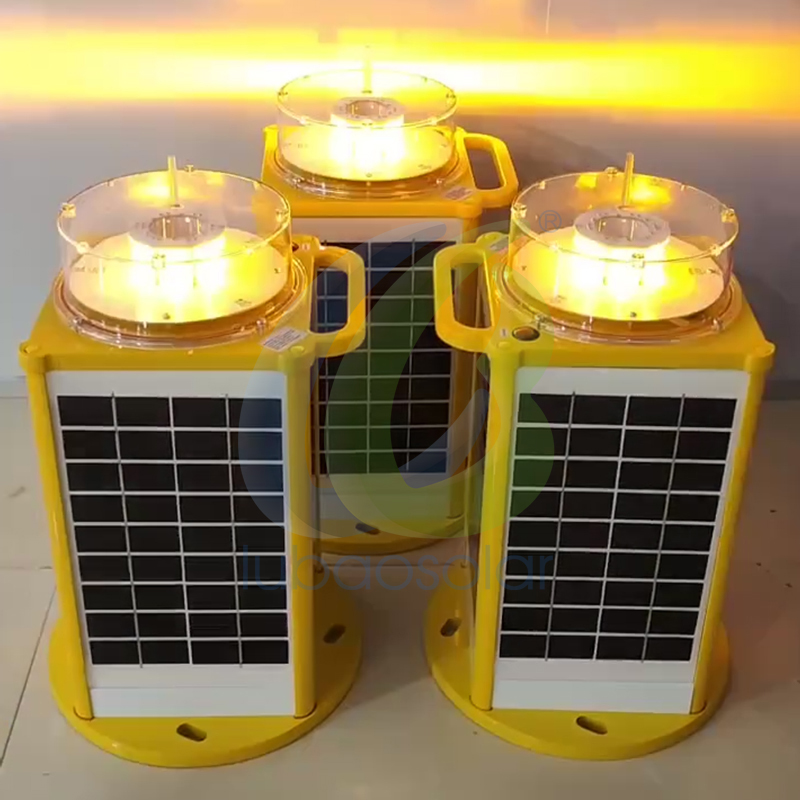

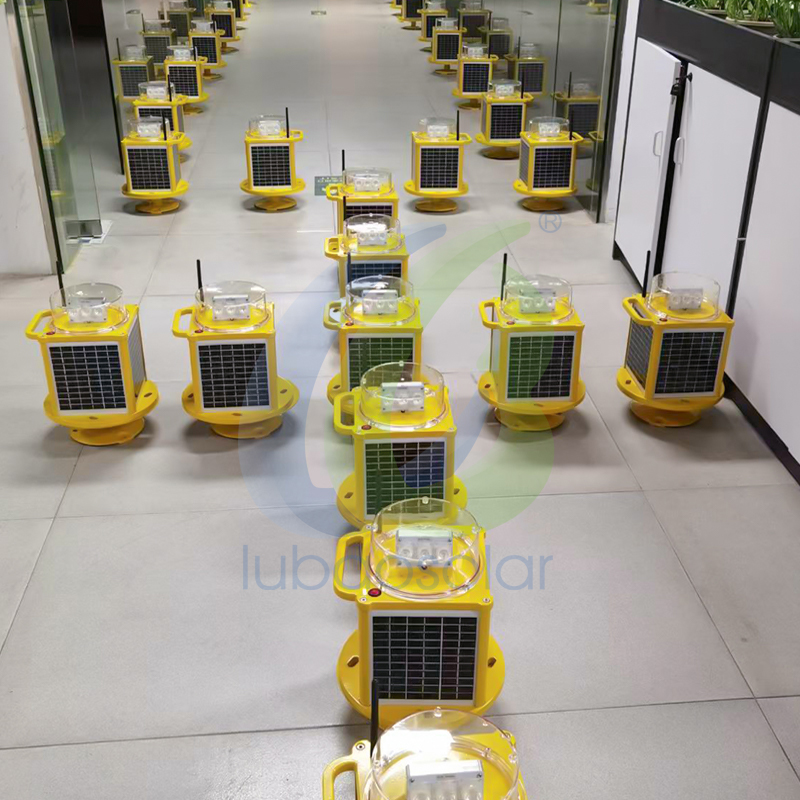

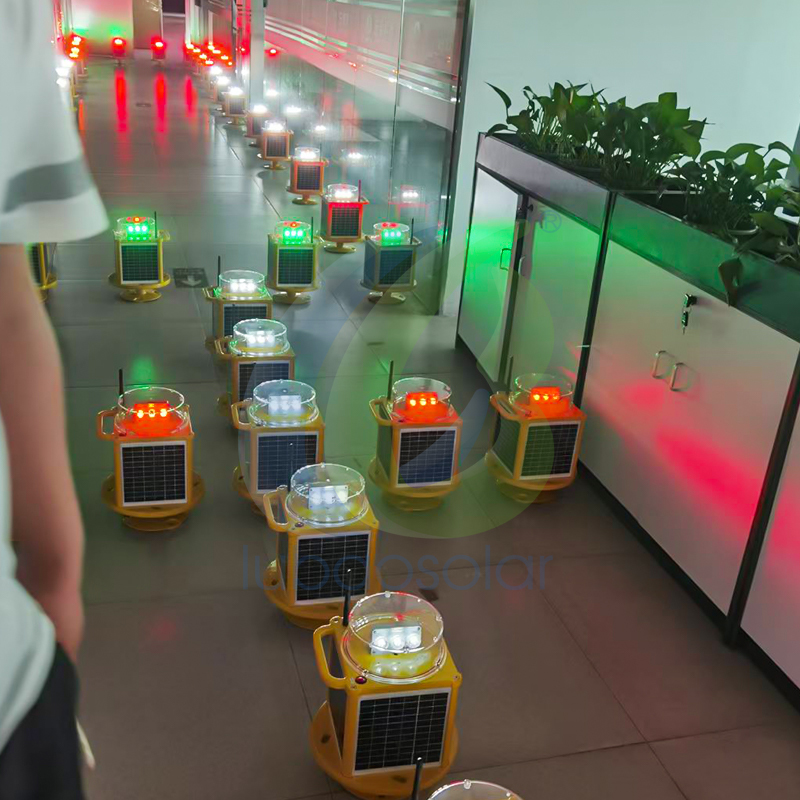

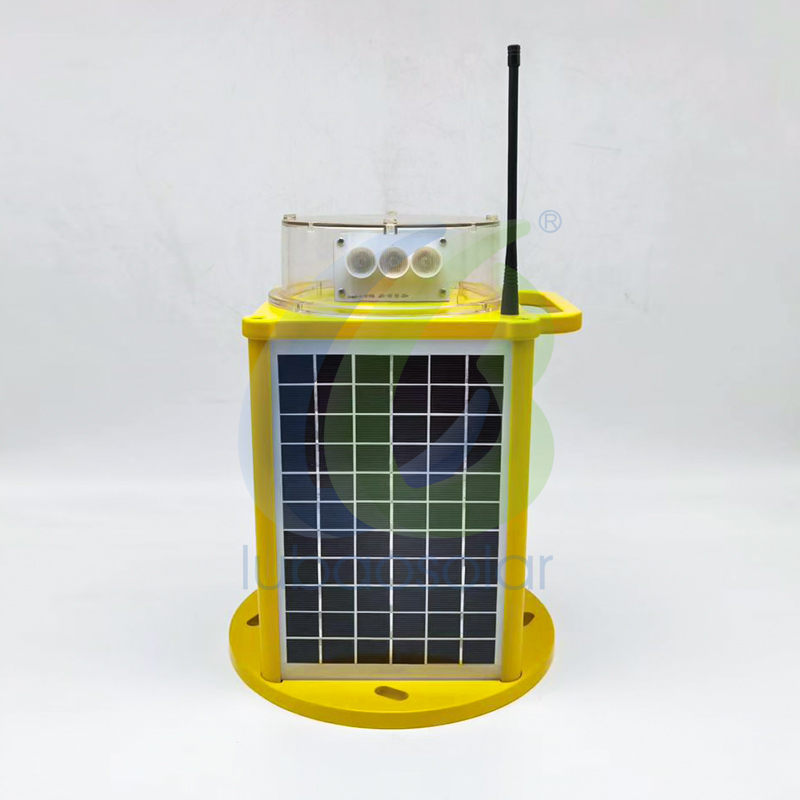

LB-ML-S7 Aircraft warning light for buildings solar marine lantern-Other types

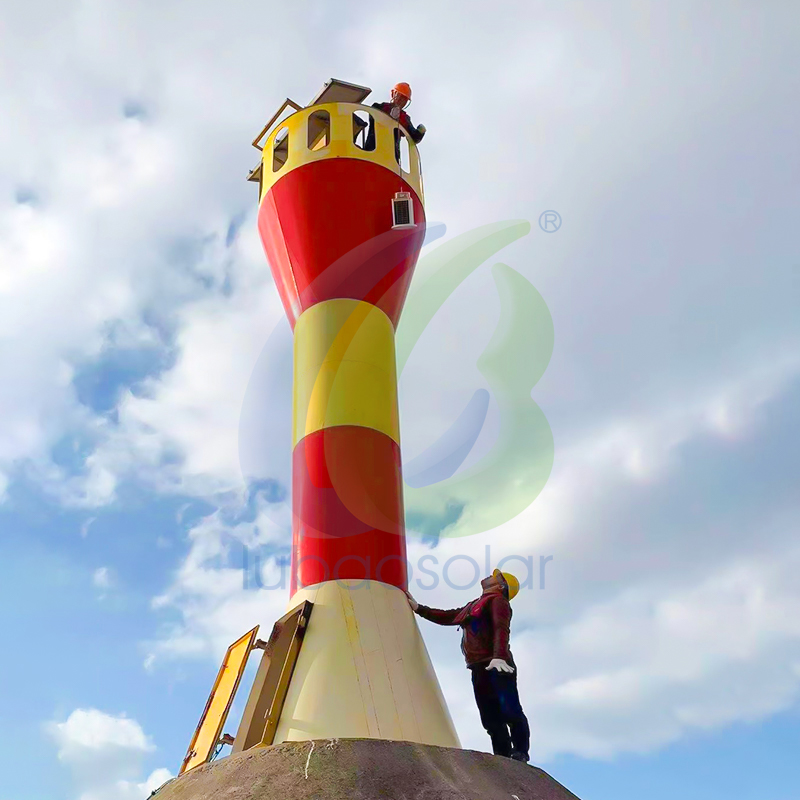

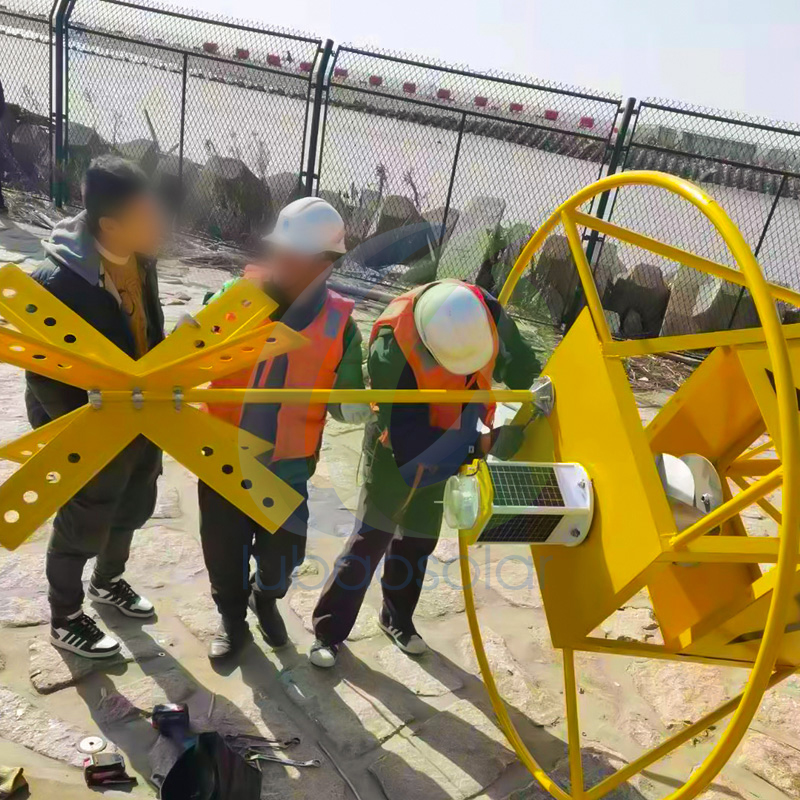

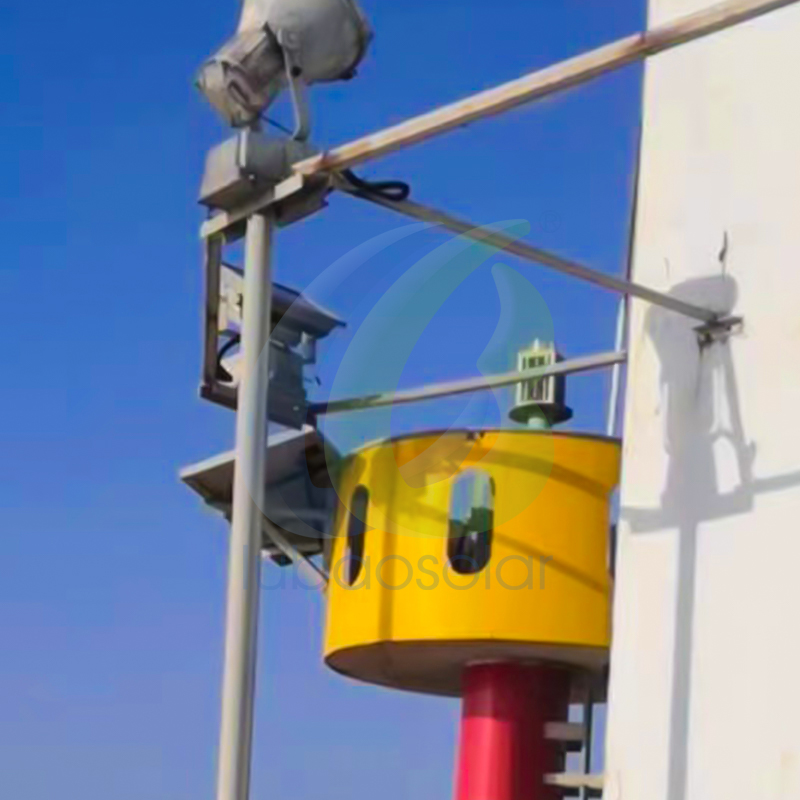

LB-ML-S7 Aircraft warning light for buildings solar marine lantern-Installation
