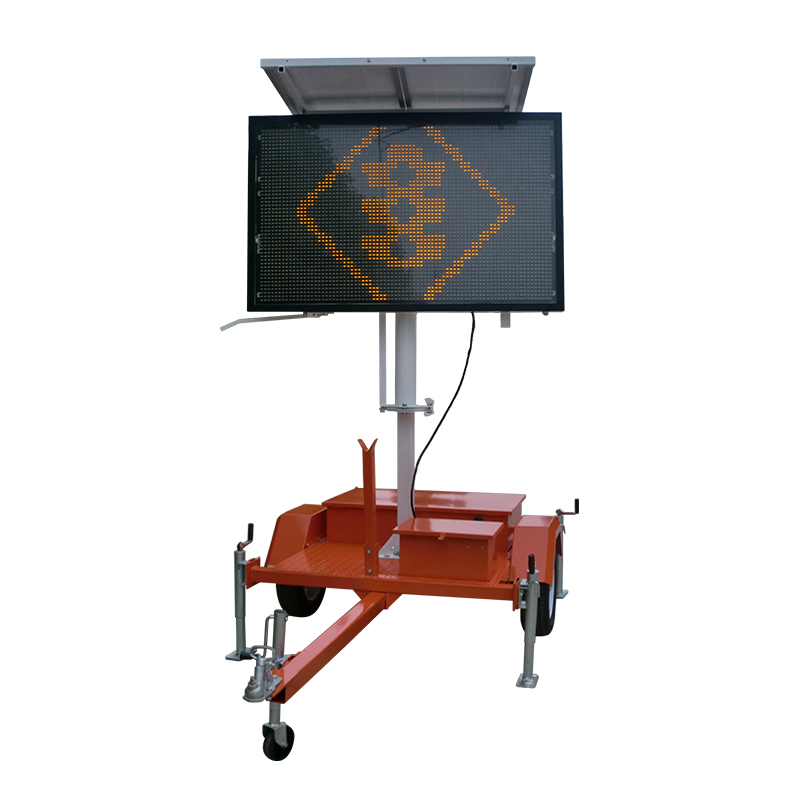

PVM-SISE A Solar variable message signs VMS trailer

Our PVM-SIZE A Solar variable message signs VMS trailer for real-time traffic communication. Equipped with a full matrix LED screen, it shows clear, customizable messages for road work, detours, speed limits, and emergencies. It supports web-based remote control, USB serial connection for laptops, and Windows-compliant software with free automatic updates. With storage for up to 1,000 messages and 100 predefined images, it's ideal for reliable, all-weather road safety messaging.

PVM-SISE A Solar variable message signs VMS trailer-Specifications

• Information
• Name: Solar variable message signs VMS trailer
• Model NO.: PVM-SISE A
• Brand name: lubaosolar

• Display screen
• Display Type: LED Full Matrix
• Display Size:1720mm*1100mm
• Display Viewing Area: 1600mm*960mm
• Matrix: 48*28, 4*5mm LEDs per pixel (amber color or 5 color Amber, red, green,blue &white)
• Enclosure: IP55 equivalent, front access
• Screen: Non Glare UV polycarbonate
• Photocell auto dimming

• Trailer physical
• Length: 2200mm
• Length (with draw bar): 2850mm
• Width (with fender): 1940mm
• Height (operating): 3400mm
• Height (traveling): 2400mm
• Weight: 700KG
• Trailer jack: 3000LB
• Draw bar jack: 2000LB
• Coupler: 2000KG
• Hydraulic mast lifting, rotating 360 degree vertically
• Powder coating orange

• Power
• Voltage: 12V
• Solar Panels: 2*180 watt Panels
• Batteries: 12V 2*250AH deep cycle gel battery
• Solar Controller: 40AMP
• Operation on batteries/solar Indefinite under normal conditions

• Controller and Programming
• Programming options: WEB based remote control
• USB serial for Laptop
• Software Windows Compliant Free automatic software updates
• Predefined Images: 100
• Large Storage up to 1000 individual messages with various page sizes
