Model No: PVM-SIZE D

Variable message signs (VMS signs)

Our PVM-SIZE D Variable Message Signs (VMS signs) are smart, reliable, and built for real-time communication on the road. Designed with high-brightness LED displays, solar power options, and remote control capabilities, VMS boards deliver clear, customizable messages for traffic control, construction zones, events, and emergencies. Easy to operate and highly visible day or night, our variable message signs (VMS signs) help you guide drivers, reduce confusion, and improve road safety.

Quantity :

Contact Now

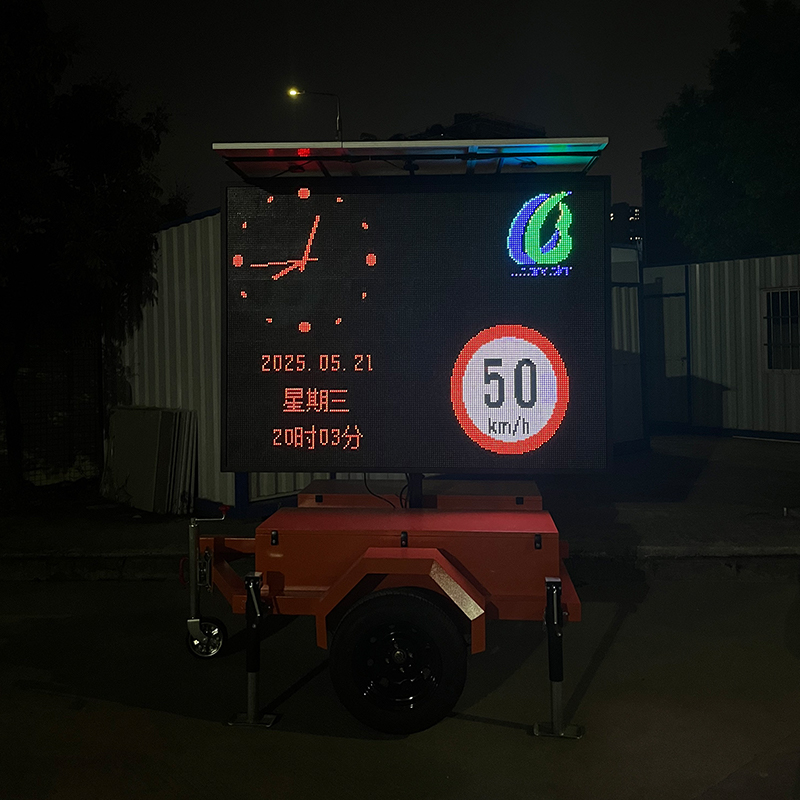

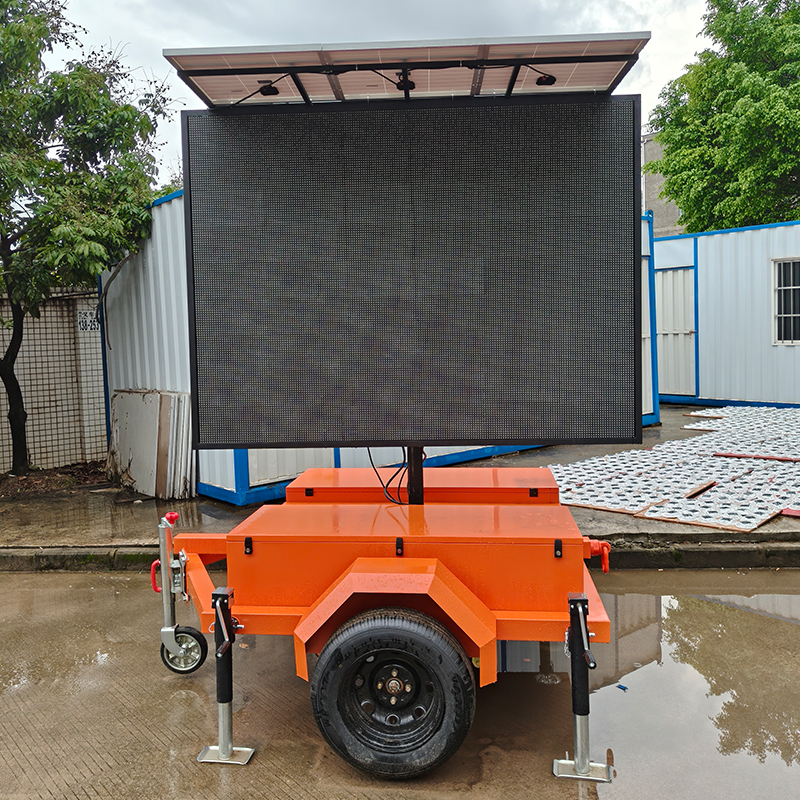

PVM-SIZE D Variable message signs (VMS signs)

Our PVM-SIZE D Variable Message Signs (VMS signs) are smart, reliable, and built for real-time communication on the road. Designed with high-brightness LED displays, solar power options, and remote control capabilities, VMS boards deliver clear, customizable messages for traffic control, construction zones, events, and emergencies. Easy to operate and highly visible day or night, our variable message signs (VMS signs) help you guide drivers, reduce confusion, and improve road safety.

PVM-SIZE D Variable message signs (VMS signs)-Specifications

Information
Name: Variable message signs (VMS signs)
Model NO.: PVM-SISE D
Brand name: lubaosolar

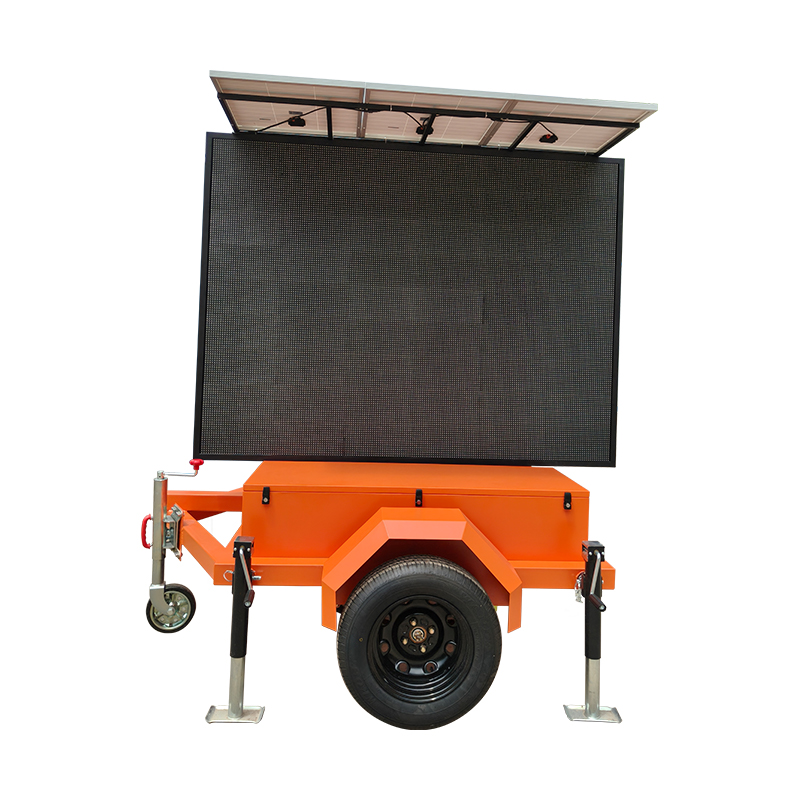

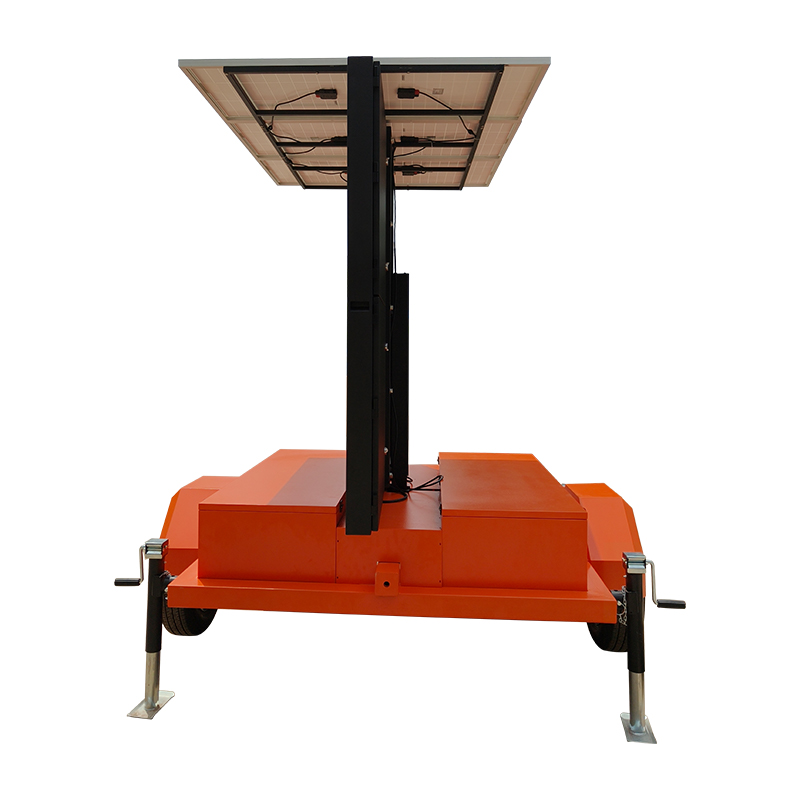

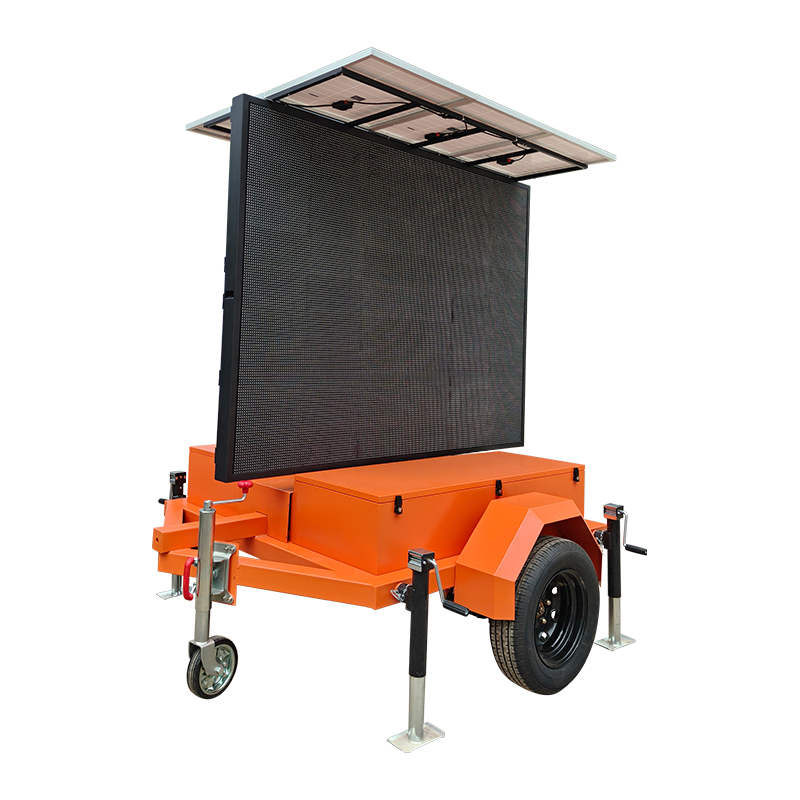

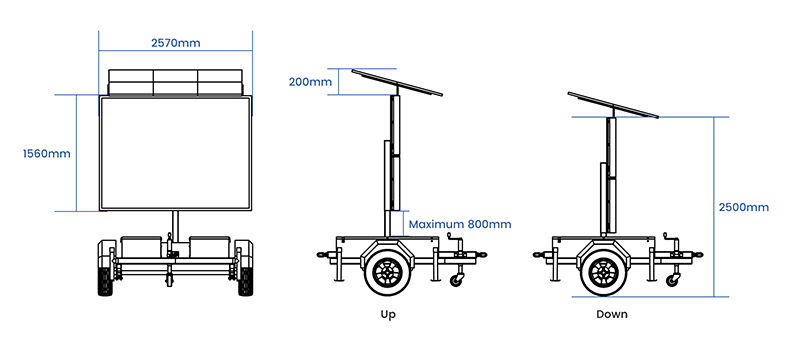

Trailer
Length(Overall): 1990mm
Width(Travel position): 1800mm
Height(Travel position): 2500mm
Height(Max Operating position): 3600mm (2500MM HEIGHT can up and down 800mm)
Weight: 850kg
Tyres: 165/70R13
Coupling: 50mm ball
The Battery additional with aluminum box for packing.
Warranty 3 years

PVM-SIZE D Variable message signs (VMS signs)

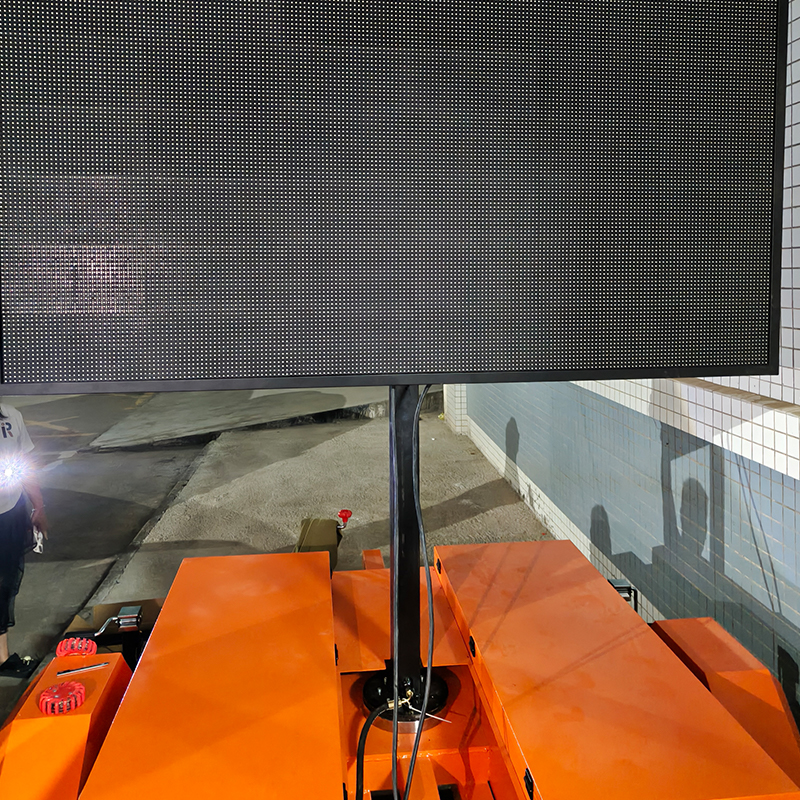

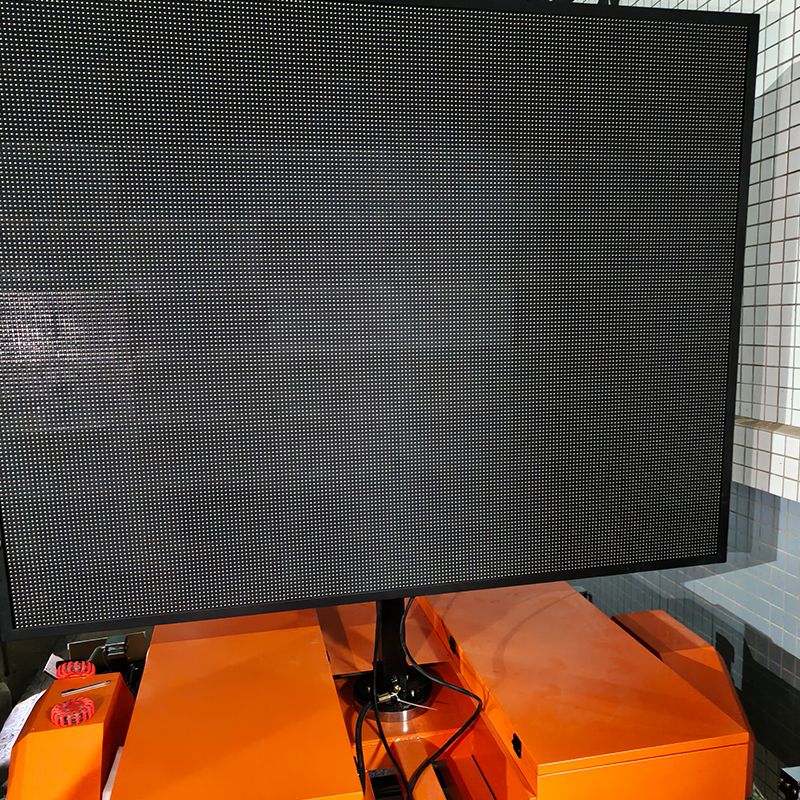

Display
Display Size: 2570mm*1500mm

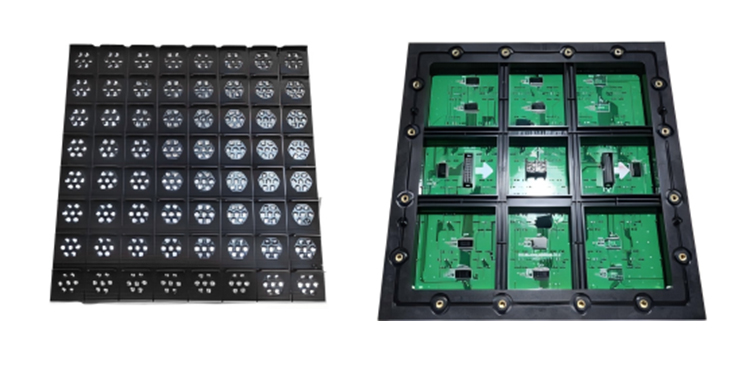

Moudle: P31.25
The display moudle arrange: 10pcs*6pcs
Total module: 60pcs

Driver IC	MBI5124
Pixel pitch	31.25mm
Pixel density	1024 dot/㎡
Pixel configuration	4R2G/6Y single Amber/5 colors 4R2G1B
LED specification	DIP 504
Dimension	(W) 250mm*(H) 250mm
Pixel resolution	(W) 8*(H) 8
HUB	HUB75
Best viewing angle	H＞80 V＞40
Best viewing distance	20-200mm
Working temperature	-20℃~65℃
Working humidity	10%-90%RH, No condensation
Panel power supply	5V
Screen power supply	AC 220V-AC 250V
Maximum power of unit plate	9W-11W/5W-7W/9W-11W
Max power	200W/㎡
Average power	60W/㎡
Driving device	Constant current drive
Scanning mode	Constant
Protection level	≥IP65
Led lamp flatness	≤1mm
Brightness/㎡	≥12000cd
Service life	100000 hours
Product characteristics	LED outdoor direct insertion lamp module, energy saving board design, uniform point separation of lamp beads, over load overcurrent, low current, low power consumption, high brightness, strong penetration, long service life, stable performance, and low light attenuation.
