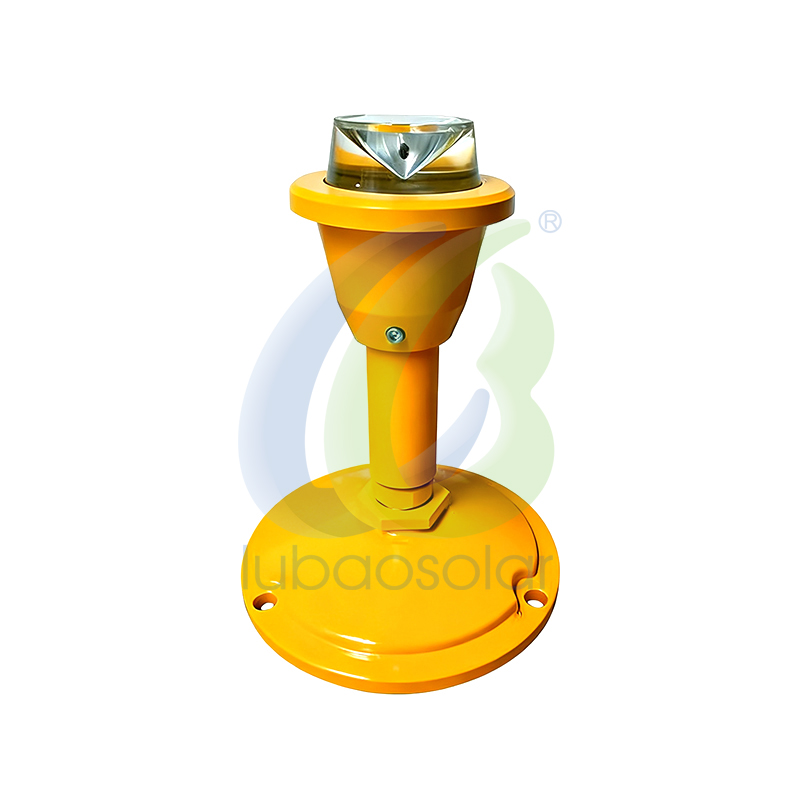

SGZ-2A Taxiway light airport taxiway light taxiway edge lights

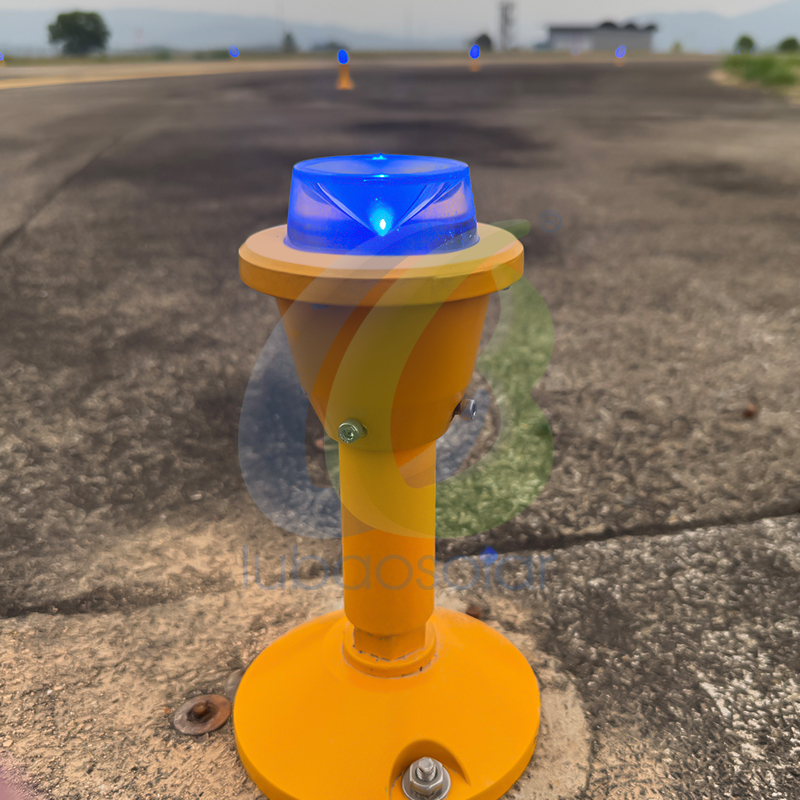

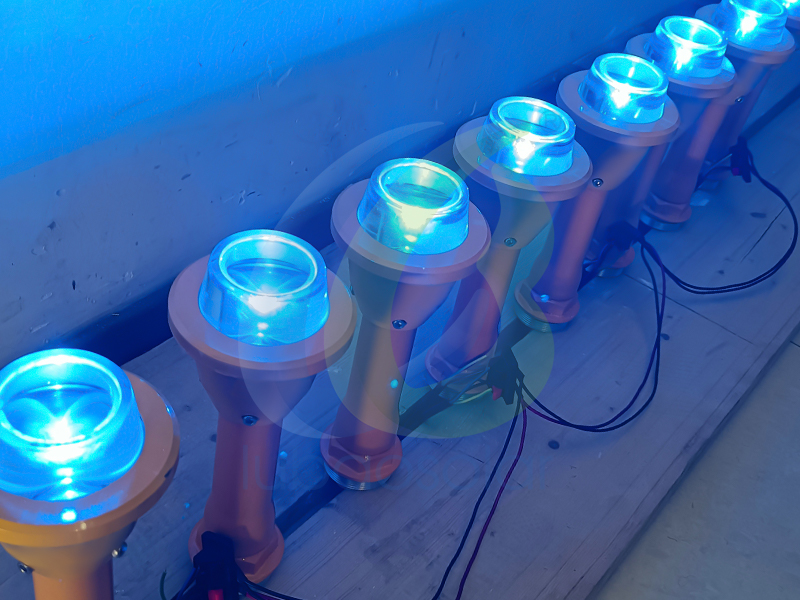

The SGZ-2A Taxiway light airport taxiway light taxiway edge lights features an aviation yellow finish and a durable glass lens with high brightness and anti-aging properties, ensuring uniform light output. It includes a top horizontal display and a frangible rod for safety compliance. With omnidirectional lighting and optional colors (blue, red, green, yellow, white), it serves as taxiway, T-bar, turn-off, or apron light for Category I, II, and III airports.

SGZ-2A Taxiway light airport taxiway light taxiway edge lights-Specifications



• Name: Taxiway light airport taxiway light taxiway edge lights
• Model NO.: SGZ-2A
• Brand name: lubaosolar

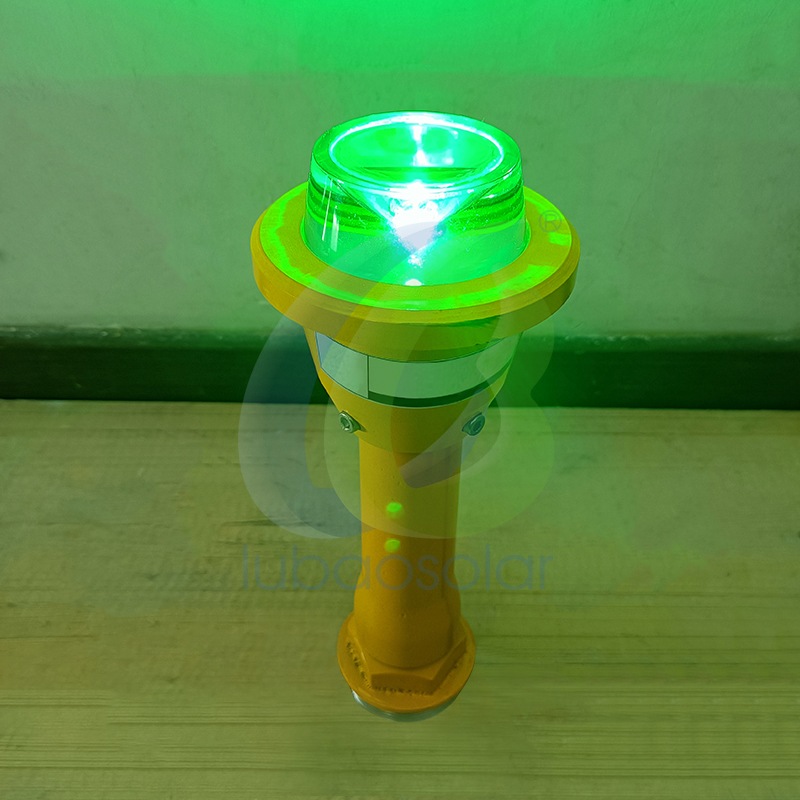

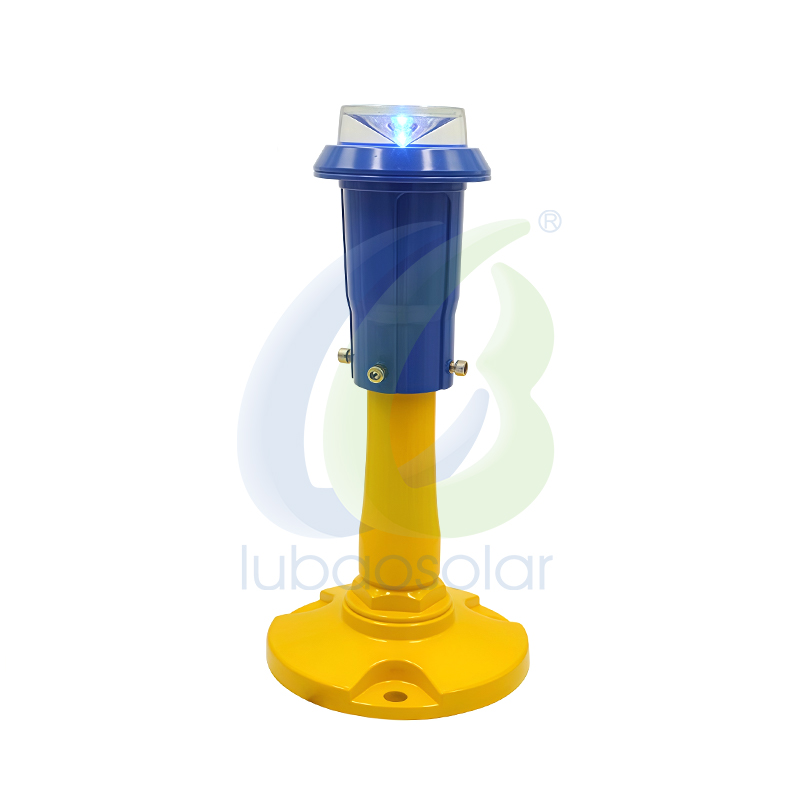

• Color: Housing-yellow, LED-Omnidirectional blue, available in red, yellow, green, white (omnidirectional)
• Size: Base Dia.138mm, H 260mm, light shell Dia.108mm
• Power Supply: 6.6A Constant Current
• Optional Voltage: 220V Optional
• Power Rating: 34VA, 5VA
• Operating Temperature: -55°C ~ +55°C
• Waterproof: IP66
• Wind Resistance: 560 km/h
• Color marking complies with ICAO Annex 14 and FAA AC 150/5345-46.
• Applicability:  I, II, and III airports
• Compliance: International Civil Aviation Organization (ICAO) Annex 14, Volume 1, Section 5.3.4 (Fourth Edition, July 2004), as well as the U.S. Federal Aviation Administration (FAA) Advisory Circulars E-982 and AC 150/5354-46B.

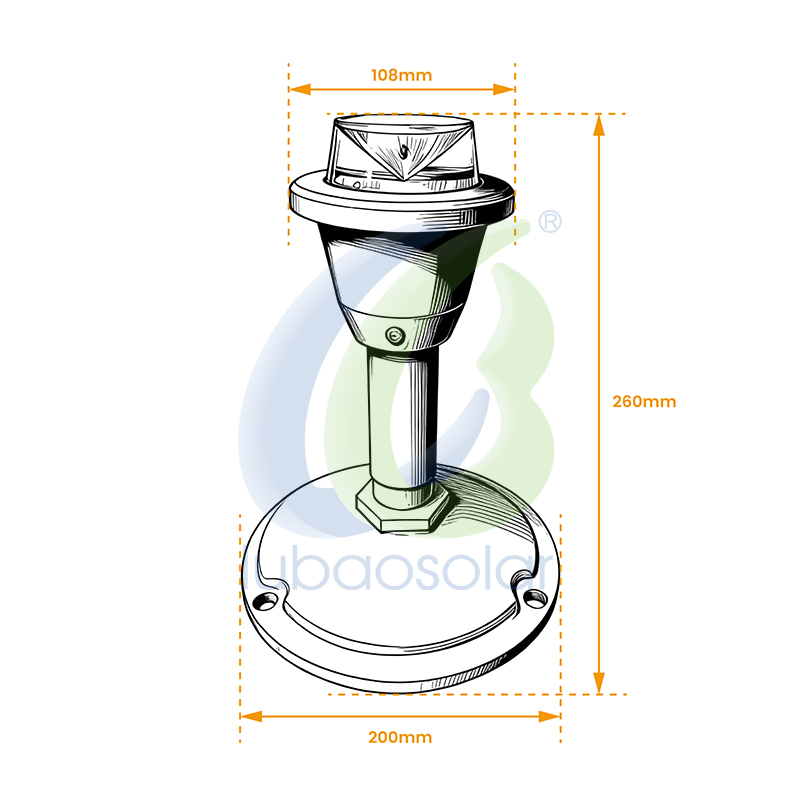

SGZ-2A Taxiway light airport taxiway light taxiway edge lights-Size

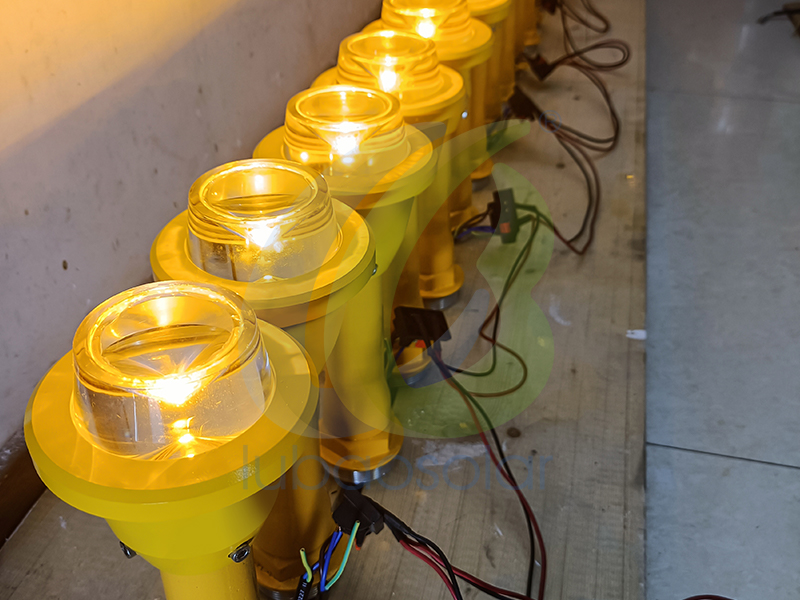

SGZ-2A Taxiway light airport taxiway light taxiway edge lights-Factory Production
