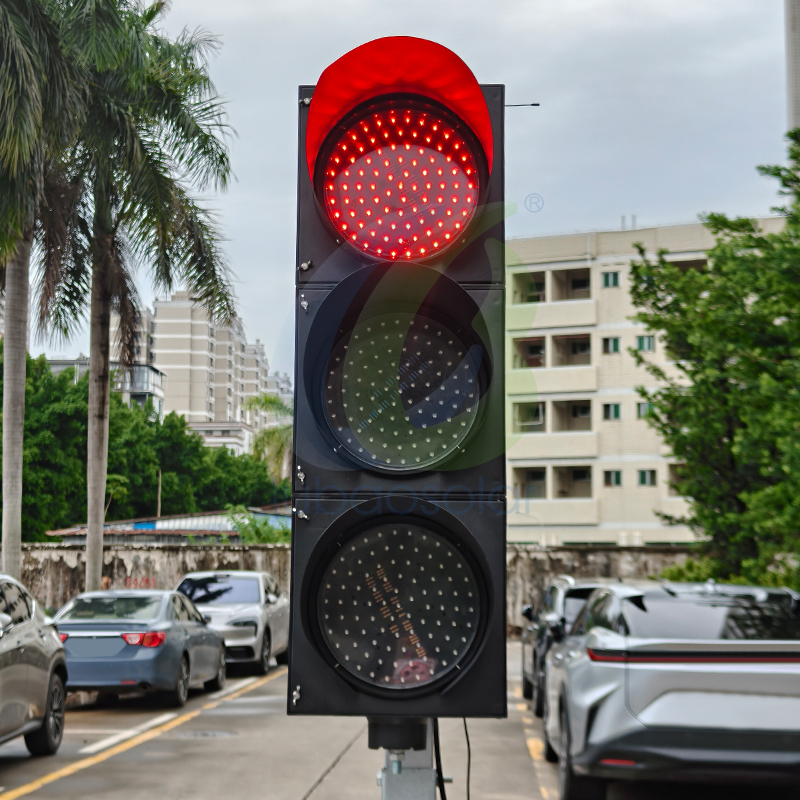

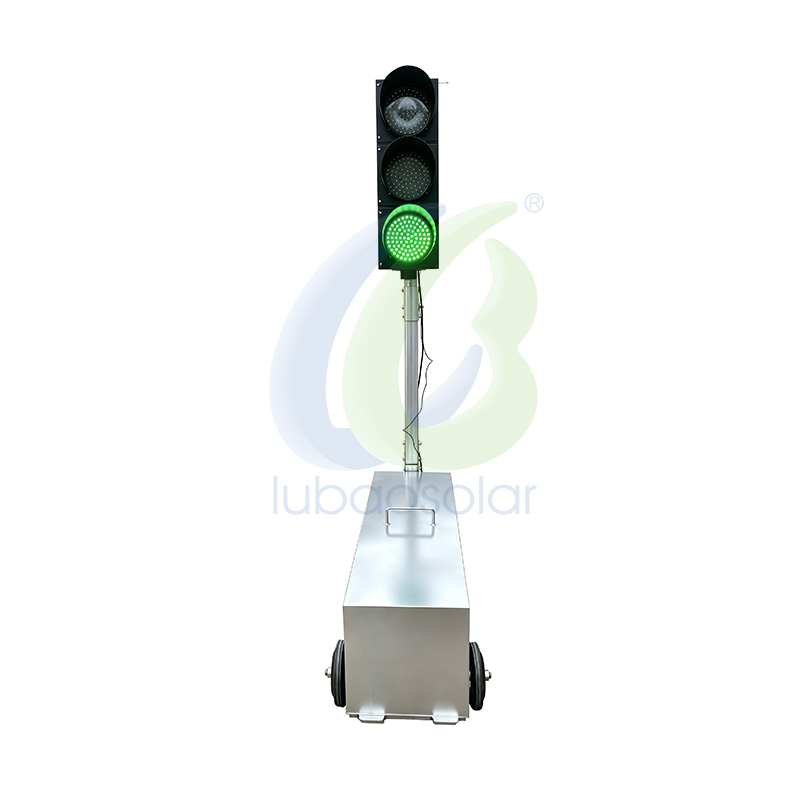

Foldable temporary traffic light portable traffic lights system

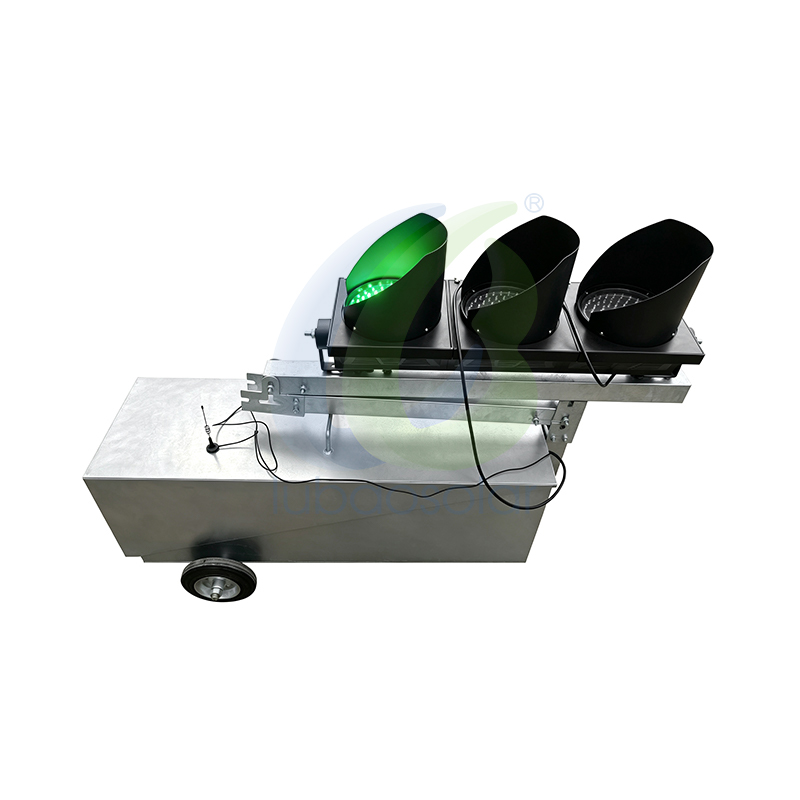

This Foldable temporary traffic light portable traffic lights system supports synchronized operation between units with adjustable timing – no cumulative signal drift. Foldable and quick to deploy, it's ideal for construction zones, emergency works, and temporary road control. Available in 200mm or 300mm sizes, with customizable power supply, battery, and base options. Contact us for project‑specific configurations.

Foldable temporary traffic light portable traffic lights system-Specifications



• Name: Foldable temporary traffic light portable traffic lights system
• Brand name: lubaosolar
• Size: Dia.200mm (Customizable)
• Battery: 12V 65A (Customizable)
• Rated voltage: 7V–30V, tolerance approx. ±0.1V
• System phases: Supports up to 8 phases, with flexible multi‑light deployment for any phase configuration
• Outputs: 3 channels for vehicle lights, 4 channels for pedestrian lights
• Maximum total load: 4A
• Brightness: 4 adjustable levels — 25%, 50%, 75%, 100%
• Protection: Low‑voltage protection (cut‑off at 9V), overload protection, short‑circuit protection
• Protection rating: IP65
• Deployment requirements: 1 master unit per system, with multiple slave units allowed. No same‑frequency signal source within 10m of a slave unit. System density ≤10 systems per km².
• Customization: Custom options available. Please provide your project drawings and contact us for further discussion.

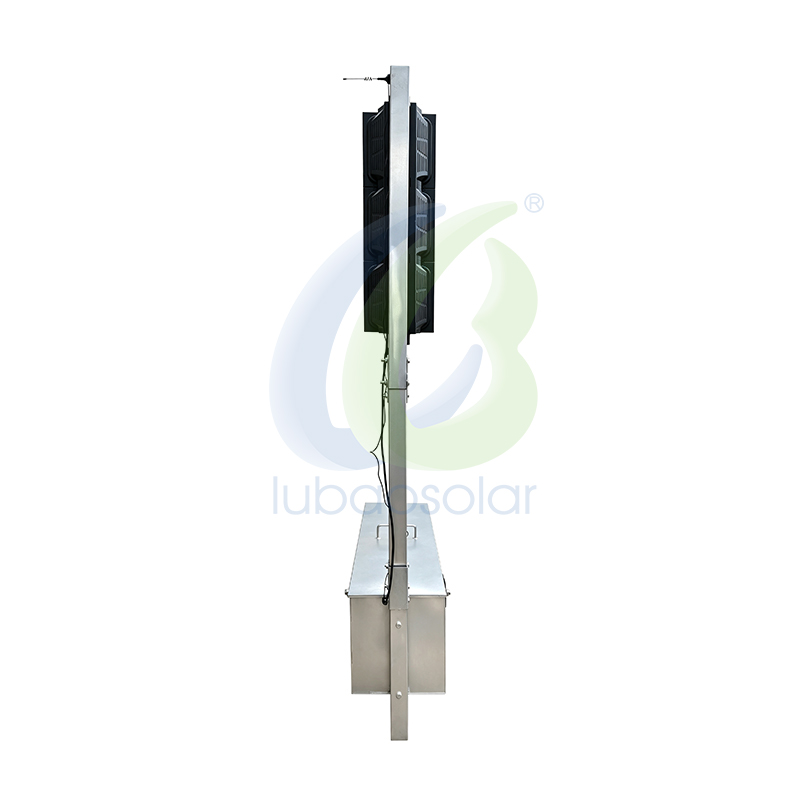

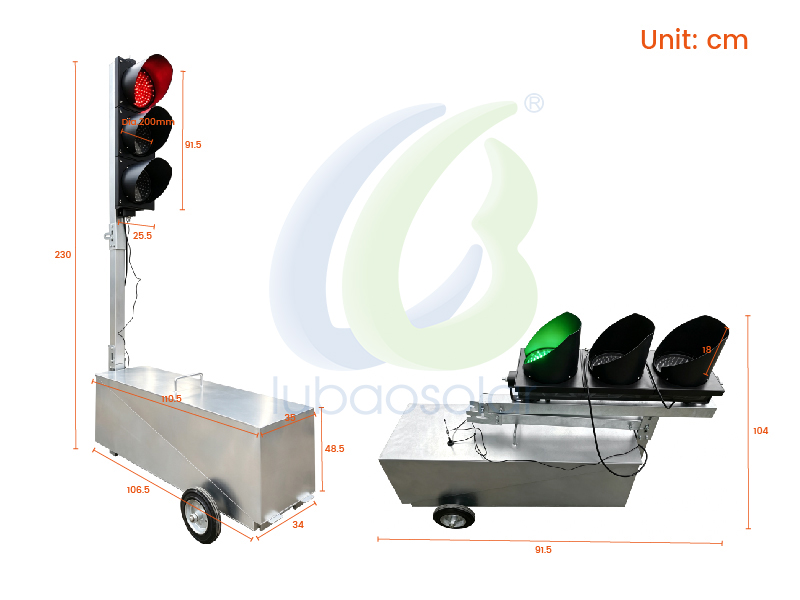

Foldable temporary traffic light portable traffic lights system-Size

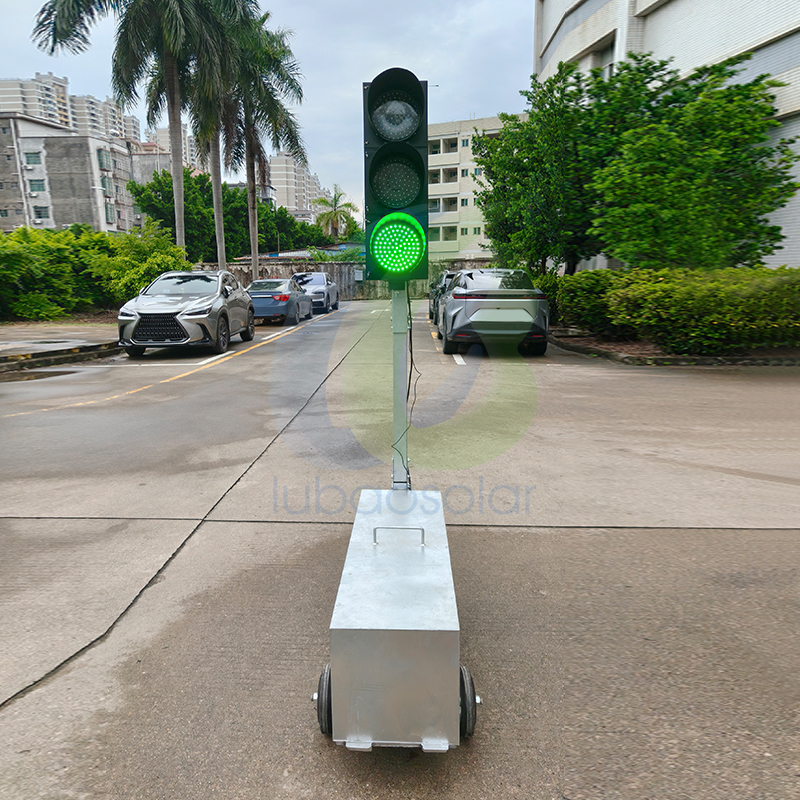

Foldable temporary traffic light portable traffic lights system-Installation
