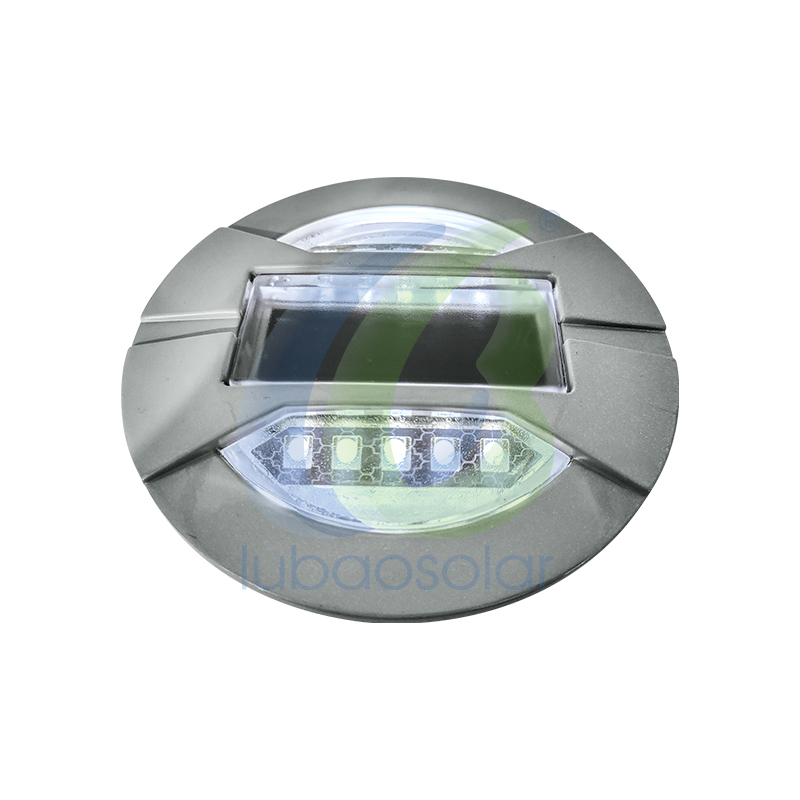

Model No: LS-38
Solar aluminum reflective road marker
The LS-38 Solar Aluminum Reflective Road Marker enhances road safety by providing clear visibility using solar-powered LED lights, eliminating the need for external power. Compared to traditional wired markers, it offers easy installation and is ideal for remote or off-grid areas. Built for durability, the LS-38 operates in temperatures from -20°C (customizable) to 50°C and functioned reliably at -16°C in tests. Its corrosion-resistant aluminum shell and fully encapsulated waterproof design ensure long-lasting performance. For more details, visit lu-bao.com.
Quantity :

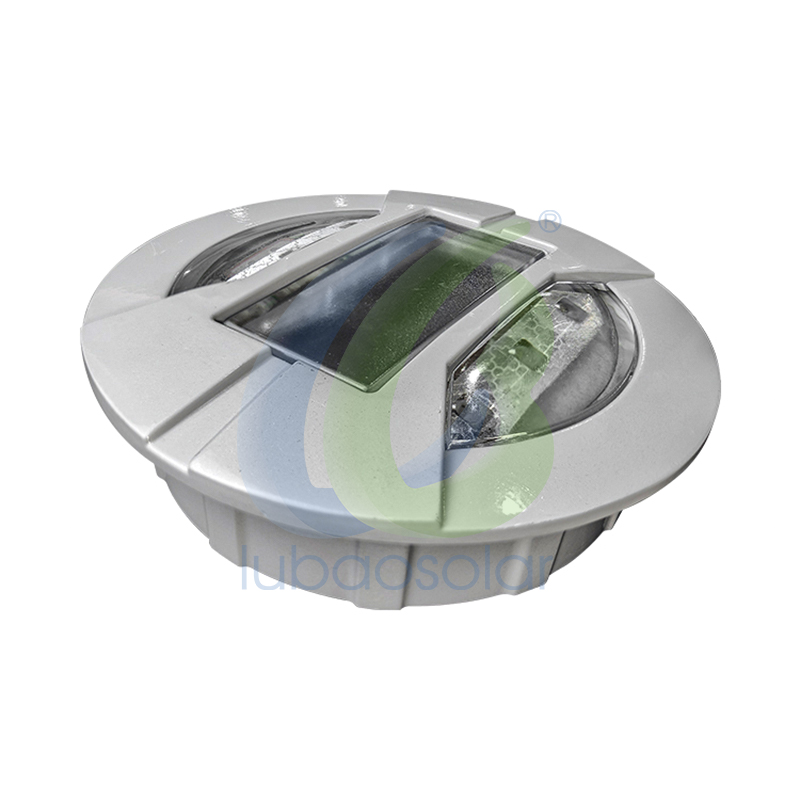

LS-38 Solar aluminum reflective road marker
The LS-38 Solar Aluminum Reflective Road Marker enhances road safety by providing clear visibility using solar-powered LED lights, eliminating the need for external power. Compared to traditional wired markers, it offers easy installation and is ideal for remote or off-grid areas. Built for durability, the LS-38 operates in temperatures from -20°C (customizable) to 50°C and functioned reliably at -16°C in tests. Its corrosion-resistant aluminum shell and fully encapsulated waterproof design ensure long-lasting performance. For more details, visit lu-bao.com.
LS-38 Solar aluminum reflective road marker-Specifications
- Name: Solar aluminum reflective road marker
- Model NO.: LS-38
- Brand name: lubaosolar
- Material: Corrosion resistant aluminum and polycarbonate
- Size: Dia.150mm*H 44mm
- LED Qty: (Solar charging)Single sided-1/2/3/5 pcs, double sided- 2/4/6/10 pcs, For the customized wiring-powered LS-38, the maximum LED quantity is 28 pcs.
- Type: Embedded
- Waterproof: IP68
- Solar panel: 0.8W 5.5V, If you do not select our built-in AI standby mode, the device must be charged once every 60 days while in warehouse storage to maintain its battery vitality performance.
- Working mode: Flashing, synchronous flashing, steady lighting

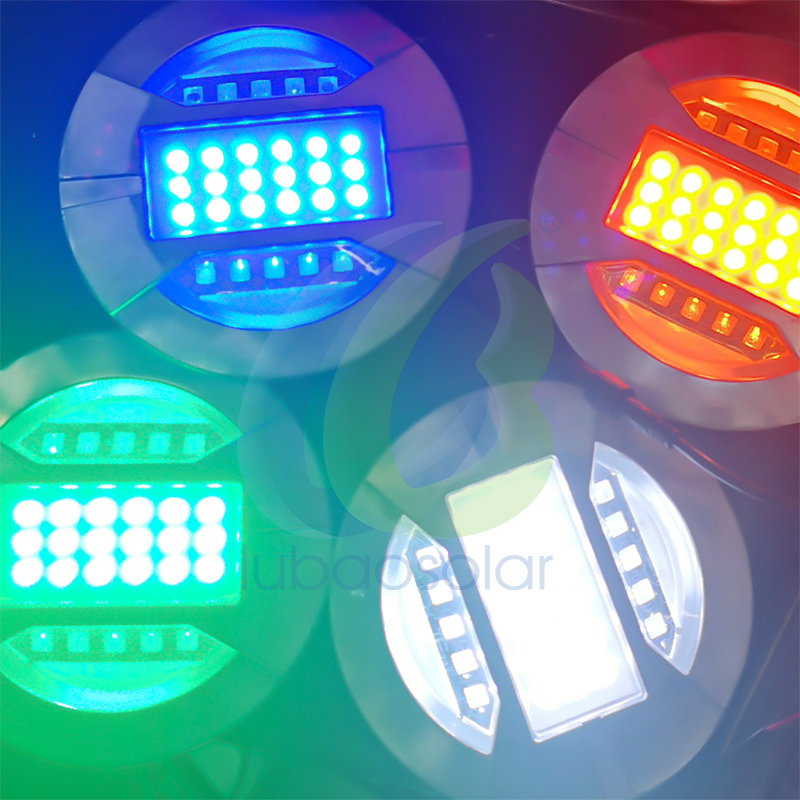

- Color: red, yellow, blue, green, white, white can be chosen as warm white or cool white, it can be customized in two colors, such as yellow on one side and white on the other.
- Acceptable temperature: -40℃~70℃
- After installation, its height is only about 11.5 millimeters with no noticeable protrusions, and the embedded design also prevents damage from snow shovels (Can be customized specifications).

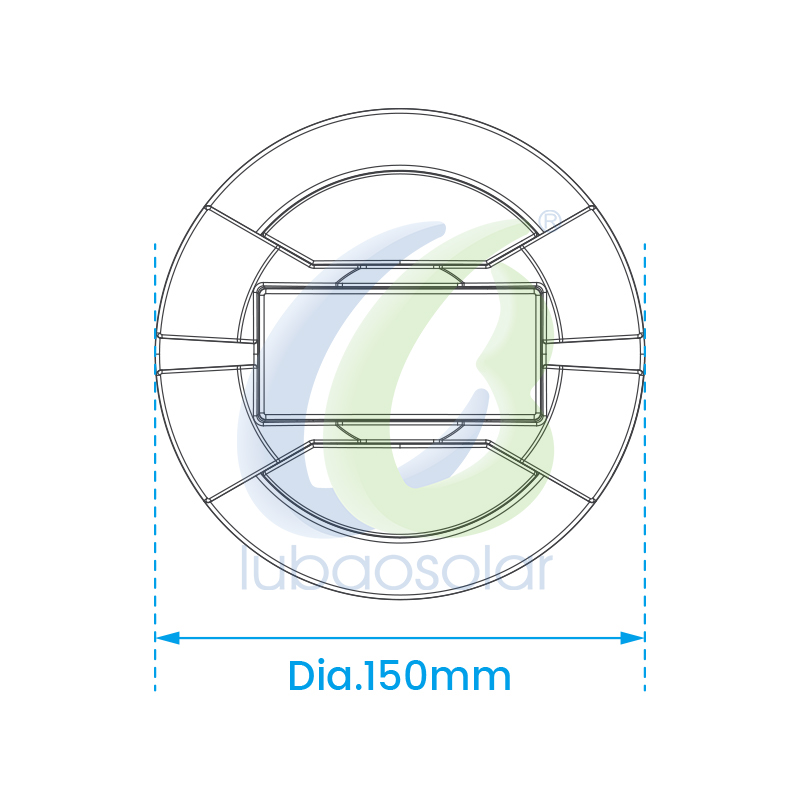

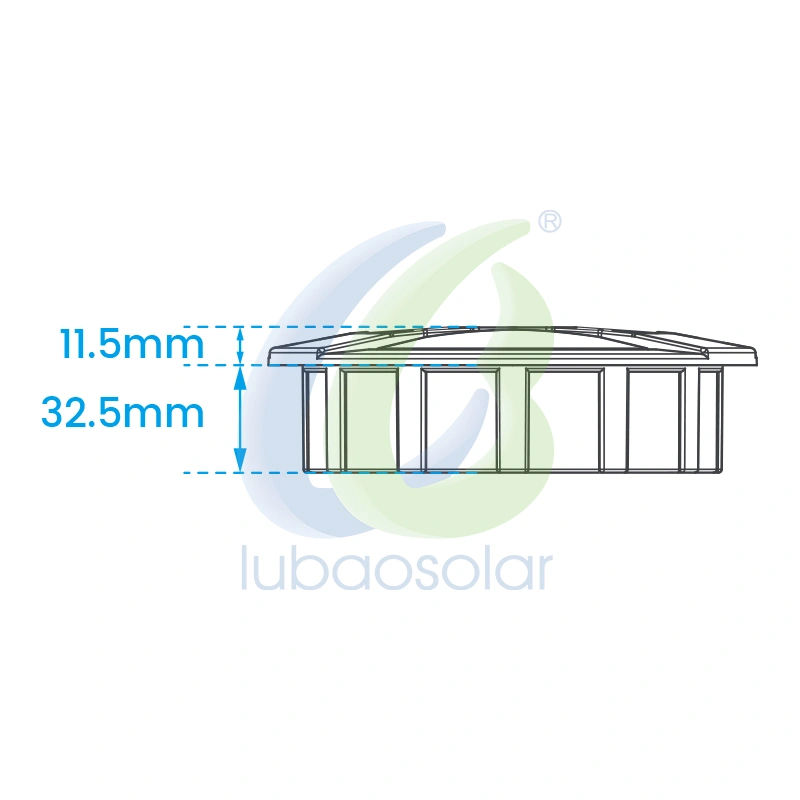

LS-38 Solar aluminum reflective road marker-Size
LS-38 Solar aluminum reflective road marker-Test and Factory Production

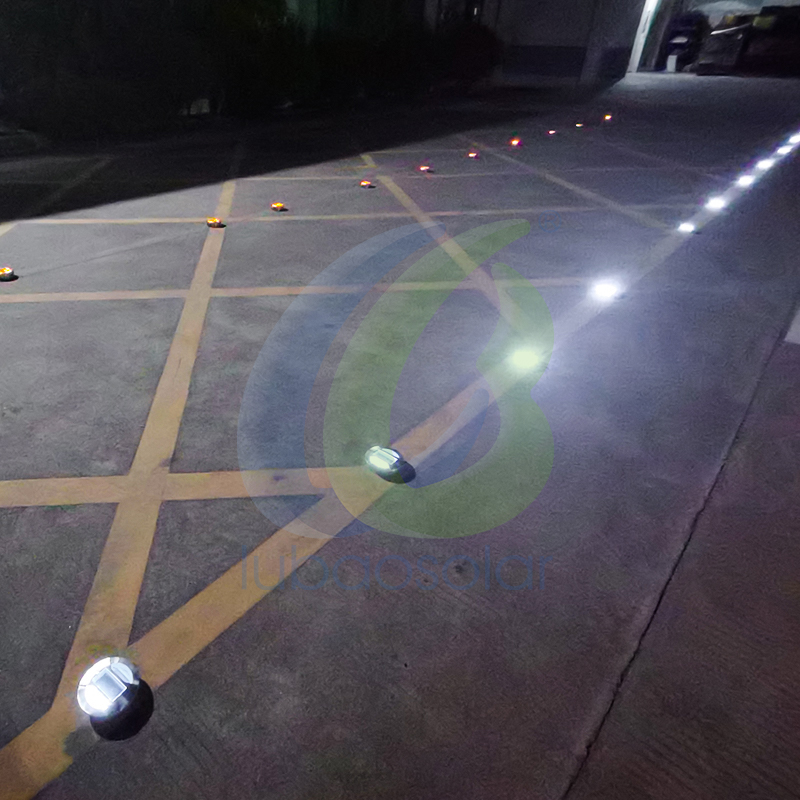

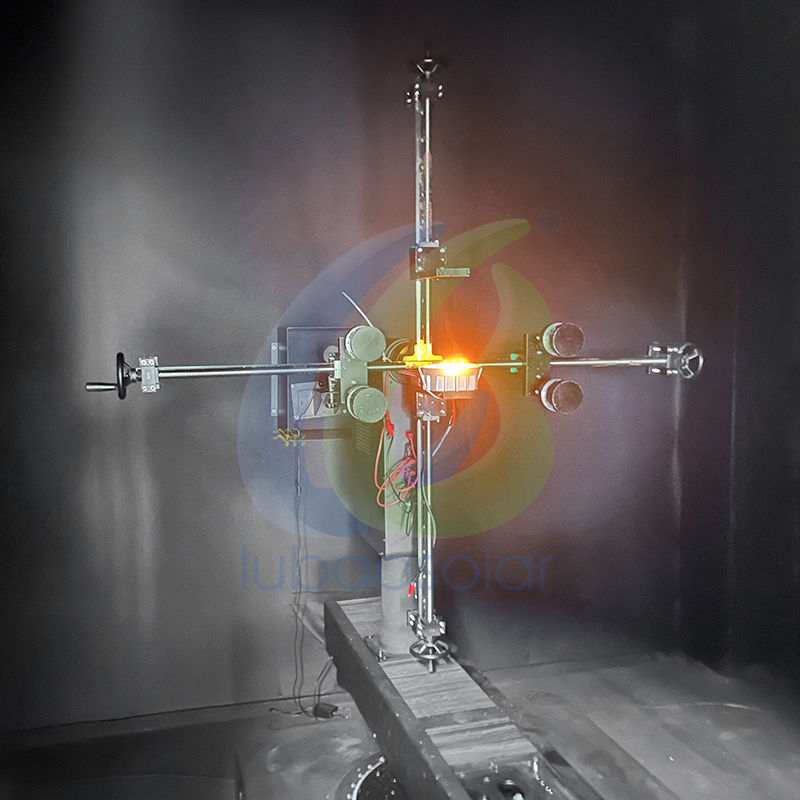

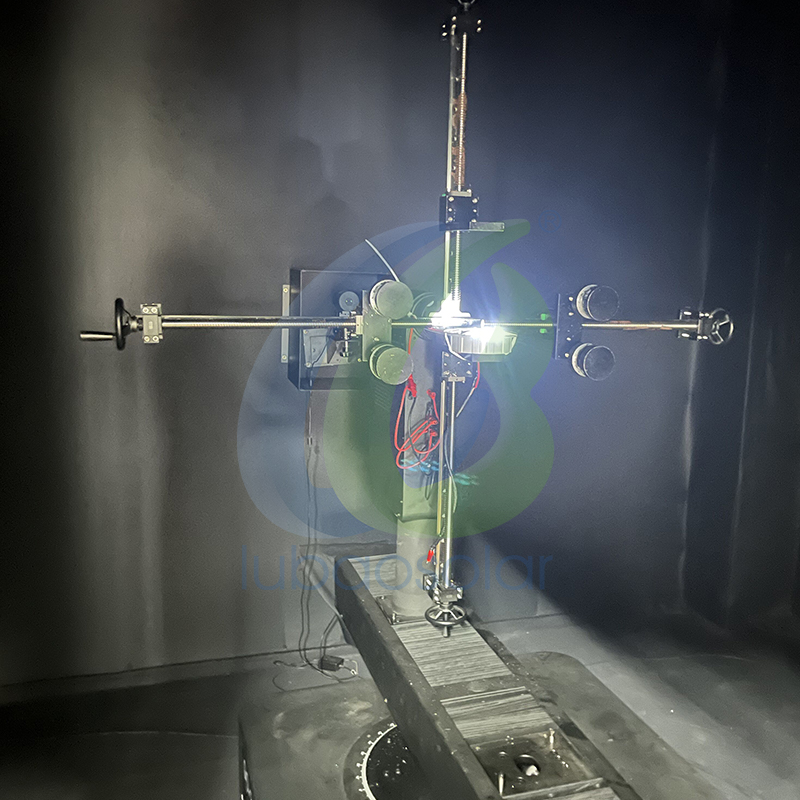

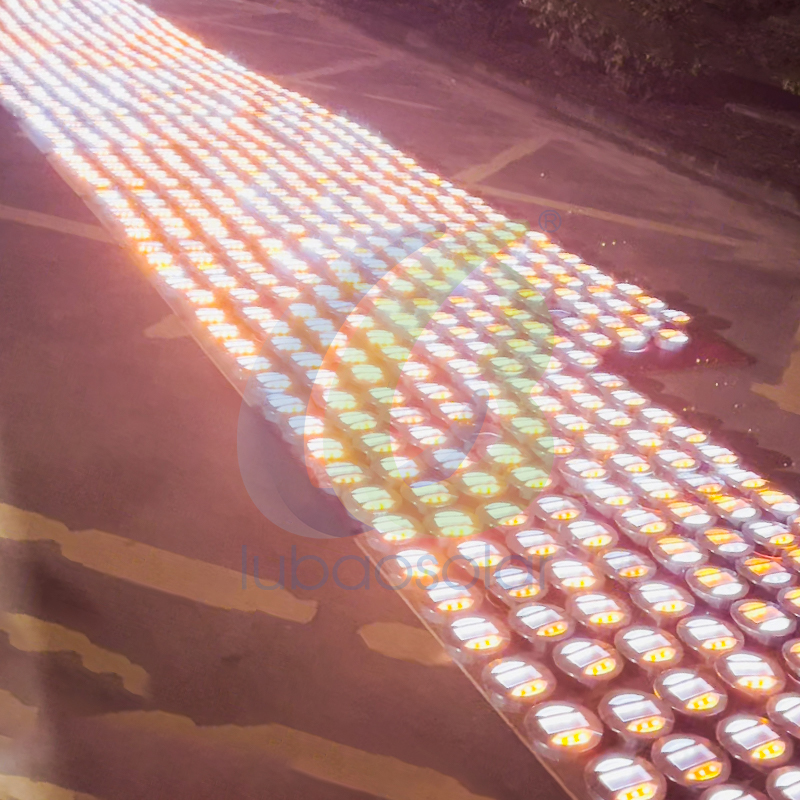

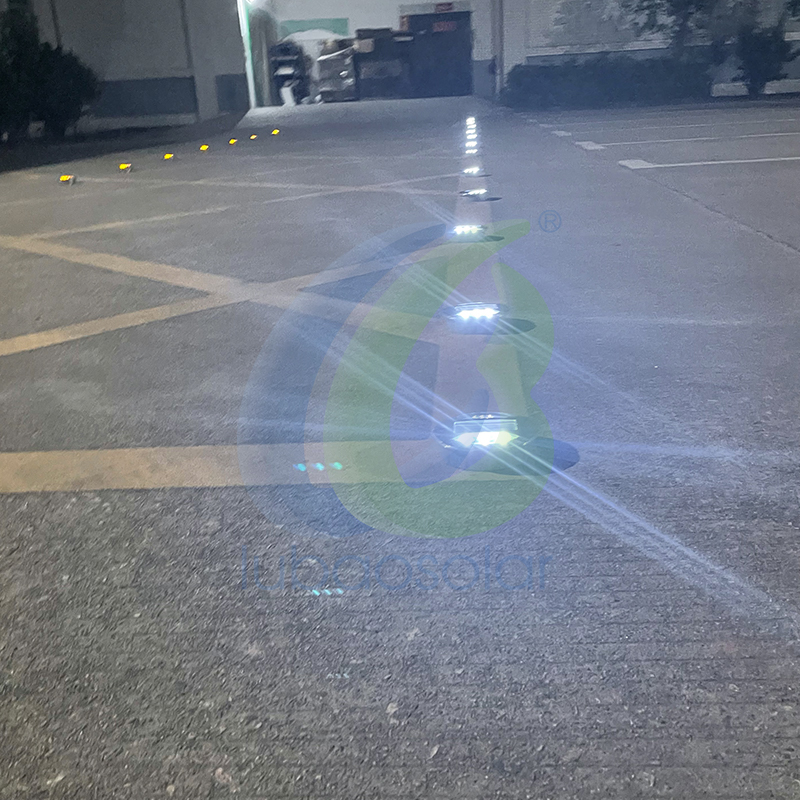

The photos were taken during the brightness testing of the LS-38 solar street light at the testing facility and during the testing of the working mode (synchronous flashing) downstairs from our factory.
LS-38 Solar aluminum reflective road marker-Type
Power supply method

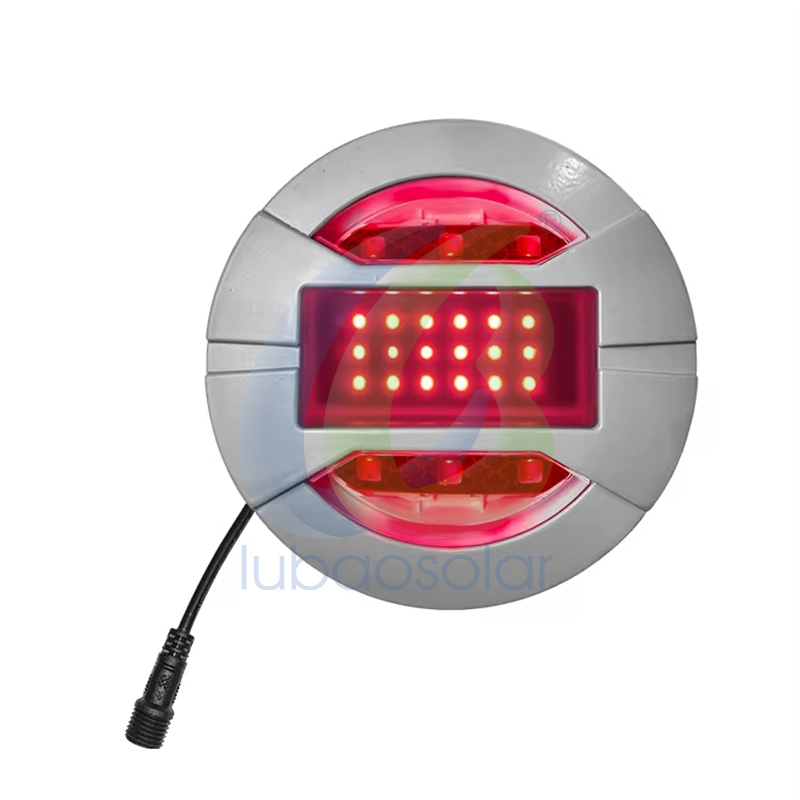

The power supply method includes solar charging or wired connections, customized wiring-powered; the number of LEDs can be customized, with a maximum of 28 pcs. Consult customer service for more information.

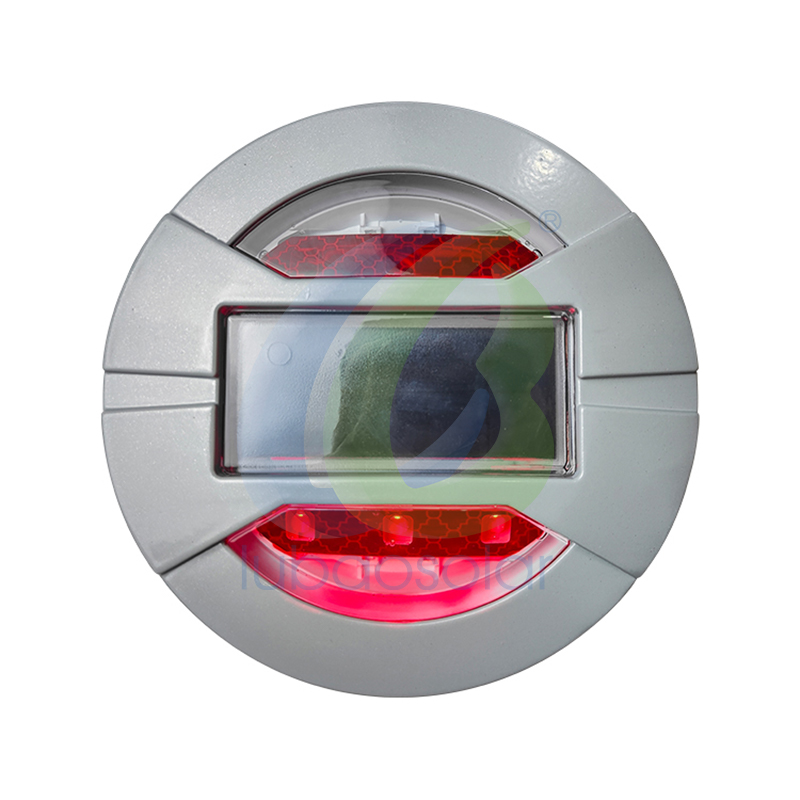

Single sided and double-sided lighting

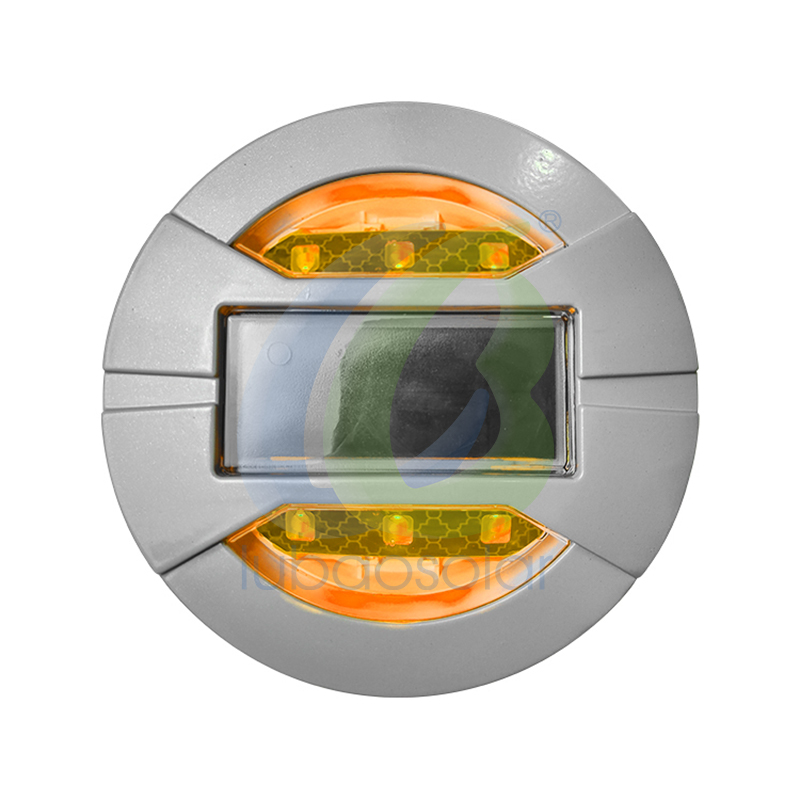

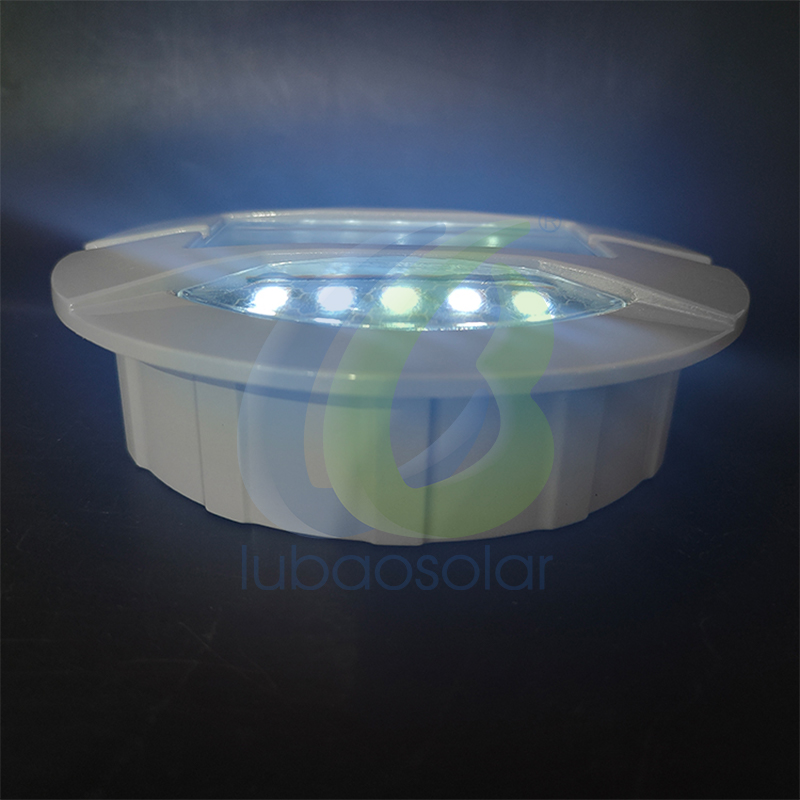

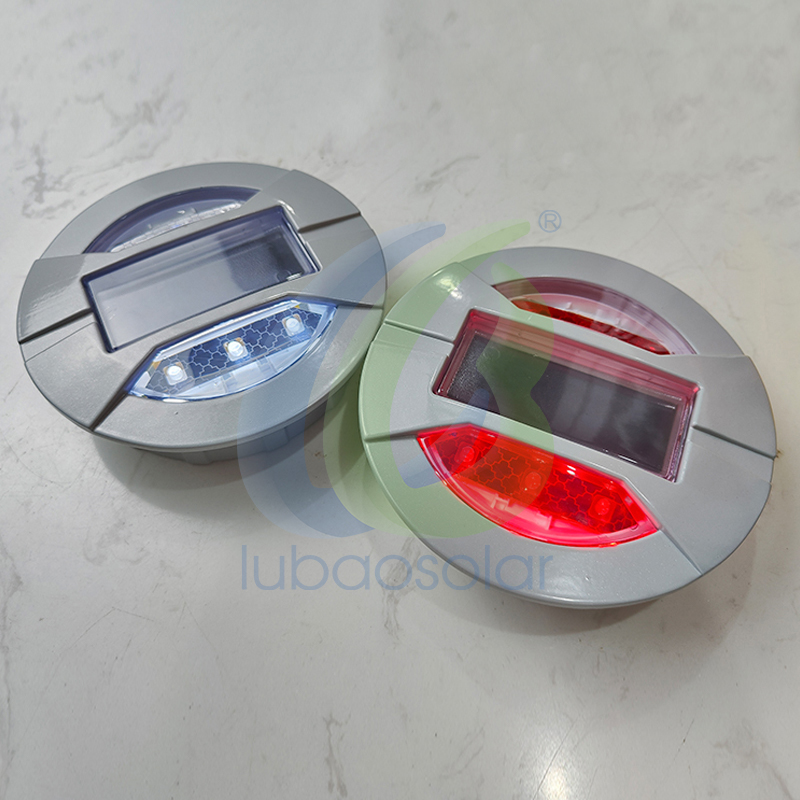

The LS-38 Solar aluminum reflective road marker on the left is double-sided flashing, and many people choose this one (3 pcs LED on each side, for a total of 6 pcs LED). The one on the right is a single-sided flashing LS-38 Solar aluminum reflective road marker.
Working mode

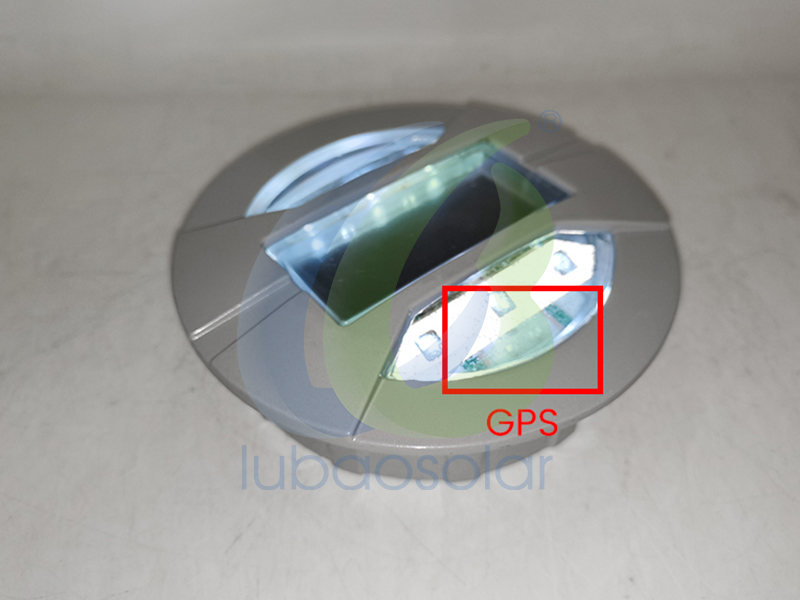

You can also customize the working mode to GPS synchronous flashing with a built-in GPS.
You can also customize the working mode to GPS synchronous flashing with a built-in GPS.
LS-38 Solar aluminum reflective road marker-Advantage
Can withstand extreme temperatures

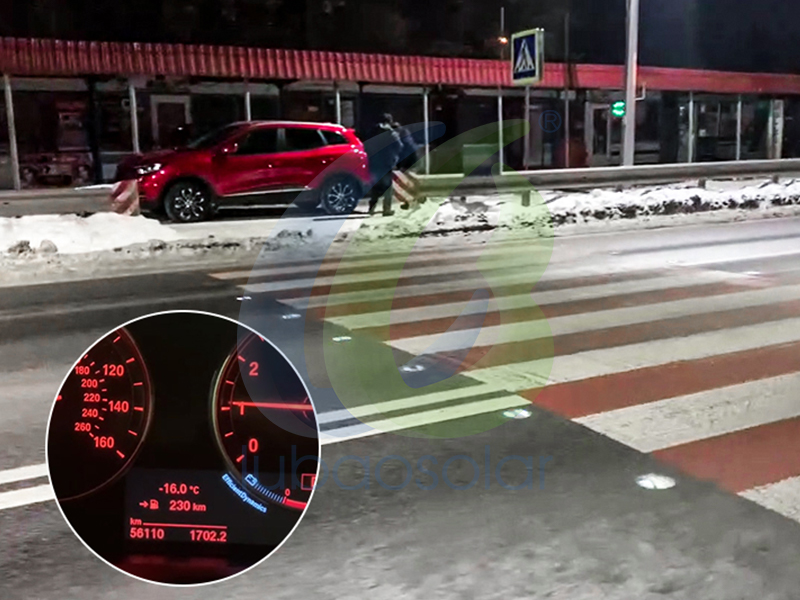

It operates normally in temperatures ranging from -20°C (customizable) to 50°C. In the case photo, it was -16°C, and the solar road markers were still functioning properly.
It operates normally in temperatures ranging from -20°C (customizable) to 50°C. In the case photo, it was -16°C, and the solar road markers were still functioning properly.
Multiple protection

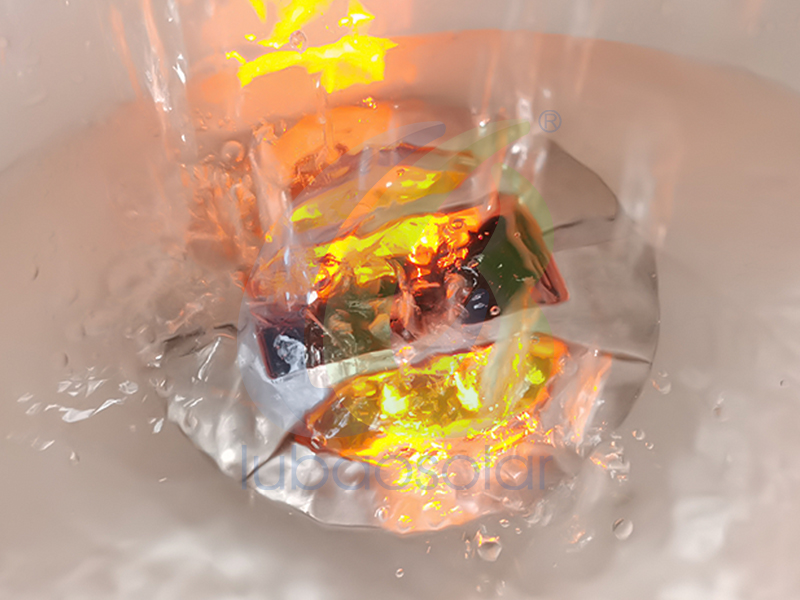

The shell is made of corrosion-resistant treated aluminum, with all components encapsulated in an inner shell and injected with waterproof material, ensuring comprehensive waterproofing.
The shell is made of corrosion-resistant treated aluminum, with all components encapsulated in an inner shell and injected with waterproof material, ensuring comprehensive waterproofing.

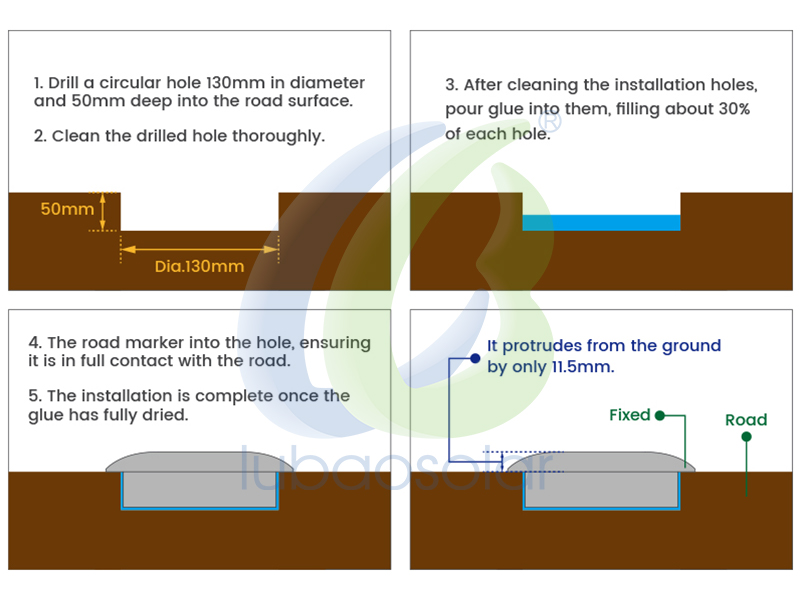

LS-38 Solar aluminum reflective road marker-Installation
1. Drill a circular hole 130mm in diameter and 50mm deep into the road surface.
2. Clean the drilled hole thoroughly.
3. After cleaning the installation holes, pour glue into them, filling about 30% of each hole.
4. The road marker into the hole, ensuring it is in full contact with the road.
5. The installation is complete once the glue has fully dried.
2. Clean the drilled hole thoroughly.
3. After cleaning the installation holes, pour glue into them, filling about 30% of each hole.
4. The road marker into the hole, ensuring it is in full contact with the road.
5. The installation is complete once the glue has fully dried.

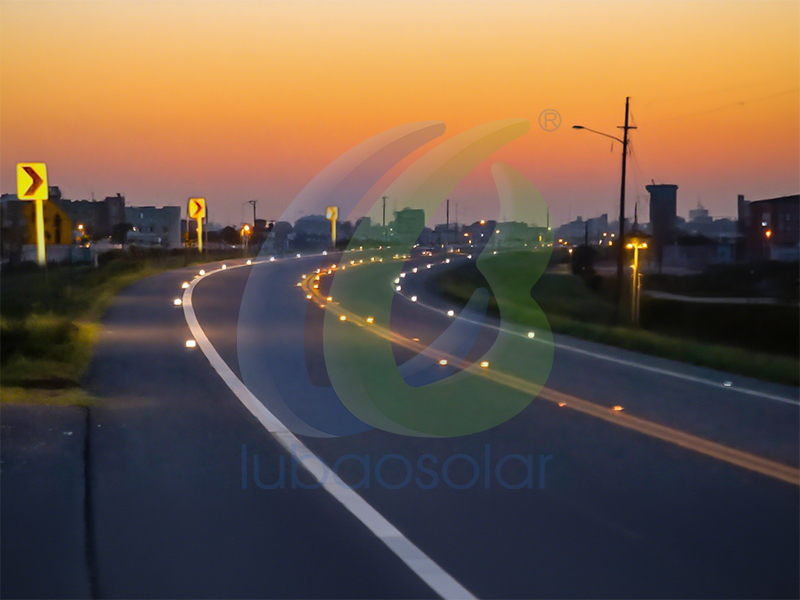

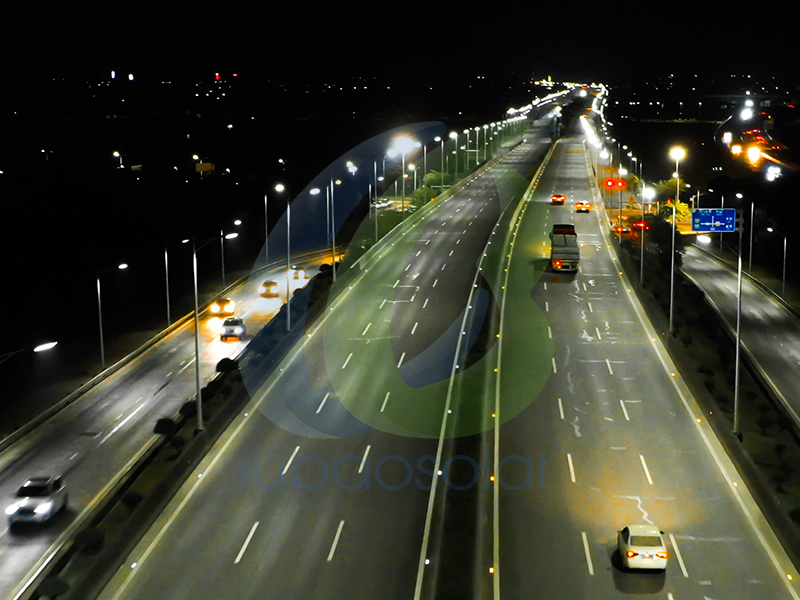

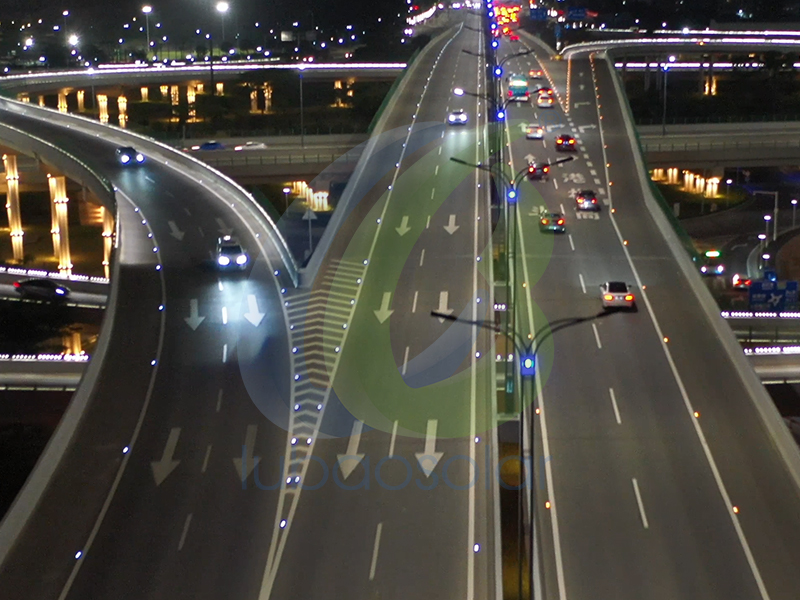

LS-38 Solar aluminum reflective road marker-Case
