Model No: Solar Traffic Signs
Warning signs for solar energy construction LED arrow guide signs
minimum order :
1 piece
Country of Origin :
yantian port
Quantity :
- Place of Origin:Guangdong, China
- Brand Name:lubaosolar
- Model Number:Solar Traffic Signs
- LB-S21 Solar photovoltaic panel:6V 8W
- LB-S22 Solar photovoltaic panel:6V 8W
- LB-S23 Solar photovoltaic panel:6V 10W,6V 4W
- LB-S26 Solar photovoltaic panel:6V 8W
- LB-S2U Solar photovoltaic panel:6V 5W
- LB-S30-01 Solar photovoltaic panel:18V 15W
- LB-S28 Solar photovoltaic panel:6V 5W
- LB-TTS01 Solar photovoltaic panel:6V 5W
- Australian Solar SignA Solar panel:Efficient monocrystalline silicon
- Australian Solar SignB Solar panel:Efficient monocrystalline silicon
Instruction
Warning signs for solar energy construction LED arrow guide signs
The world without light is dark, but the light pollution caused by the bright light cannot be underestimated. light pollution has invaded the lives of all people everywhere. After nightfall, the dazzling neon lights, lightbox advertisements, and signs on the shopping mall and hotel floors, as well as the incandescent lighting on construction sites with night permits, illuminate the night as if it were daytime, making it dazzling. Some strong beams of light even shoot straight into the clouds, making the night as if it were daytime. The light pollution caused by night lights has made people turn a blind eye to the signs relying on passive reflection. So the subsequent development is solar energy signage. During the day, solar panels absorb sunlight, convert it into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches), and the LED emits bright light to outline the pattern and convey traffic information.
The solar energy signage is powered by monocrystalline silicon solar cell modules, without the need for grid support and geographical restrictions, making it very convenient to use! It uses solar cells to convert daytime sunlight into electrical energy and store it on the sign board. When night falls, the light is dim, or the visibility is poor in rainy and foggy weather, the LED on the sign board automatically starts flashing, and the light is particularly bright and eye-catching, with a strong warning effect.
Especially on powerless highways, frequently moving construction sites, and dangerous areas, this type of actively illuminated sign reflects a special warning effect. Its visible distance is five times that of a sign made of reflective film, and its dynamic effect cannot be replaced by ordinary signs.
Product Specification

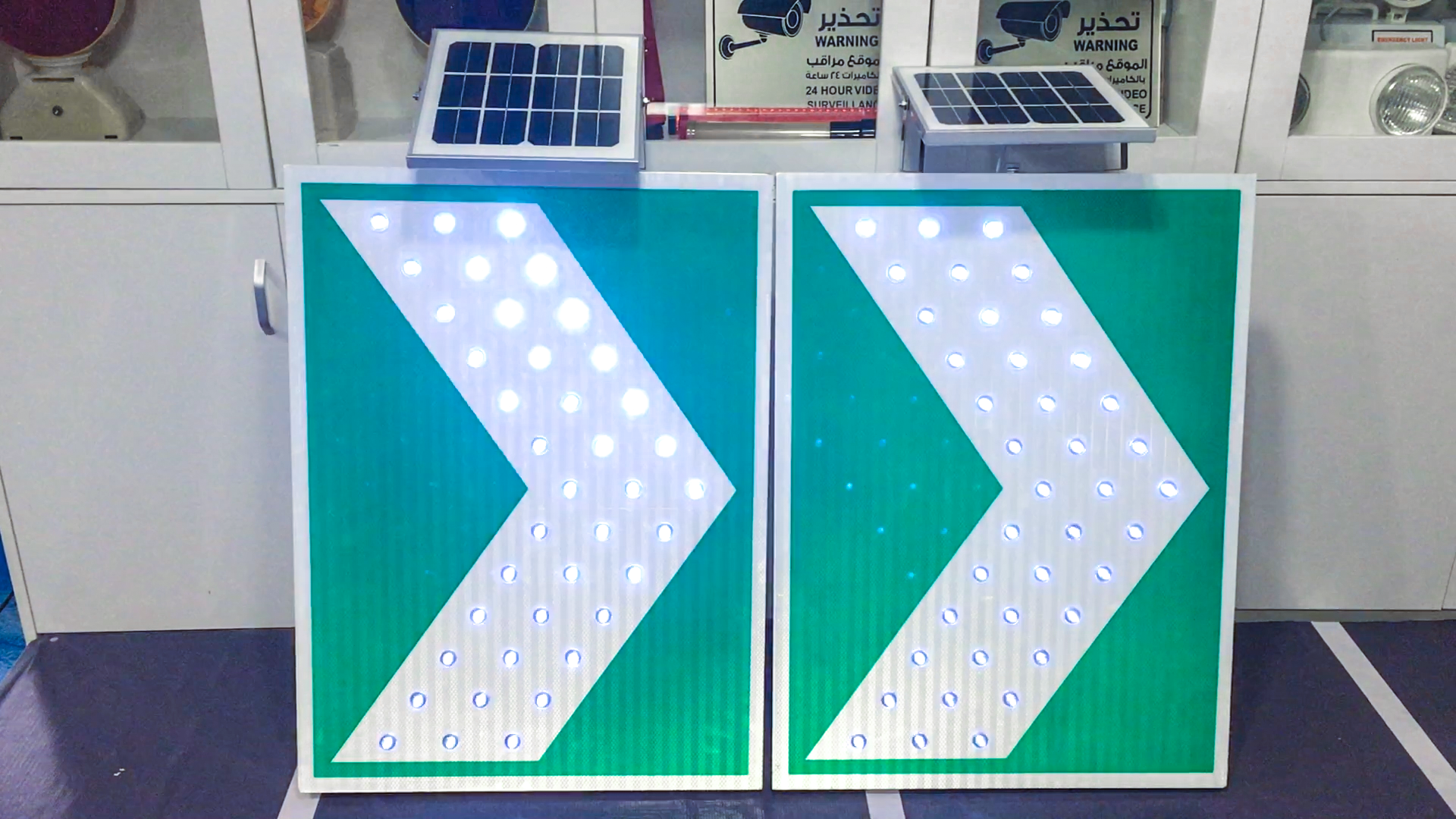

Name | LB-S21 Solar Linear Guidance Sign |
Material | Aluminum |
Dimensions | width 600mm * height 800mm/width 400mm"height 600mm |
LED color | white or red (customizable) |
Luminous method | Reflective mold+LED luminescence |
Visible distance | >800m |
Battery | Lithium battery 3.7V6000mAh |
Solar photovoltaic panel | 6V8W |
Reflective film | 3MEGP |
Waterproof grade | IP65 |

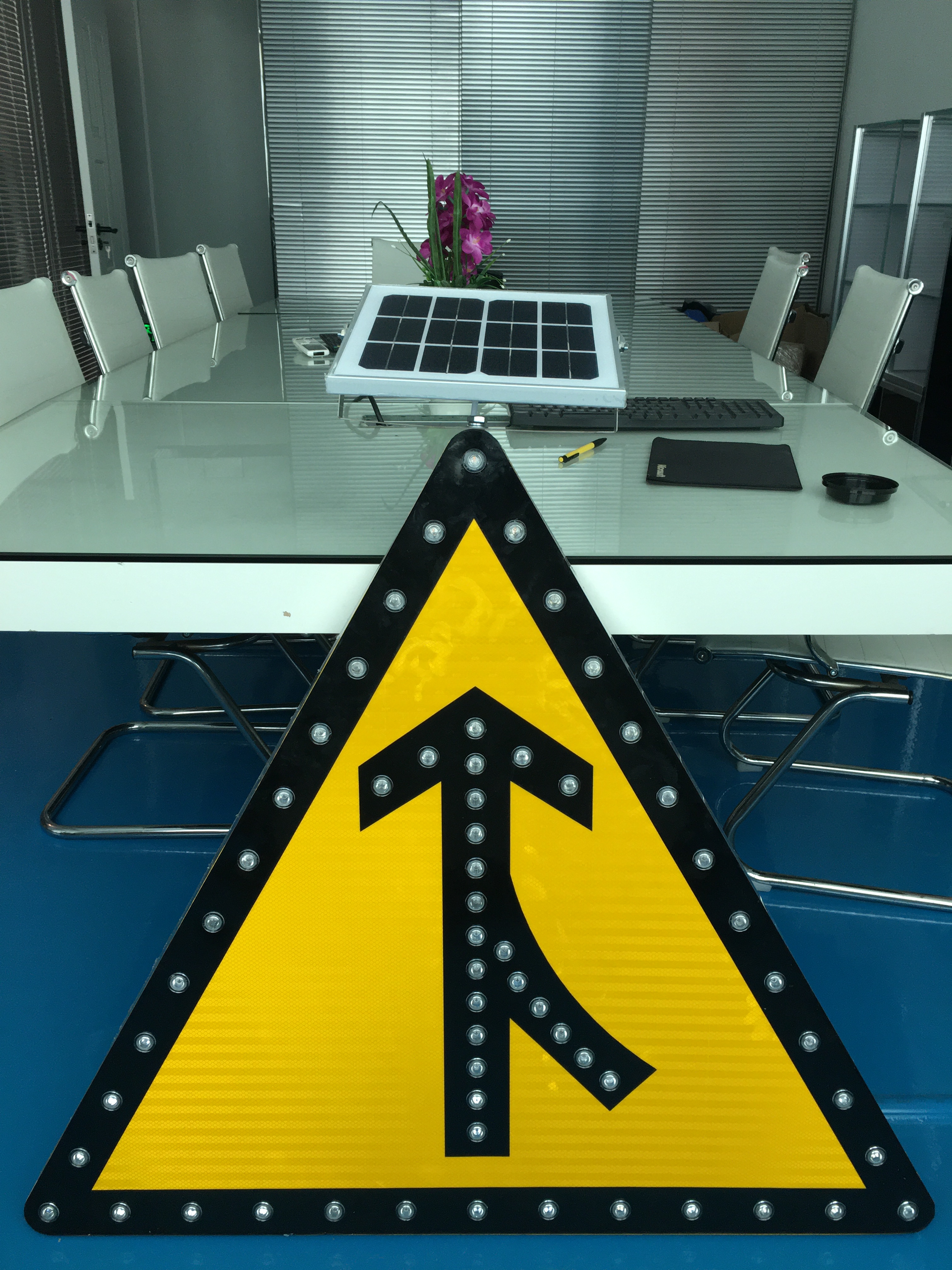

Name | LB-S22 Solar Convergence Signboard |
Material | Aluminum |
Size | 1100mm Triangle |
LED color | Yellow (customizable) |
Illumination method | reflective film reflection+LED illumination |
Visible distance | >800m |
Solar photovoltaic panel | 6V8W |
Battery | Lithium battery 3.7V6000mAh |
Waterproof grade | IP65 |
Reflective film | 3MEGP |

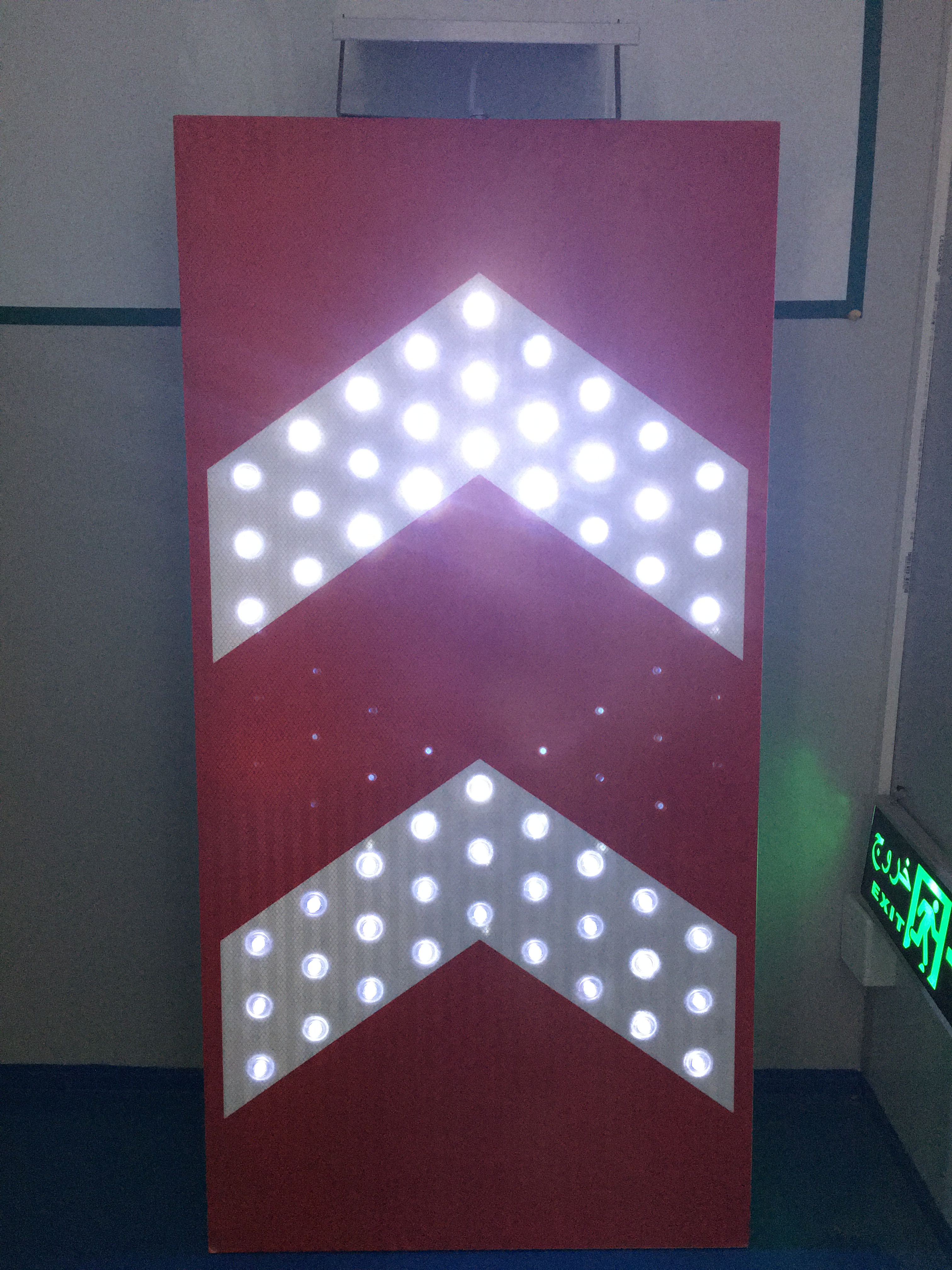

Name | LB-S23 Solar Energy Diversion Sign | |
Dimensions | 1200mm * 400mm, 800mm * 400mm | |
Photovoltaic panel | 6V10W, 6V4W | |
Working mode | The flashing mode of the sign can be selected as explosive flashing or synchronous flashing | |
Battery | Lithium battery 3.7V10AH, 3.7V6AH | |
Charging mode | Solar charging during the day, automatic light on when the light dims | |
After fully charged, it can be used for 7 days with the light on in rainy weather | ||

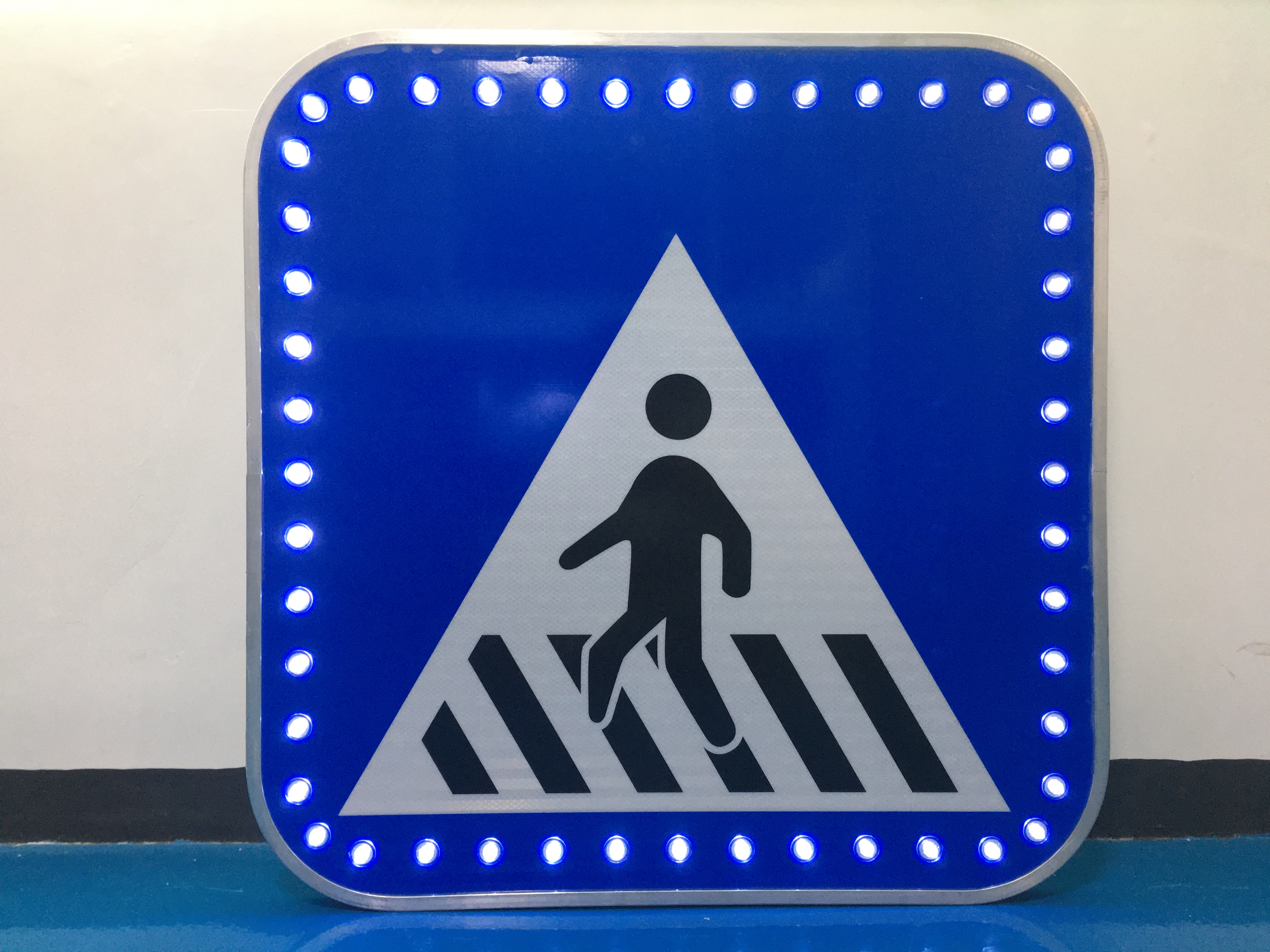

Name | LB-S26 Solar Pedestrian Crossing Sign |
Size | 800mm * 800mm (customizable) |
Material | Aluminum |
LED color | customizable |
Illumination method | reflective film reflection+LED illumination |
Solar photovoltaic panel | 6V8W |
Visible distance | >800m |
Battery | Lithium 3.7V6000mAh |
Waterproof grade | IP65 |
Reflective film | 3MEGP |

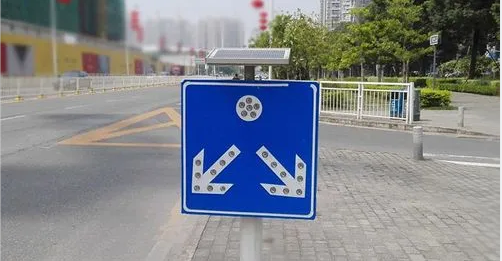

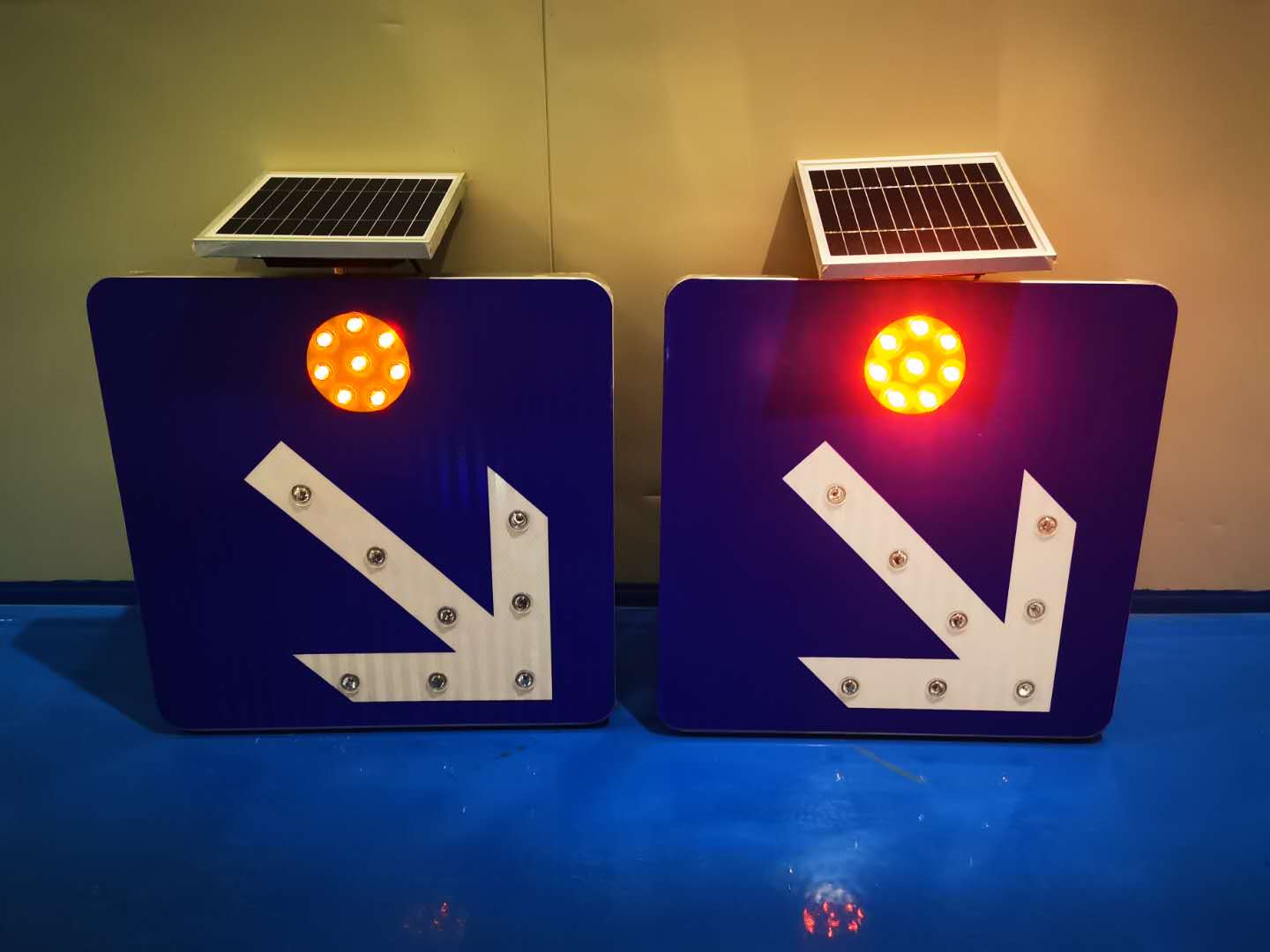

Name | LB-S2U Solar Guide Sign |
Color | Blue (customizable) |
Size | 600 * 600800 * 8001200 * 1200mm (customizable) |
Illumination method | reflective film reflection+LED illumination |
Material | Aluminum |
Visible distance | >800m |
Solar panel | 6V5W |
Battery | 3.75000mAh |
Reflective film | 3MEGP |
Waterproof grade | IP65 |

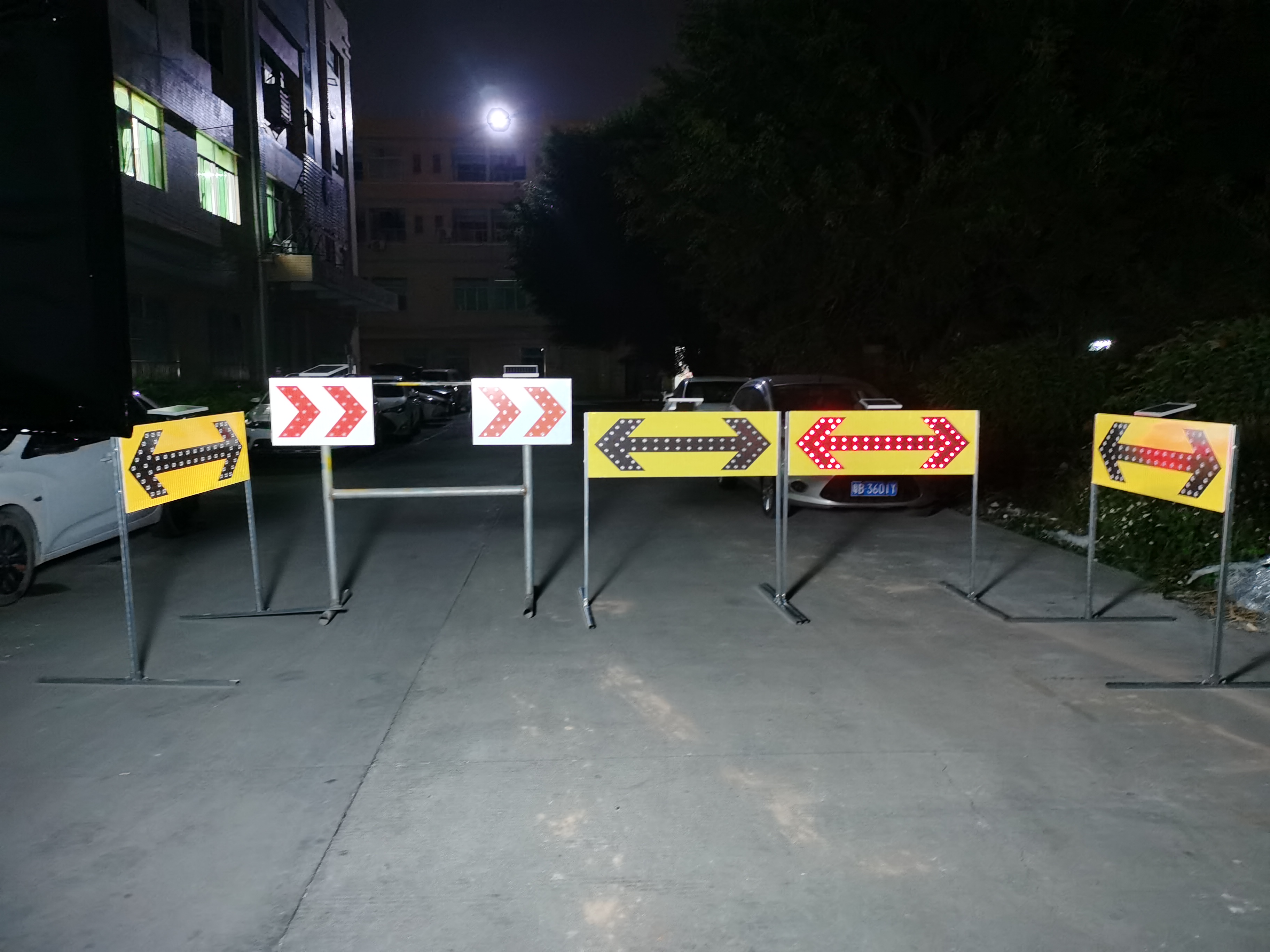

Name | LB - S30-01 Solar Guidance Sign |
Size | 1200mm * 400mm (size does not include iron frame) |
Solar panel | 18V15W |
Battery | Lithium battery 12V8Ah |
Illumination method | reflective film reflection+LED illumination |
Number of lamp beads | 60pcs |
Visible distance | >800m |
Waterproof grade | IP65 |
Reflective film | yellow, black 3MEGP |

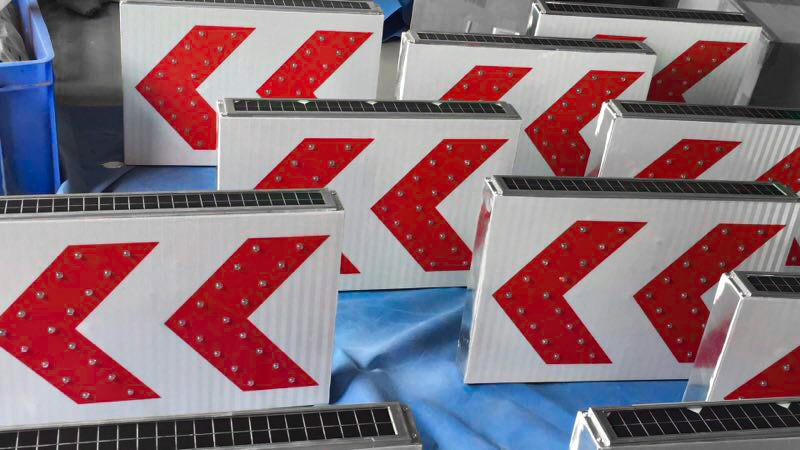

Name | LB-S28 Solar Linear Guidance Sign | |
Size | optional 400mm * 600mm, 600mm * 800mm | |
Photovoltaic panel | 6V5W | |
Battery | 3.7V10AH, 3.7V6AH | |
Working mode | flashing mode can be selected, including burst and synchronous flashing | |
Charging mode | Solar charging during the day, automatic light on when the light dims | |
After fully charged, it can be used for more than 7 days with the light on in cloudy and beautiful weather | ||

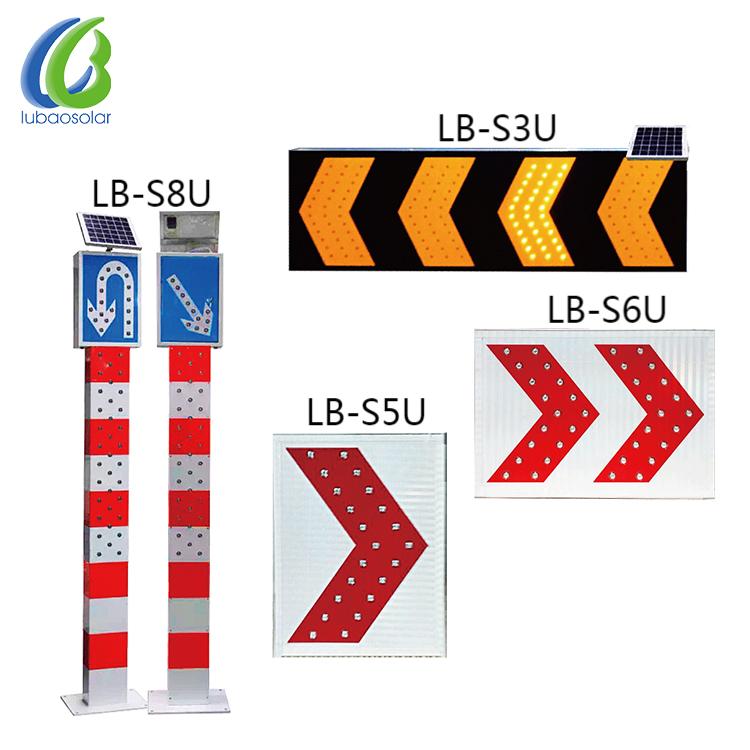

Name | Solar signage |
Model | LB-S3U, LB-S5U, LB-S6U ,LB-S8U |
Character size (long *negative*height) | LB-S3U (1800mm*400mm/1800mm*500mm/1800mm*600mm) LB-S5U (1800mm*600mm/1800mm*800mm ) LB-S6U (1800mm*400mm/1800mm*600mm ) LB-S8U (470mm*35mm*470mm ) |
Column size (length * width * height) | LB-S8U (207mm*12mm*1250mm) |
Working mode | 24 hour flashing or automatic flashing at night |
Battery | Lithium polymer 7.4V5Ah |
Solar panel | 12V 5W |
Visible distance | >1000m (at night) |
Working hour | Can be used for more than 10 days after being fully charged |
Light source | 5mm LED Beads 14 μ |

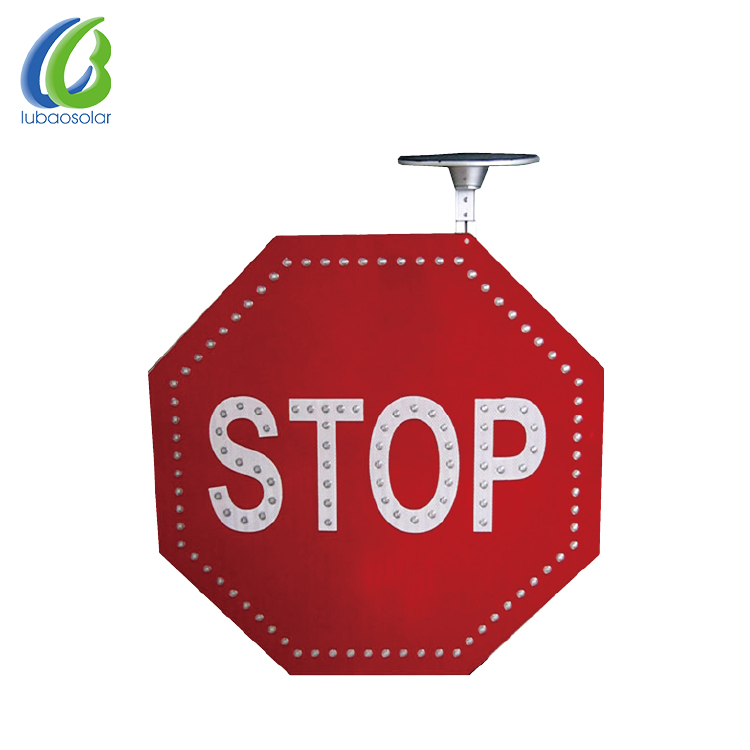

Name | LB-TTS01 European Solar STOP Sign |
Material | 6061 aluminum material |
Thickness | 8mm |
Size | 800x800mm/750x750mm/600x600mm |
LED light source | 10mm LED beads 85pcs 95pcs |
Circular solar panel material | A-grade monocrystalline silicon |
Circular solar panel diameter | 243mm in diameter |
Power | 6V5W |
Battery | Lithium battery 3.7V10.5Ah |
Reflective film | 3MHP reflective film |
Working hours | >240 hours |
Sight distance | >800m |
Waterproof grade | IP66 |
Working mode | flashing |
Blinking frequency | 60 times/minute |

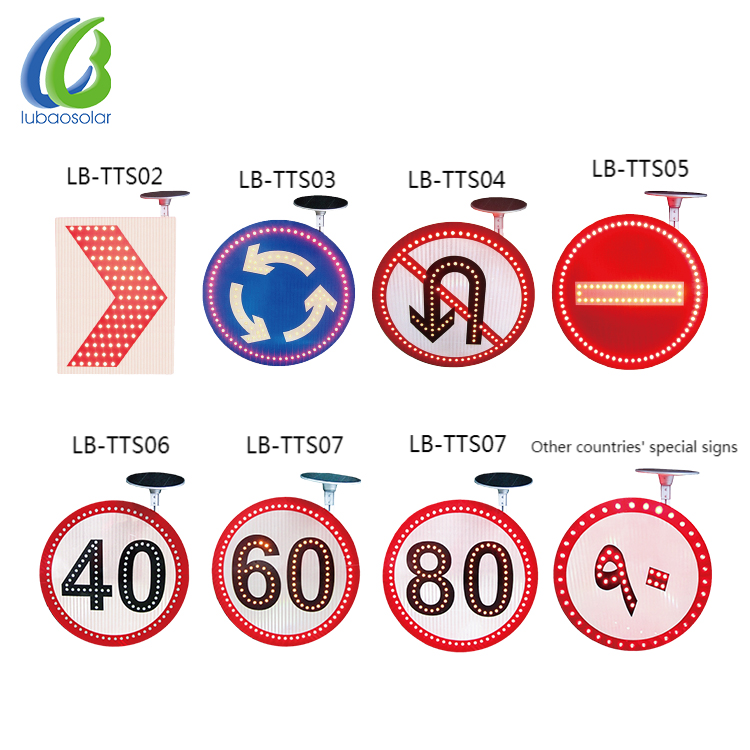

Name | Australian Solar Sign |
Model | LB-TTS02 Single Arrow Australian Solar Sign LB-TTS03 Roundabout Sign Australian Solar Energy Sign LB-TTS04 Prohibition of Turning Around Australian Solar Sign LB-TTS05 No Passage Australian Solar Sign LB-TTS06 Speed Limit 40 Australian Solar Sign LB-TTS07 Speed Limit 60 Australian Solar Sign LB-TTS07 Speed Limit 80 Australian Solar Sign Other countries' special signs Australian solar energy signage LB-TTS10 Attention Pedestrian Australian Solar Sign LB-TTS11 Pedestrian Crossing Australian Solar Sign LB-TTS12 Pedestrian Crossing Australian Solar Sign |
Solar panel | high-efficiency monocrystalline silicon |
Customizable sizes | 600mm, 800mm, 1000mm |
Battery | Lithium battery |
Illumination method | reflective film reflection+LED illumination |
Automatic light control | 100lux-300lux start control, or power off using the switch button |
Charging time | Full charge within 24 hours (under 100000 lux of sunlight) |
Working hours | Can work for more than 7 days in continuous cloudy and rainy weather |
Waterproof grade | P66 (rain proof) |
Blinking frequency | 60 times/minute (customizable) |
Working temperature | -20 ℃ -80 ℃ |
Colors | red, yellow, blue, green, white available |
Life | 5-7 years |
Visible distance | >800m |

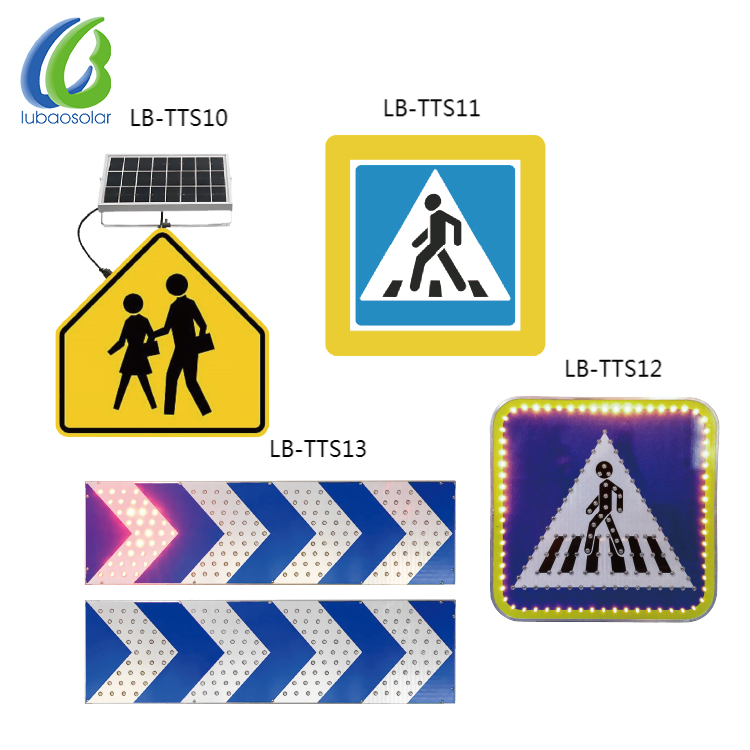

Name | Australian Solar Sign |
Model | LB-TTS10 Attention Pedestrian Australian Solar Sign LB-TTS11 Pedestrian Crossing Australian Solar Sign LB-TTS12 Pedestrian Crossing Australian Solar Sign LB-TTS13 Plane Guide Sign Australian Solar Energy Sign |
Customizable dimensions | 600mm, 1200mm * 400mm, 1600mm * 400mm (customizable irregular signs) |
Solar panel | high-efficiency monocrystalline silicon |
Battery | Lithium battery |
Illumination method | reflective film reflection+LED illumination |
Automatic light control | 100lux-200lux start control, or power off using the switch button |
Charging time | Full charge within 24 hours (under 100000 lux of sunlight) |
Working hours | Can work for over 360 hours in continuous rainy weather |
Blinking frequency | 60 times/minute (customizable) |
Waterproof grade | IP66 (rain proof) |
Working temperature | -20 ℃~80 ℃ |
Life expectancy | 5-7 years |
Colors | red, yellow, blue, green, white available |
Visible distance | >800m |
Video Display
Prodcut Desription
Application
Company Information
You may also like
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
