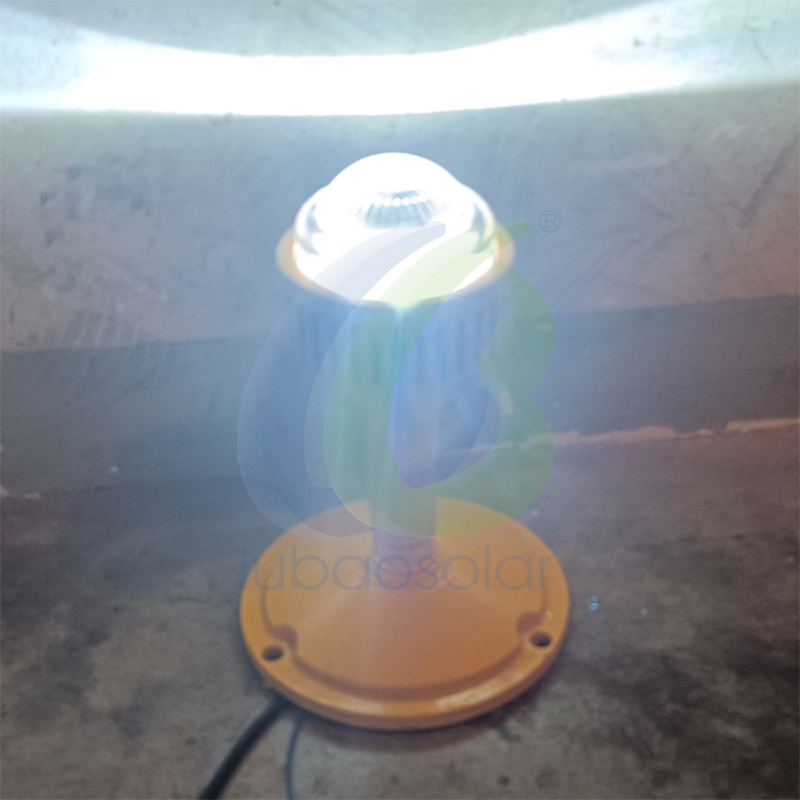

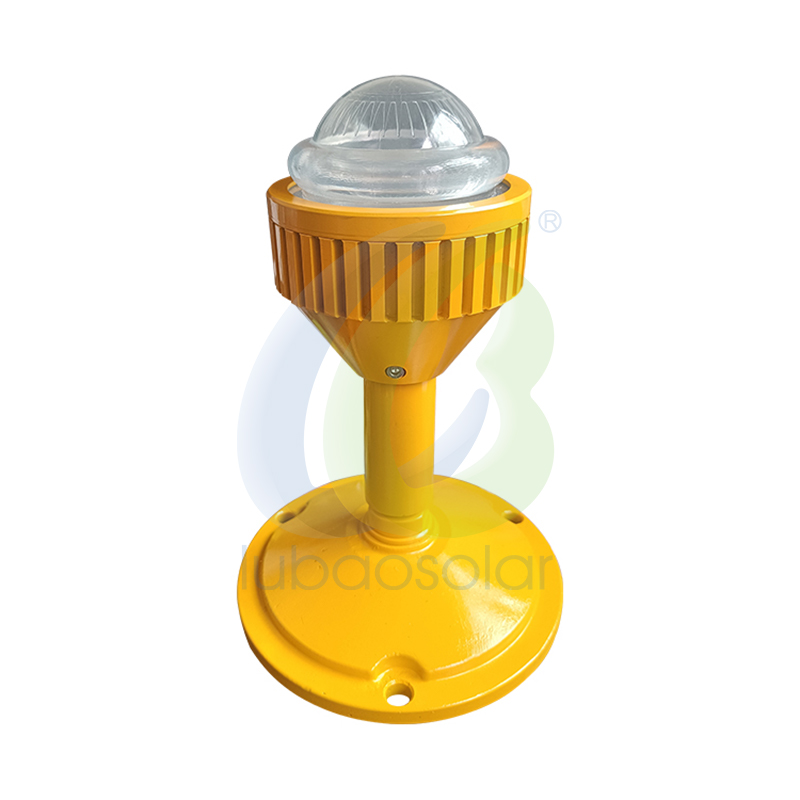

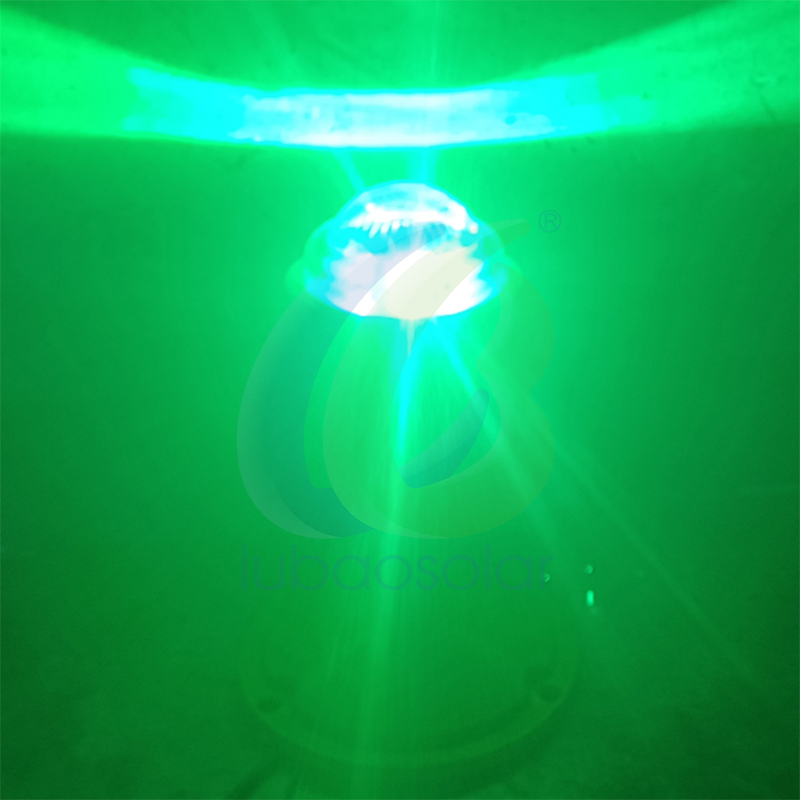

HLPD-2A Airport runway light runway edge lights

The HLPD-2A Airport runway light runway edge lights is used to indicate the boundaries of takeoff and landing areas at airports and aprons. It is equipped with a frangible rod to meet frangibility requirements. The light source utilizes two sets of LEDs (one primary and one standby), which can automatically switch to the standby set in case of primary failure. With five-step dimming controlled by the tower, it adapts to ambient conditions and complies with ICAO and FAA standards.

HLPD-2A Airport runway light runway edge lights-Specifications



• Name: Airport runway light runway edge lights
• Model: HLPD-2A
• Brand name: lubaosolar
• Size: Base Dia.200mm*light shell Dia.120mm*H 285mm
• Rated power: 24VA and 36VA
• Power supply: Constant current 6.6A; 220V optional
• Affordable temperature: -55℃~+55℃
• Light output: Omnidirectional white, or omnidirectional white/yellow
• Applicability:  I, II, and III airports
• Wind resistance strength: 560km/h
• Waterproof: IP66
• Compliance: International Civil Aviation Organization (ICAO) Annex 14, Volume 1, Section 5.3.4 (Fourth Edition, July 2004), as well as the U.S. Federal Aviation Administration (FAA) Advisory Circulars E-982 and AC 150/5354-46B.

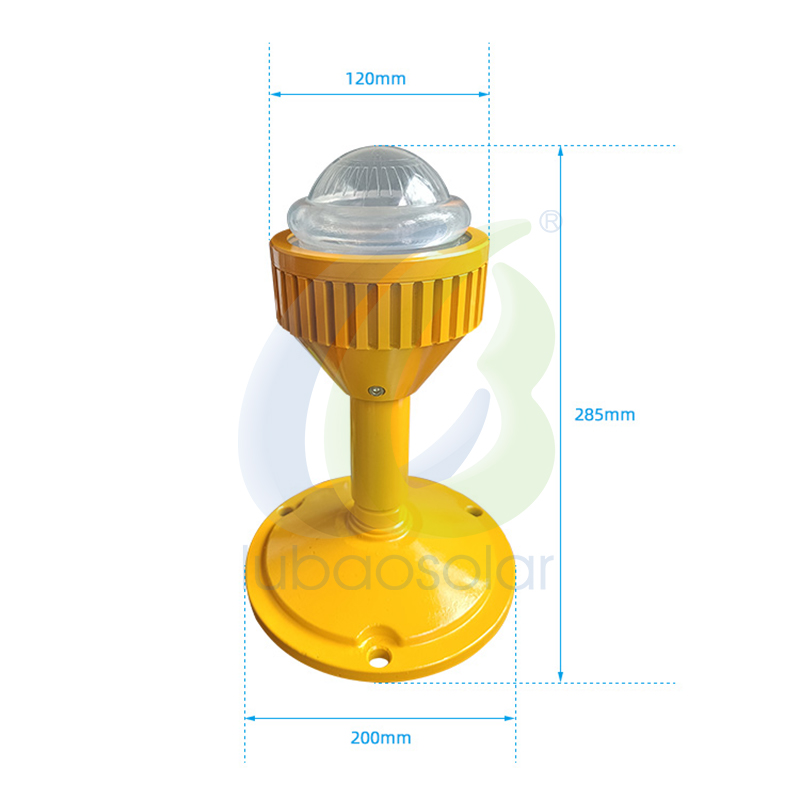

HLPD-2A Airport runway light runway edge lights-Size
