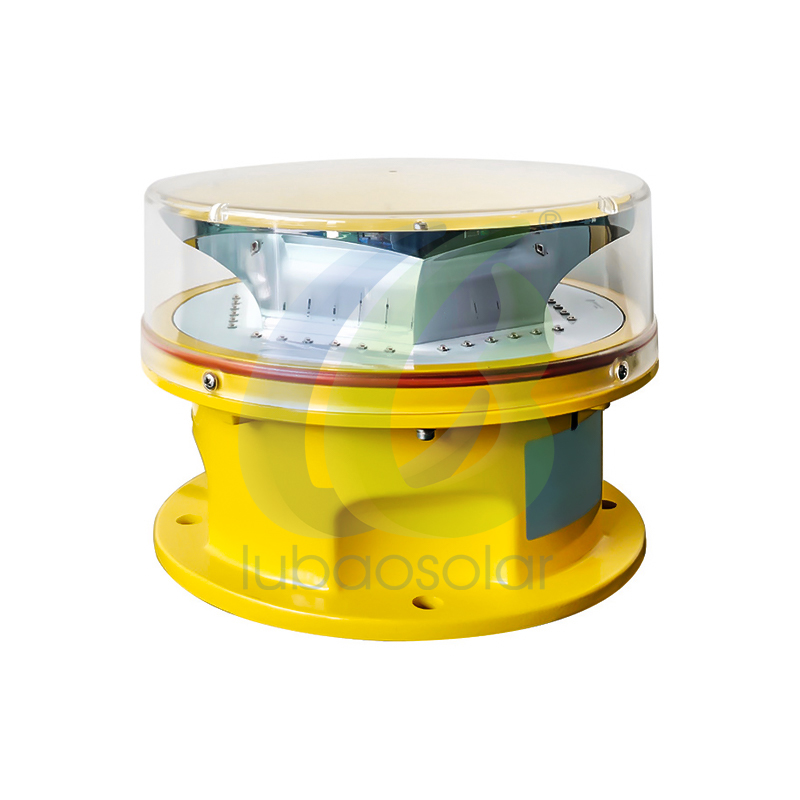

LB-MI-A2 Medium intensity aviation obstruction light for towers

The LB-MI-A2 Medium intensity aviation obstruction light for towers is designed to mark the top of obstacles with a height of more than 105 m. An ultra-high-intensity LED is used as the light source to ensure long service life and reliable performance. A self-designed reflector is used to converge the light, allowing it to achieve the required standard light intensity with lower power consumption.

LB-MI-A2 Medium intensity aviation obstruction light for towers-Specifications

• Name: Medium intensity aviation obstruction light for towers
• Model NO.: LB-MI-A2
• Brand name: lubaosolar
• Beam Angle: Horizontal 360°, Vertical 3°
• Intensity(cd): ≥2000cd(Night), ≥20000cd(Daytime)
• Operation Mode: 24hours operation, 2 different modes
• Operating Voltage: DC(12V, 48VDC) or AC(110-240VAC) or others
• Instantaneous power: 600W
• Flash Characteristics: 20-60FPM - Type A (factory setting: 20FPM)
• Average Power(W): ≤13W (20FPM)
• Material: Body-UV protected Polycarbonate, base-Powder-coated Die-casting aluminum
• Ambient Temperature: -40~55℃
• Storage temperature: -55~70℃
• Humidity: 10%-95%RH(No condensation)
• Wind Speed: 240Km/h
• Waterproof: IP66
• Compliance: ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Seventh edition 2016, table 6.3 Medium-intensity Type A White Obstacle Light, FAA L-865
• Lightning surge: IEC61000-4-5 L- N ±3kV, IEC61000-4-5 L- PE ±6kV, IEC61000-4-5 N- PE ±6kV
• Electrostatic: IEC61000-4-2 Contact discharge 8kV
• Options Available: Flashing rate, NVG(Night Vision Goggles) compatible LED, Dry contact alarm(NO COM NC), RS485 communication, Bird deterrent spike, IOT monitoring

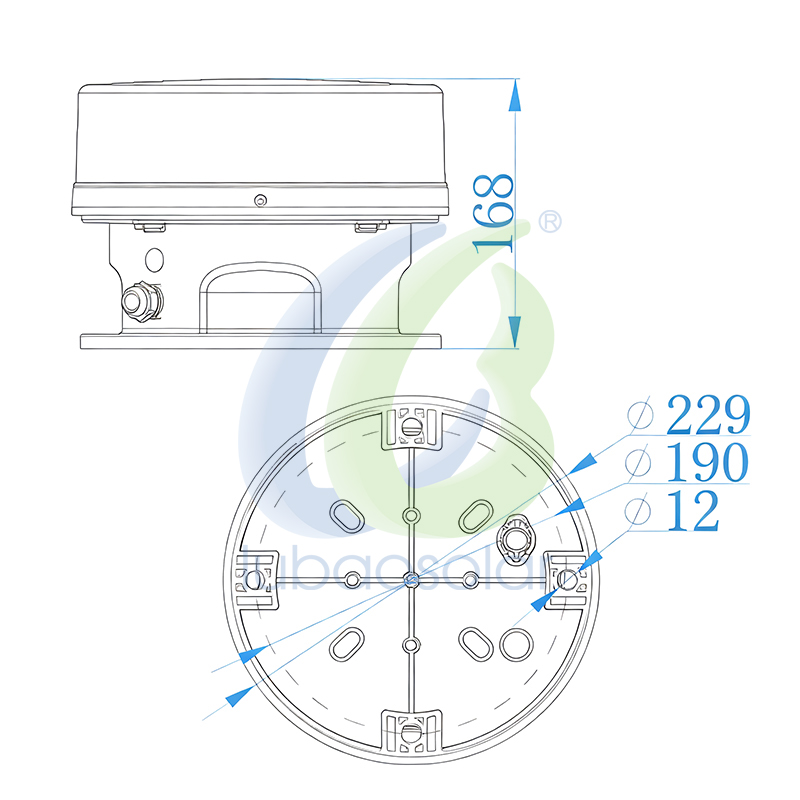

LB-MI-A2 Medium intensity aviation obstruction light for towers-Size

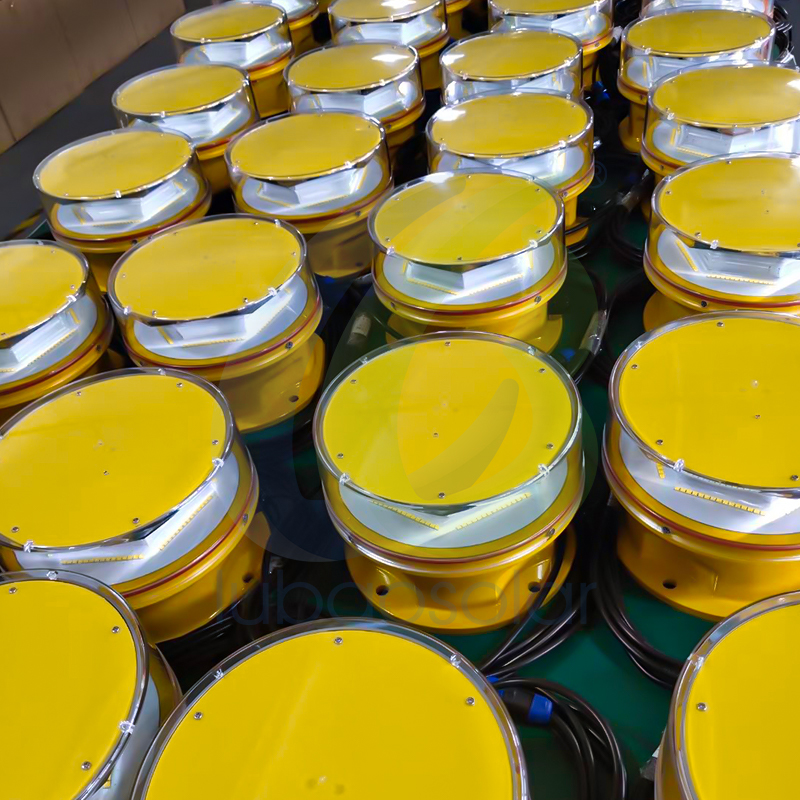

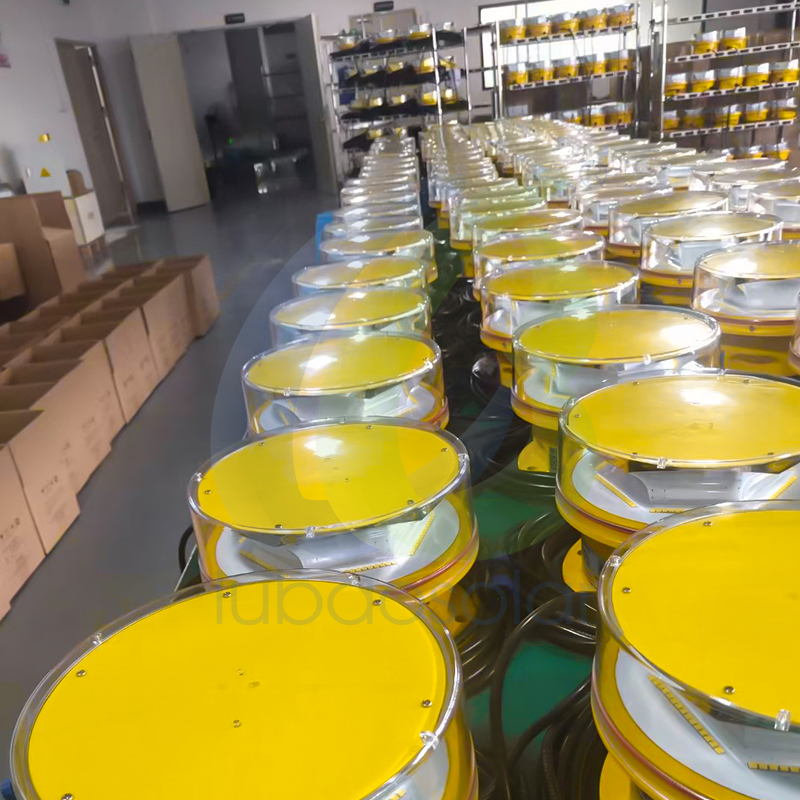

LB-MI-A2 Medium intensity aviation obstruction light for towers-Factory Production

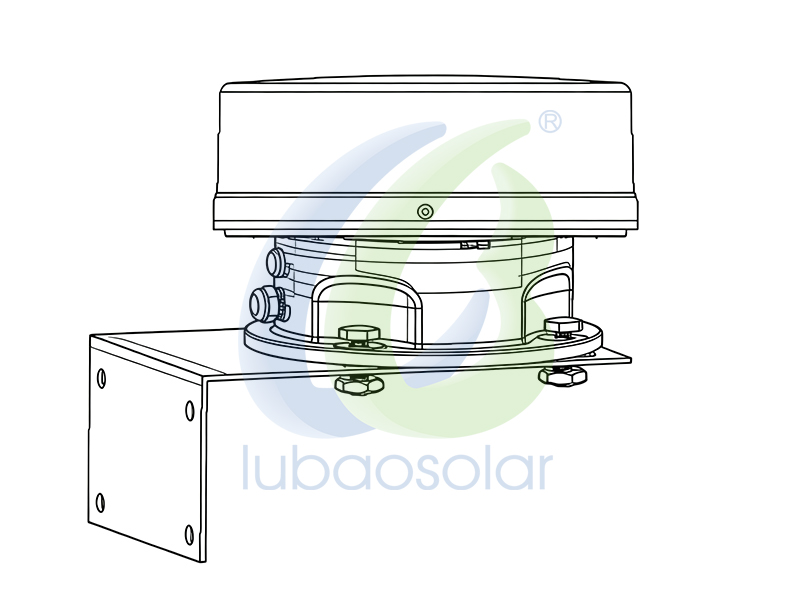

LB-MI-A2 Medium intensity aviation obstruction light for towers-Installation

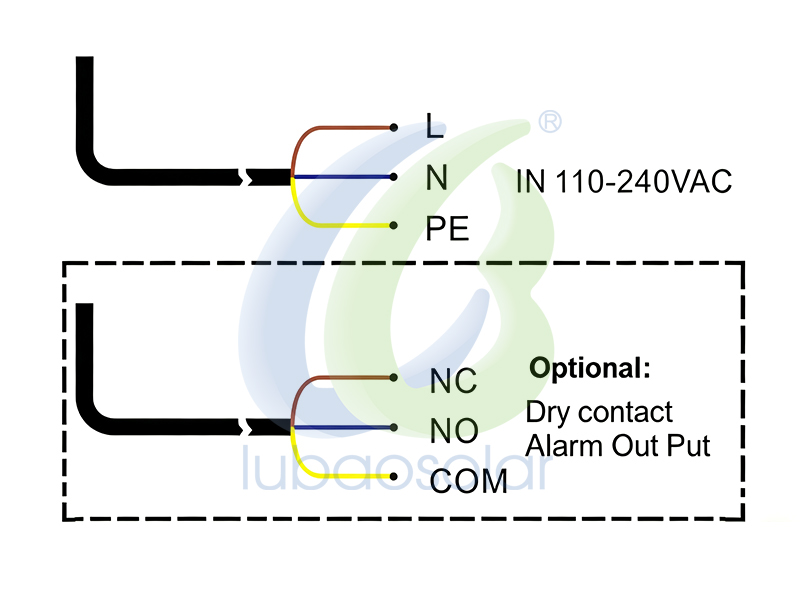

LB-MI-A2 Medium intensity aviation obstruction light for towers-Wiring Configuration
