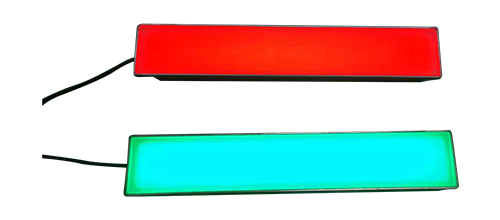

LB-PLRG-36 rectangular floor light for zebra crossing
（Installed between two voice prompt posts, 4-5 are recommended）
Model: LB-PLRG-36 Zebra crossing pedestrian rectangular underground light
Input voltage: DC48V/24v/12V
Power: Red 30W, Green 30W
Chip: wafer
LED quantity: Red 720PCS, Green 720PCS
Color: Red and green
Material: cold-rolled plate + stainless steel
Waterproof: IP68
Reflector: 64mm frosted glass
Angel: 120°
Lumen: Red 1900lm, Green 2400lm
Luminance size: 100*6.4*5.3cm, Weight: 6kg/pcs
Buried frame: 100*7.1*10cm, Weight: 4kg/pcs
Life span: 50000hours
LED bead specification: 505nm green, 625nm red
Specification：
Automatic dimming function: Daytime sunlight is sufficient, zebra crossing pedestrian floor light dimming to the lowest.
At night, the brightness is automatically adjusted to the warning brightness suitable for pedestrian.
Good compression resistance, 10 mm ground tempered glass. (note that the floor light can not be rolled by motor vehicles.)
Anti-skid design
Buried installation, free from digging by snowplow.
IP68 waterproof
Connect pedestrian lights synchronously.

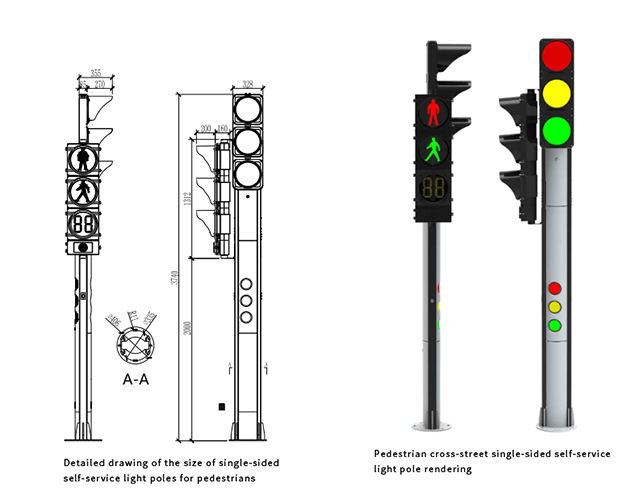

LB-RX300-3-RG Dynamic pedestrian countdown + motor vehicle traffic lights
Two-sided integrated signal machine, with signal controller, beautiful appearance.
LB-RX300-3-RG Dynamic pedestrian countdown + motor vehicle traffic lights
Structural size: 3740MM
Flange size: 400MM
Light group configuration: 3740MM on one side
He traffic signal light is composed of two parts: Dynamic pedestrian countdown+motor vehicle traffic lights.
Independent built-in control system, not connected to the Internet,
can be linked to the zebra crossing ground lights.
Size: 3740MM*400MM, single side
Full screen vehicle traffic lights: JD3033LB
Traffic light 303
Product size: 1124*348*130 mm
Power consumption: ≦ 20 w
LED: 168pcs red, 168pcs green, 168pcs yellow
Working temperature: - 40 ℃ to 80 ℃
Visual distance: ≧800m
Waterproof: IP54
Standard: GB-14887-2011
Operating voltage: AC85-265V
Pedestrian countdown traffic light: FJ3033LB
Traffic light 303
Product size: 1124*348*130 mm
Power consumption: ≦ 20 w
LED: Green 129pcs, Red 80pcs
Countdown: Red 64pcs, Green 64pcs
Working temperature: - 40 ℃ to 80 ℃
Visual distance: ≧800m
Waterproof: IP54
Standard: GB-14887-2011
Operating voltage: AC85-265V
Two side integrated signal machine,intelligent zebra crossing road stud with signal controller linkage

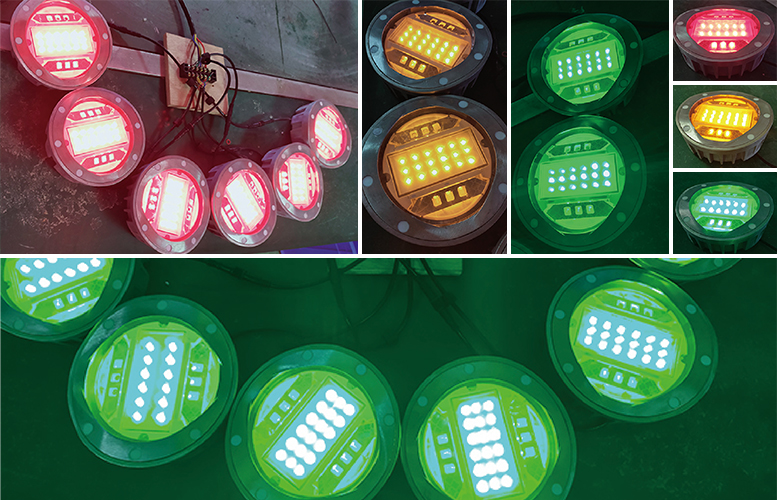

LS-68 Intelligent zebra crossing road stud
Pedestrian underground road stud: Motor vehicle zebra crossing road stud:
Red: flash Red: flash
Green: sequence flash Yellow: strobe flash
Green: sequence flash
Size: Dia145*5cm(5+44.5)
Weight: 1000g±30g
Material: Aluminum+PC
Light source: two-color 5MM, LED bead: red + green 24PCS
Working input voltage: 24V
Installation wire: 2 square 3 core wire is recommended.
Waterproof: IP68

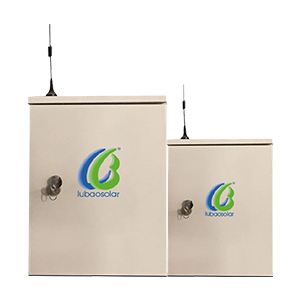

Smart control system
Working voltage: 220V connection
The smart control system is collected the traffic light system signal, same time the signal to the cable road stud.

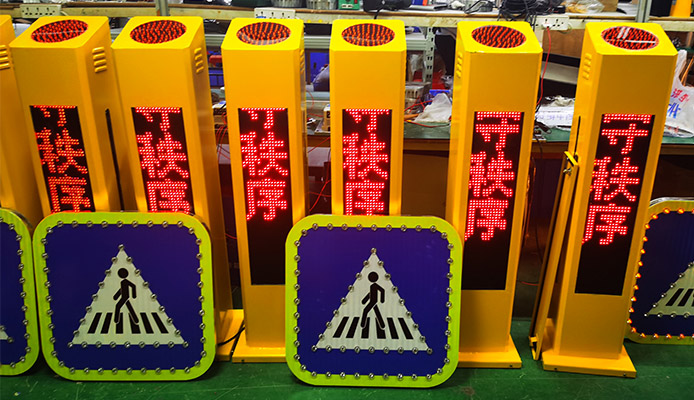

LB-YY Voice prompt column
Working voltage: 220V connection
Size: 1000*180*160mm
Chassis diameter: 300mm
Voice warning broadcast: content can be customized
Color: Yellow, column shows: red, green
The built-in outdoor display P10 infrared sensor can activate voice alerts
Waterproof: IP65
Working temperature: -20℃~55℃
Two set, two root in one set
